Frame Wire: Installation

  1. INSTALL NO. 3 WIRE FRAME (for 2WD)
    1. Install the No. 3 wire frame.

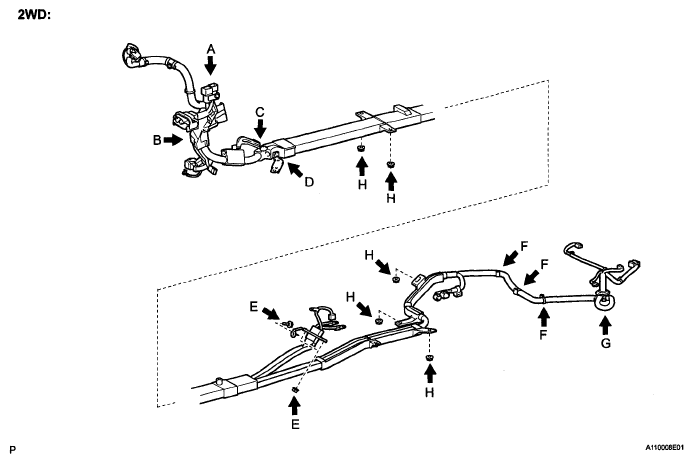

      Fig 1: Locating No. 3 Wire Frame And Nuts
      G05278933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CAUTION: Wear insulating gloves.
      1. Install the No. 3 wire frame with the 5 nuts. (H)

        Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

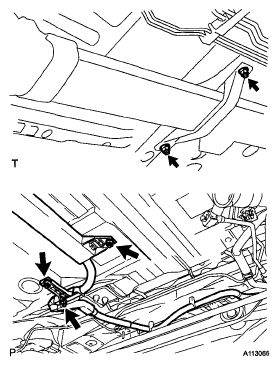

        Fig 2: Locating No. 3 Wire Frame Nuts
        G05278941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Pass the No. 3 wire frame into the cabin and connect the clamp shown in the illustration. (G)
        Fig 3: Identifying No. 3 Wire Frame Clamp
        G05278940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Connect the 3 clamps as shown in the illustration. (F)
        Fig 4: Identifying Clamps (F)
        G05278939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Pass the No. 3 wire frame into the cabin and install the 2 nuts and bolt shown in the illustration. (E)

        Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

        Fig 5: Locating No. 3 Wire Frame Nuts And Bolts
        G05201823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Connect the clamp as shown in the illustration. (D)
        Fig 6: Identifying Clamps (D)
        G05201815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. Connect the clamp as shown in the illustration. (C)
        Fig 7: Identifying Clamps (C)
        G05201814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      7. Connect the 2 clamps as shown in the illustration. (B)
        Fig 8: Identifying Clamps (B)
        G05861176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      8. Connect the 2 connectors and clamp as shown in the illustration. (A)
    Fig 9: Locating Connectors Clamp
    G05201812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 3 WIRE FRAME (for 4WD)
    1. Install the No. 3 wire frame.

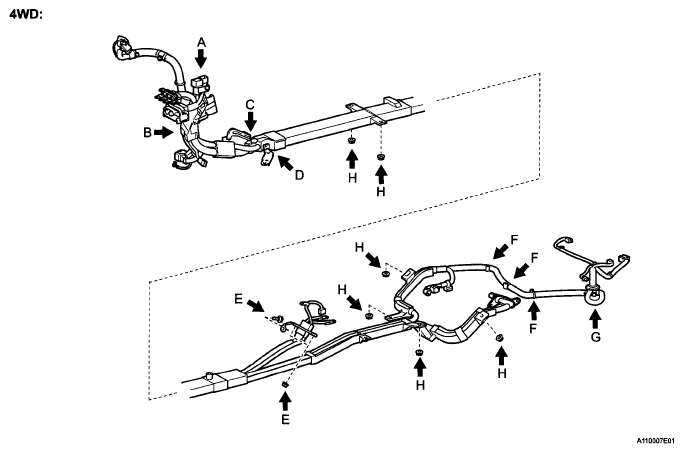

      Fig 10: Identifying No. 3 Wire Frame
      G05278942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CAUTION: Wear insulating gloves.
      1. Install the No. 3 wire frame with the 6 nuts. (H)

        Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

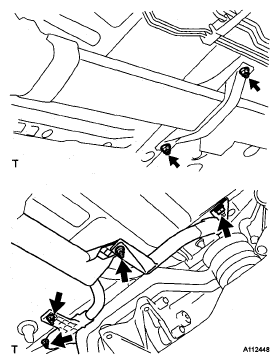

        Fig 11: Locating No. 3 Wire Frame Nuts
        G05278950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Pass the No. 3 wire frame into the cabin and connect the clamp shown in the illustration. (G)
        Fig 12: Identifying No. 3 Wire Frame Clamp
        G05278949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Connect the 3 clamps as shown in the illustration. (F)
        Fig 13: Identifying Clamps
        G05278948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Pass the No. 3 wire frame into the cabin and install the 2 nuts and bolt shown in the illustration. (E)

        Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

        Fig 14: Locating No. 3 Wire Frame Nuts And Bolts
        G05201823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Connect the clamp as shown in the illustration. (D)
        Fig 15: Identifying Clamps
        G05201815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. Connect the clamp as shown in the illustration. (C)
        Fig 16: Identifying Clamps
        G05201814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      7. Connect the 2 clamps as shown in the illustration. (B)
        Fig 17: Identifying Clamps
        G05201813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      8. Connect the 2 connectors and clamp as shown in the illustration. (A)
    Fig 18: Locating Connectors Clamp
    G05201812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL WIRING HARNESS PROTECTOR
    1. Install the wiring harness protector with the 4 nuts.

    Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  4. INSTALL REAR TRACTION W/ TRANSAXLE MOTOR ASSEMBLY (for 4WD)
    CAUTION: Wear insulating gloves.
    Fig 19: Locating Wiring Harness Protector Nuts
    G05201810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the No. 3 wire frame with the 2 nuts to the rear traction w/ transaxle motor assembly.

      Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

      Fig 20: Locating Frame Wire No. 3 Nuts
      G05201272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 connectors and clamp to the rear traction w/ transaxle motor assembly.
  5. CHECK HIGH VOLTAGE CABLE CONNECTION  (See SHIFT LEVER )
  6. REMOVE INVERTER COVER  (See INSTALLATION )
  7. CONNECT W/ CONVERTER INVERTER ASSEMBLY
    CAUTION: Wear insulating gloves.
    Fig 21: Locating Rear Traction W/ Transaxle Motor Assembly Connectors And Clamp
    G05201843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • Make sure that the inverter converter is temporarily installed before working on the converter inverter assembly. (See HYBRID CONTROL SYSTEM )
    • Do not allow any foreign objects or waterdrops to enter the w/ converter inverter assembly.
    1. After connecting the cable, press the lever down to connect the No. 3 wire frame with the bolt to the w/ converter inverter assembly.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      Fig 22: Locating w/ Converter Inverter Assembly Bolt
      G05201758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the No. 3 wire frame (high voltage cable of the rear motor) with the 5 bolts to the w/ converter inverter assembly, (for 4WD)

    Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    NOTE: Make sure that the tightening torque is between 8.0 and 12 N*m {82 to 122 kgf*cm, 6 to 9 ft.*lbf}.
  8. CHECK HIGH VOLTAGE CABLE CONNECTION  (See INSTALLATION )
  9. INSTALL INVERTER COVER  (See INSTALLATION )
  10. INSTALL POWER STEERING ECU BRACKET  (See INSTALLATION )
  11. CONNECT INVERTER RESERVE TANK SUB-ASSEMBLY
    1. Connect the inverter reserve tank with the 2 bolts to the w/ converter inverter assembly.
      2. Fig 23: Locating Inverter Reserve Tank Sub-Assembly Bolts
      G05861191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    Fig 24: Locating Inverter Reserve Tank Sub-Assembly Bolts
    G05201736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL POWER STEERING ECU ASSEMBLY  (See INSTALLATION )
  13. INSTALL INVERTER BRACKET NO. 5  (See INSTALLATION )
  14. INSTALL AIR CLEANER W/RESONATOR  (See INSTALLATION )
  15. INSTALL AIR CLEANER CAP W/INLET  (See INSTALLATION )
  16. INSTALL COOL AIR INTAKE DUCT SEAL  (See INSTALLATION )
  17. INSTALL COWL TOP PANEL SUB-ASSEMBLY OUTER  (See INSTALLATION )
  18. INSTALL WINDSHIELD WIPER LINK ASSEMBLY  (See INSTALLATION )
  19. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
  20. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH  (See INSTALLATION )
  21. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH  (See INSTALLATION )
  22. INSTALL ENGINE ROOM SIDE LH COVER NO. 2  (See INSTALLATION )
  23. CONNECT HYBRID VEHICLE RELAY ASSEMBLY
    CAUTION: Wear insulating gloves.
    1. Connect the No. 3 wire frame with the 2 nuts to the hybrid vehicle relay assembly.
      NOTE:
      • Make sure that the No. 3 wire frame do not cross each other.
      • Be sure to connect the No. 3 wire frame to each correct terminal as shown in the illustration.

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

    2. Connect the No. 3 wire frame connector to the hybrid vehicle relay assembly.
      Fig 25: Locating No. 3 Wire Frame With Nuts
      G05201847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the No. 3 wire frame with the bolt.

    Torque: 8.0 N*m (82 kgf*cm, 80 in.*lbf)

    Fig 26: Locating Frame Wire No. 3 Bolt
    G05201801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. CHECK HIGH VOLTAGE CABLE CONNECTION  (See INSTALLATION )
  25. INSTALL HYBRID VEHICLE BATTERY SERVICE HOLE COVER  (See INSTALLATION )
  26. INSTALL FLOOR CARPET ASSEMBLY FRONT  (See INSTALLATION )
  27. INSTALL AIR INTAKE COVER CENTER  (See INSTALLATION )
  28. INSTALL AIR INTAKE COVER  (See INSTALLATION )
  29. INSTALL REAR SEAT ASSEMBLY LH  (See INSTALLATION )
  30. INSTALL REAR SEAT TRACK BRACKET COVER
  31. INSTALL REAR SEAT ASSEMBLY RH  (See INSTALLATION )
  32. INSTALL REAR SEAT TRACK BRACKET COVER
  33. INSPECT SLIDE ADJUSTER LOCK SIMULTANEOUSLY  (See INSTALLATION )
  34. CONNECT POWER STEERING CONVERTER ASSEMBLY
    1. Connect the 4 connectors and clamp to the power steering converter assembly.
    2. Connect the No. 3 wire frame with the nut to the power steering converter assembly.

    Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

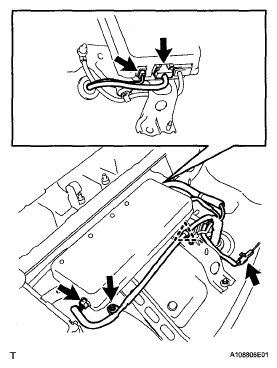

    Fig 27: Locating Power Steering Converter Assembly Nut
    G05278924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. CHECK HIGH VOLTAGE CABLE CONNECTION  (See INSTALLATION )
  36. INSTALL POWER STEERING CONVERTER COVER  (See INSTALLATION )
  37. INSTALL DECK BOARD CHECK NO. 1  (See INSTALLATION )
  38. INSTALL DECK SIDE TRIM BOX RH  (See INSTALLATION )
  39. INSTALL DECK SIDE TRIM BOX LH  (See INSTALLATION )
  40. INSTALL DECK BOARD SUB-ASSEMBLY NO. 2  (See INSTALLATION )
  41. INSTALL DECK BOARD SUB-ASSEMBLY NO. 3  (See INSTALLATION )
  42. INSTALL DECK FLOOR BOX FRONT  (See INSTALLATION )
  43. INSTALL REAR FLOOR FINISH PLATE  (See INSTALLATION )
  44. INSTALL DECK FLOOR BOX REAR  (See INSTALLATION )
  45. INSTALL DECK BOARD SUB-ASSEMBLY  (See INSTALLATION )
  46. INSTALL SERVICE PLUG GRIP  (See INSTALLATION )
  47. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  48. PERFORM INITIALIZATION

Some systems need initialization when disconnecting the cable from the negative battery terminal. (See INITIALIZATION )
