Rear Circuit Breaker Sensor: Components

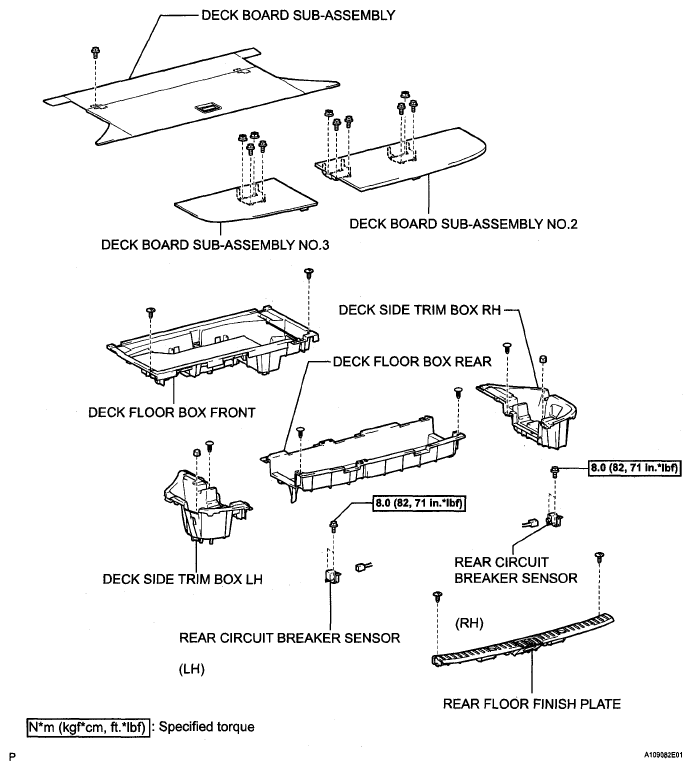

Fig 1: Rear Circuit Breaker Sensor Replacement Components With Torque Specifications
G05278987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
