Sub Radiator: Installation

INSTALL RADIATOR ASSEMBLY
1. Install the radiator assembly with the 4 bolts to the cooler condenser assembly.
  Torque: 5.0 N*m (51 kgf*cm, 44 ft.*lbf)

  Fig 1: Locating Radiator Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 water hoses with the 2 clamps to the radiator assembly.

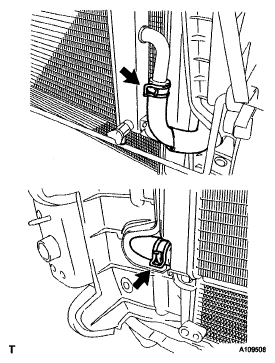

Fig 2: Locating Radiator Assembly Clamps
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD LOCK SUPPORT SUB-ASSEMBLY
1. Install the hood lock support sub-assembly with the bolt.
Torque: 7.0 N*m (71 kgf*cm, 62 ft.*lbf)
INSTALL RADIATOR SUPPORT SUB-ASSEMBLY UPPER (See INSTALLATION )
INSTALL HOOD LOCK ASSEMBLY (See INSTALLATION )
INSTALL AIR CLEANER CAP W/INLET (See INSTALLATION )
INSTALL COOL AIR INTAKE DUCT SEAL (See INSTALLATION )
INSTALL FRONT BUMPER REINFORCEMENT (See REASSEMBLY )
INSTALL FRONT BUMPER ENERGY ABSORBER
INSTALL FRONT BUMPER COVER
INSTALL FRONT BUMPER STAY CENTER
INSPECT HOOD SUB-ASSEMBLY (See ADJUSTMENT )
ADJUST HOOD SUB-ASSEMBLY (See ADJUSTMENT )
ADD COOLANT (for Inverter) (See REPLACEMENT )
INSPECT FOR COOLANT LEAK (for Inverter)
INSTALL ENGINE ROOM SIDE LH COVER NO. 2 (See INSTALLATION )
