Navigation Antenna: Components

Fig 1: Navigation Antenna Replacement Components With Torque Specifications (1 Of 2)
G00469010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

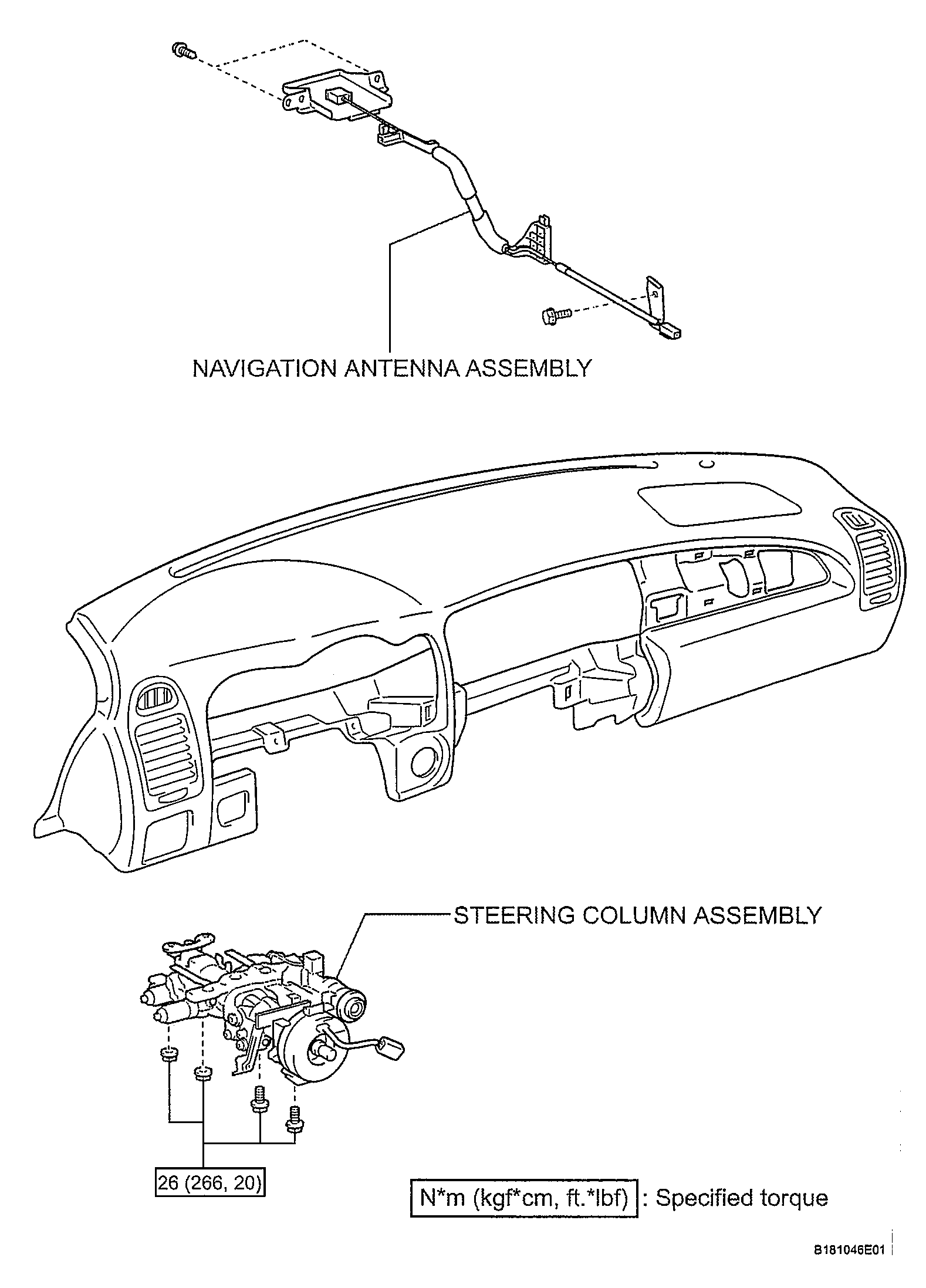

Fig 2: Navigation Antenna Replacement Components With Torque Specifications (2 Of 2)
G00469011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
