Front Bumper: Components

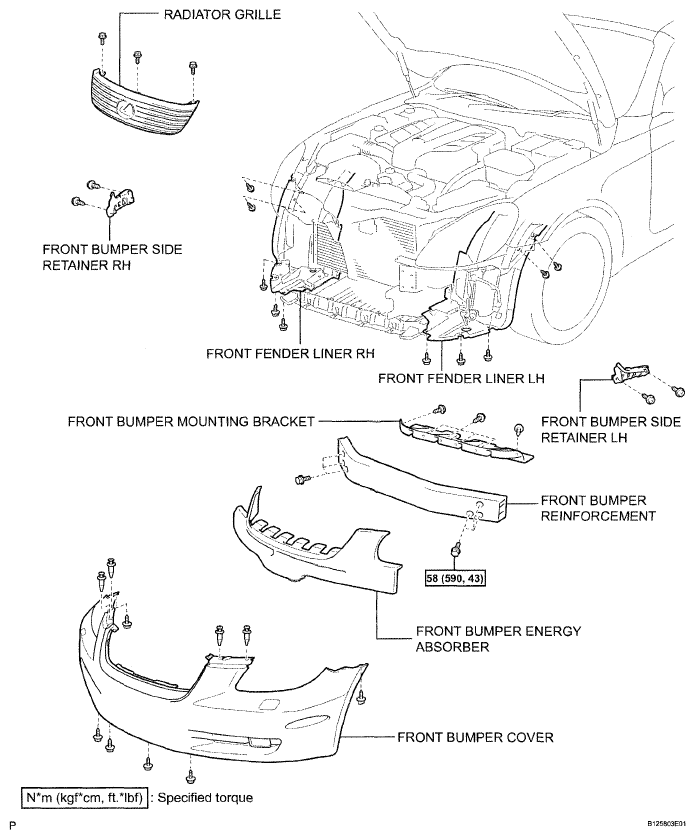

Fig 1: Identifying Front Bumper Replacement Components With Torque Specification (1 Of 2)
G05293921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

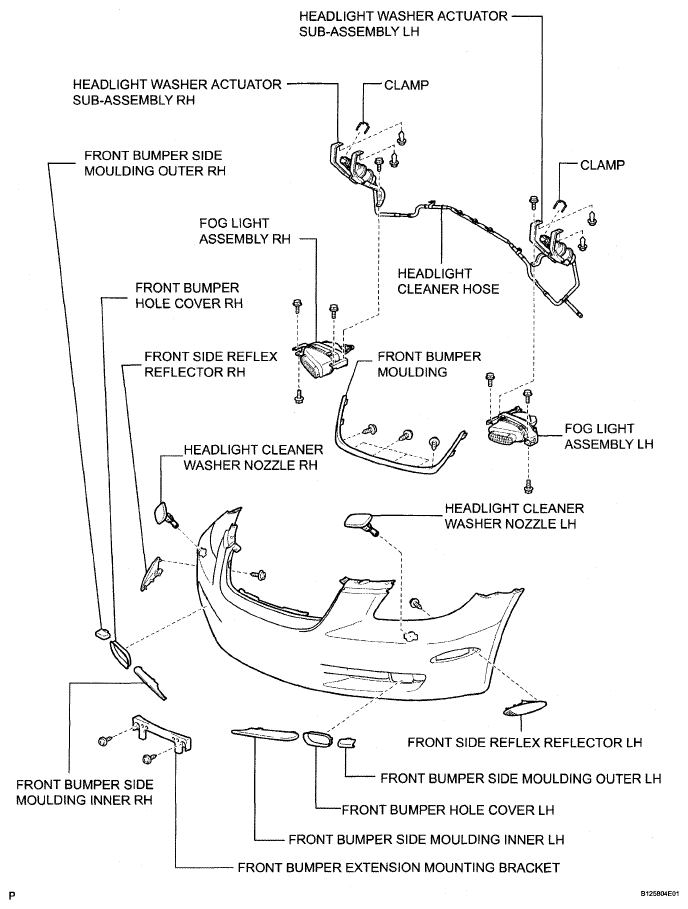

Fig 2: Identifying Front Bumper Replacement Components With Torque Specification (2 Of 2)
G05293922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
