Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control
>>
Vehicle Stability Control System
>>
Brake Warning Light Circuit
>>
Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Brake Warning Light Circuit: Wiring Diagram

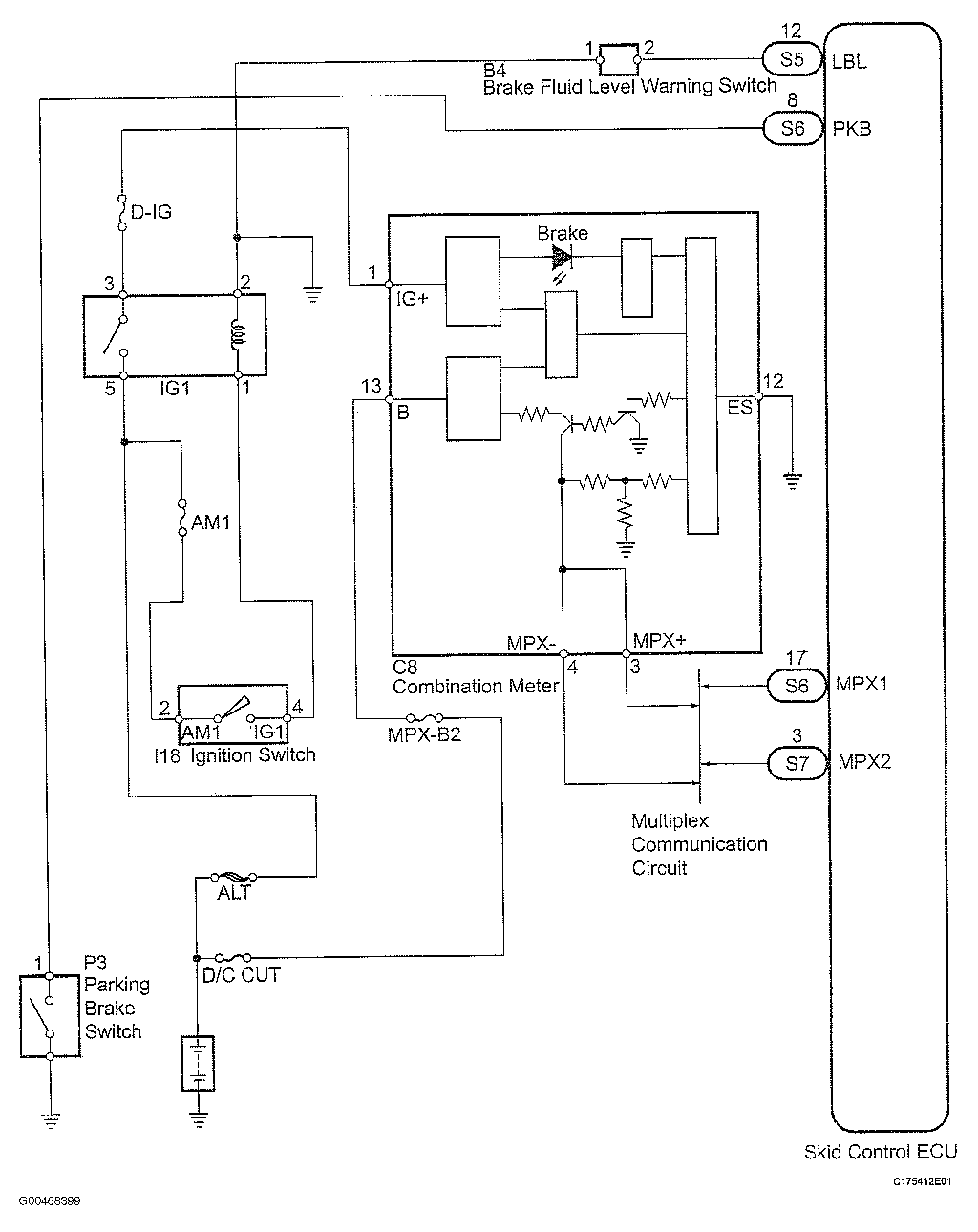

Fig 1: Brake Warning Light Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
