Key Lock-in Prevention Function does not Work Properly: Wiring Diagram

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

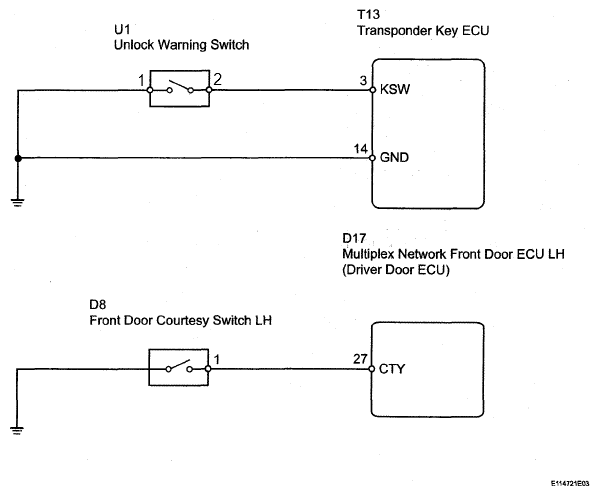

Fig 1: Key Lock-In Prevention Function Does Not Work Properly - Wiring Diagram
G05292885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
