Roof Panel Link: Installation

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL SLIDE ROOF LIMIT SWITCH
    1. Install the limit switch with the 2 screws.

      HINT:

      Install the white tape side of the limit switch (with wire harness) so that it is inside the vehicle.

      Fig 1: Identifying Screws And Limit Switch
      G05294278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL SLIDING ROOF DRIVE GEAR ASSEMBLY RH
    1. Install the drive gear with the 3 bolts.

      Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

      Fig 2: Identifying Drive Gear And Bolts
      G05294279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. TEMPORARILY TIGHTEN ROOF PANEL LINK SUB-ASSEMBLY RH
    1. Temporarily install the shims and roof panel link with the 2 screws and nut.

      HINT:

      • Use the shims stored during removal.
      • The number of shims is changeable depending on the situation.
    2. Connect the connector.
      Fig 3: Identifying Shims And Roof Panel Link
      G05294280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REAR ROOF SIDE RAIL GARNISH RH
    1. Connect the cable and tighten the nut.

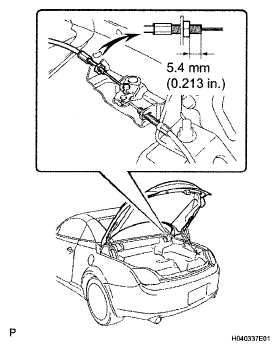

      Fig 4: Identifying Cable And Nut
      G05294281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    2. Attach the claw and install the garnish with the 3 screws.
  5. INSTALL BACK WINDOW FRAME SUB-ASSEMBLY UPPER (See  INSTALLATION   )
  6. INSTALL REAR ROOF HEADLINING ASSEMBLY (See  INSTALLATION   )
  7. INSTALL ROOF SIDE GARNISH INNER RH (See  INSTALLATION   )
  8. INSTALL ROOF SIDE GARNISH INNER LH (See  INSTALLATION   )
  9. INSTALL REMOVABLE ROOF PANEL SUB-ASSEMBLY (See  INSTALLATION   )
  10. INSTALL REMOVABLE ROOF HEADLINING ASSEMBLY (See  INSTALLATION   )
  11. INSTALL ROOF SIDE RAIL GARNISH ASSEMBLY RH (See  INSTALLATION   )
  12. INSTALL ROOF SIDE RAIL GARNISH ASSEMBLY LH (See  INSTALLATION   )
  13. ADJUST ROOF LINE
    NOTE: In order to prevent the roofs rear side from rising when driving at a high speed, adjustment of the roof panel link sub-assembly adjusting screw is necessary. Be sure to perform the following adjustment procedure.
    1. Using a T40 "TORX" driver, remove the stopper cushion from the roof panel link.
    2. Using a hexagon wrench, loosen the screw. Adjust the protrusion of the roof panel link adjusting screw (labeled A).

      Protrusion:

      8 mm (0.31 in.)

      Fig 5: Identifying Roof Panel Link Adjusting Screw
      G05294282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

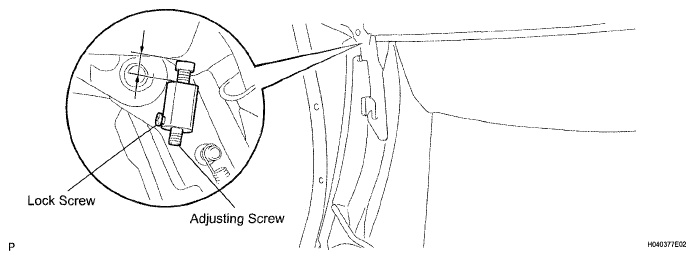

      Fig 6: Identifying Lock Screw And Adjusting Screw
      G05294283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Close the roof by its own weight several times from the half open position.
      Fig 7: Closing Roof
      G05294284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Close the roof by its own weight from the half open position and place SST without locking the roof.

      SST 09802-00010

      HINT:

      • Place SST so that it does not contact with the roof panel.
      • Place SST in alignment with line A, which is between the body panel and quarter window molding.

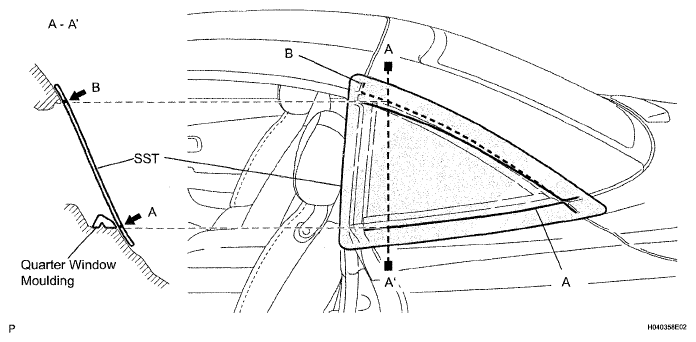

        Fig 8: Identifying Quarter Window Molding
        G05294285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Check that line B on the upper part of SST aligns with the roof line.

      HINT:

      • When the roof line is not aligned with SST line B in the longitudinal direction, adjust the roof panel link sub-assembly forward or backward to align the roof line with SST reference line.
      • When the roof line is not aligned with SST reference dot line B in the vertical direction, adjust either by turning the adjusting screw or with roof panel link sub-assembly shims. After adjustment, close the roof by its own weight several times from the half open position and confirm the alignment.
    6. Using a hexagon wrench, tighten the roof panel link with the 2 screws.

      Torque: 41 N*m (418 kgf*cm, 30 ft.*lbf)

      Fig 9: Adjusting Roof Line
      G05294286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Close the roof by its own weight from the half open position.
      Fig 10: Closing Roof
      G05294287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Measure the retract amount of the roof lock.
      1. Close the roof by its own weight from the half open position. Measure the distance A between the front header and roof panel at the point where the roof stops without locking.

        HINT:

        • Measure the retract amount without contact with the roof panel.
        • Mark the point at which the measurement was performed.
          Fig 11: Identifying Roof Lock Unlocked
          G05294288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Lock the roof and measure the distance B between the front header and roof panel.

        HINT:

        Measure at the same point as in the previous step.

        C (Retract amount of roof lock) = A - B

        Fig 12: Identifying Roof Lock Locked
        G05294289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Fig 13: Identifying Roof Lock Clearance
        G05294290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Adjust the removable roof auxiliary catch assembly.
      1. Using a T30 "TORX" socket, adjust the removable roof auxiliary catch assembly to mark C within the specified value.

        Standard value:

        C = 3.5 +-1 mm (0.14 +-0.04 in.)

        If C is not as specified, adjust the catch by turning the adjusting screw.

    10. Place SST and check that reference line B at the upper part of SST aligns approximately with the roof line.

      SST 09802-00010

      Fig 14: Adjusting Removable Roof Auxiliary Catch Assembly
      G05294291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

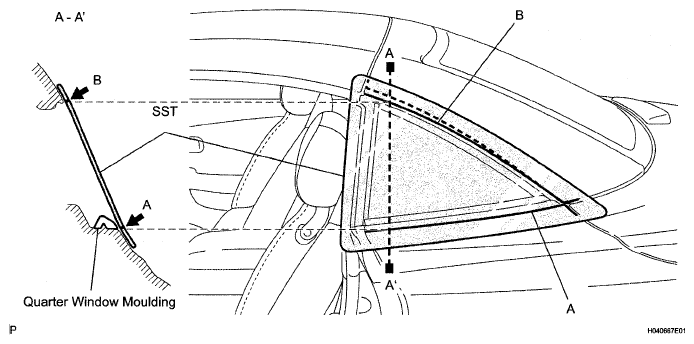

      Fig 15: Identifying Quarter Window Molding
      G05294292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Depending on the vehicle condition, the roof line may not align with the SST reference line B.

    11. Check the installation condition.

      If necessary, repeat the adjustment.

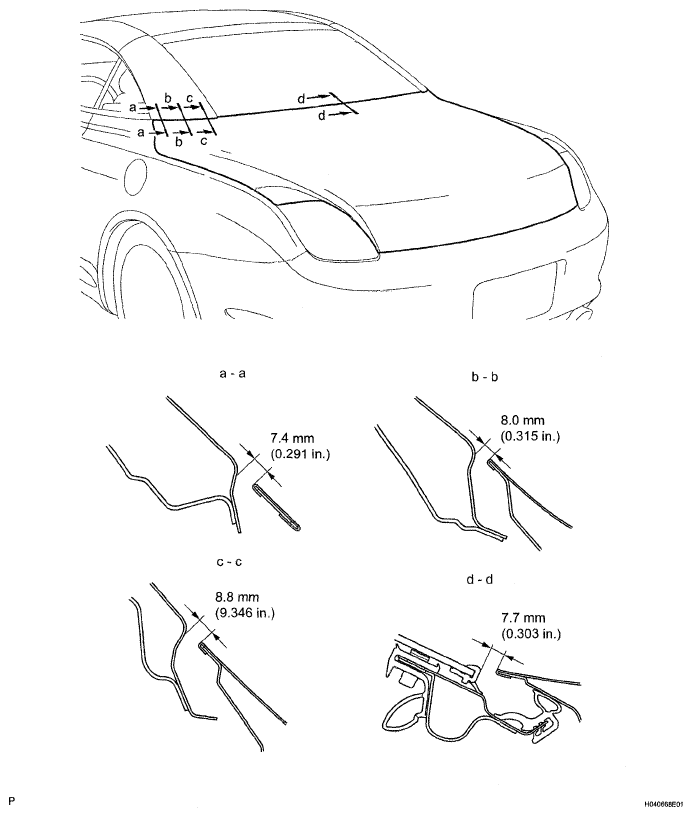

      Fig 16: Identifying Roof Line Clearance
      G05294293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL PACKAGE TRAY TRIM ASSEMBLY (See  INSTALLATION   )
  15. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY RH (See  INSTALLATION   )
  16. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY LH (See  INSTALLATION   )
  17. INSTALL DOOR SCUFF PLATE ASSEMBLY RH (See  INSTALLATION   )
  18. INSTALL DOOR SCUFF PLATE ASSEMBLY LH (See  INSTALLATION   )
  19. INSTALL REAR SEATBACK BOARD (See  INSTALLATION  )
  20. INSTALL REAR SEATBACK ASSEMBLY (See  DISASSEMBLY  )
  21. INSTALL REAR SEAT HEADREST ASSEMBLY (See  DISASSEMBLY  )
  22. INSTALL REAR SEAT HEADREST PLATE (See  INSTALLATION  )
  23. INSTALL WIND DEFLECTOR BOARD ASSEMBLY (See  INSTALLATION  )
  24. INSTALL REAR SEAT HEADREST PLATE COVER (See  INSTALLATION  )
  25. INSTALL REAR SEAT CUSHION ASSEMBLY (See  INSTALLATION  )
  26. INSTALL LUGGAGE COMPARTMENT TRIM COVER SIDE RH
    1. Attach the claw labeled A and claw labeled B to install the trim cover.
    2. Install the 4 clips.

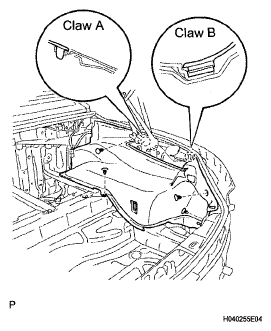

      Fig 17: Identifying Claw Labeled A And Claw Labeled B
      G05294294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL DOOR INSIDE HANDLE BEZEL
    1. Attach the 4 claws to install the bezel.
  28. INSTALL LUGGAGE COMPARTMENT TRIM COVER SIDE LH

    HINT:

    Use the same procedures described for the RH side.

  29. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
    1. Install the luggage compartment light and connect the connector.
    2. Attach the 2 claws to install the cover.
      Fig 18: Identifying Claws And Cover
      G05294295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
    1. Install the front luggage compartment trim cover with the 4 clips.
      Fig 19: Identifying Front Luggage Compartment Trim Cover And Clips
      G05294296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 4 clips.

      HINT:

      Use the same procedures described for the other side.

      Fig 20: Identifying Clips
      G05294297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL REAR FLOOR FINISH SIDE PLATE RH
    1. Attach the 2 claws to install the side plate.
      Fig 21: Identifying Claws And Side Plate
      G05294298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL REAR FLOOR FINISH SIDE PLATE LH

    HINT:

    Use the same procedures described for the RH side.

  33. INSTALL LUGGAGE COMPARTMENT TRIM COVER INNER LOWER
    1. Install the trim cover with 6 clips.
      Fig 22: Identifying Trim Cover And Clips
      G05294299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL TONNEAU COVER ASSEMBLY
    1. Install the tonneau cover with the 2 covers and 2 nuts.
      Fig 23: Identifying Tonneau Cover With Covers And Nuts
      G05294300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL TONNEAU COVER STOPPER SUB-ASSEMBLY RH
    1. Install the tonneau cover stopper with the 2 bolts.
    2. Using a T40 "TORX" socket wrench, install the screw.
    3. Install the 2 covers.
    4. Install the guide rail stopper.
      Fig 24: Identifying Guide Rail Stopper And Cover
      G05294301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL TONNEAU COVER STOPPER SUB-ASSEMBLY LH

    HINT:

    Use the same procedures described for the RH side.

  37. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY
    1. Install the trim cover with the 4 clips.
      Fig 25: Identifying Trim Cover And Clips
      G05294302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY
    1. Install the strikers with the 2 bolts.
      Fig 26: Identifying Strikers And Bolts
      G05294303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL TOOL BOX COVER
  40. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH
    1. Install the trim cover with the 3 clips.
      Fig 27: Identifying Trim Cover And Clips
      G05294304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH

    HINT:

    Use the same procedures described for the RH side.

  42. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
  43. INSTALL SPARE WHEEL COVER ASSEMBLY
  44. INSTALL REAR FLOOR FINISH PLATE
    1. Attach the 4 clips to install the finish plate.
      Fig 28: Identifying Clips And Finish Plate
      G05294305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  46. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
