Installation

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH:

INSTALLATION

1. INSTALL CRUISE CONTROL MAIN SWITCH

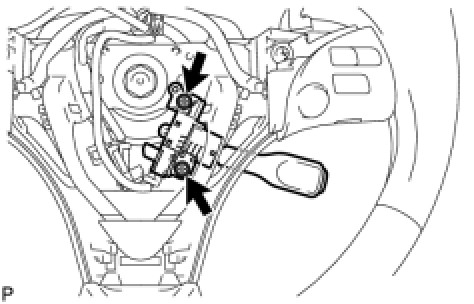

(a) Install the cruise control main switch with the 2 screws.
Torque: 2.4 Nm (24 kgf-cm, 21 in-lbf)
(b) Connect the connector.
2. INSTALL STEERING PAD Installation
3. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation
4. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. INSPECT STEERING PAD Installation
7. INSPECT SRS WARNING LIGHT Diagnosis System

8. PERFORM INITIALIZATION
NOTE:
Some systems need initialization after reconnecting the cable to the negative battery terminal Repair Instruction - Initialization.
