Customize Parameters








LIGHTING: LIGHTING SYSTEM: CUSTOMIZE PARAMETERS

CUSTOMIZE PARAMETERS
NOTICE:
- Before attempting to customize vehicle settings, confirm whether it is possible to make the change that the customer has requested.
- Be sure to record the current value before customizing.
- In case of performing the troubleshooting, pay attention because there is a possibility that the function has been disabled by customizing. (Example: In case of the symptom in which "The wireless operation does not function", check that the wireless operation has not been disabled by customizing, then perform the troubleshooting.)

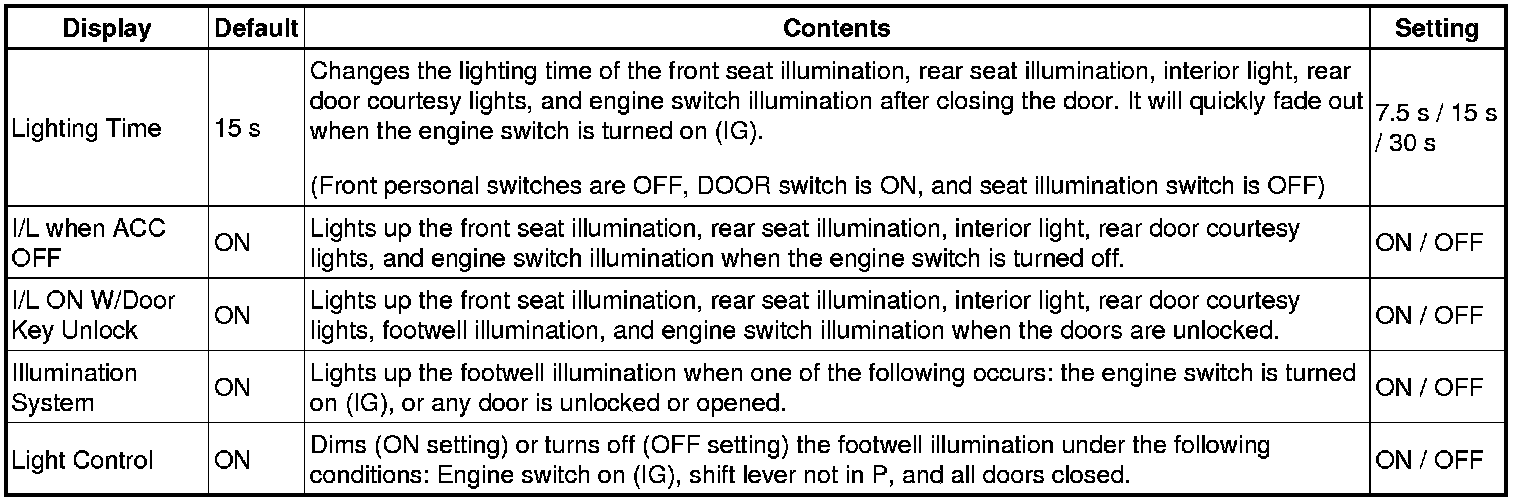

Illuminated Entry:

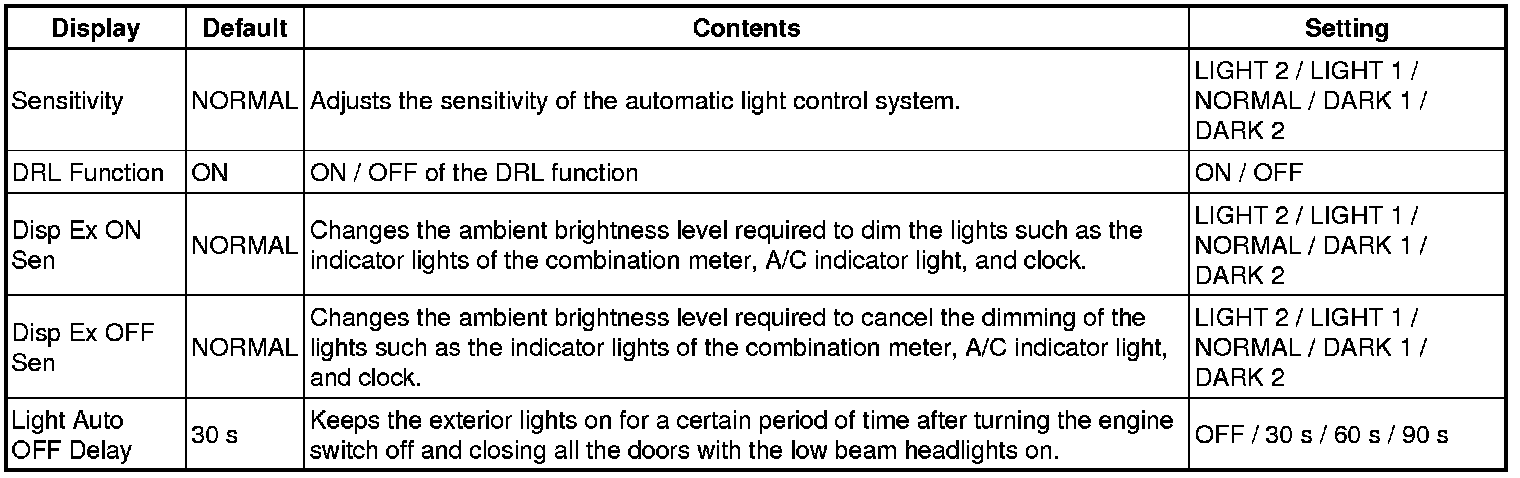

Light Control:
