2GR-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR:

INSTALLATION

1. INSTALL CRANKSHAFT POSITION SENSOR
(a) Apply a light coat of engine oil to the O-ring of the crankshaft position sensor.





(b) Install the crankshaft position sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)

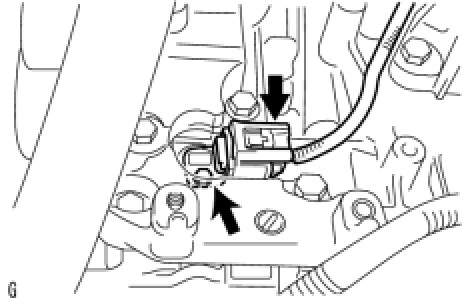

(c) Connect the crankshaft position sensor connector.
2. INSTALL COOLER COMPRESSOR ASSEMBLY
HINT: Installation

3. INSTALL GENERATOR ASSEMBLY
HINT: Installation
