ABS, TRAC, VSC, Downhill Assist Control and Hill-Start Assist Control: Notes

WARNING: This page is about a different car, the 2008 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

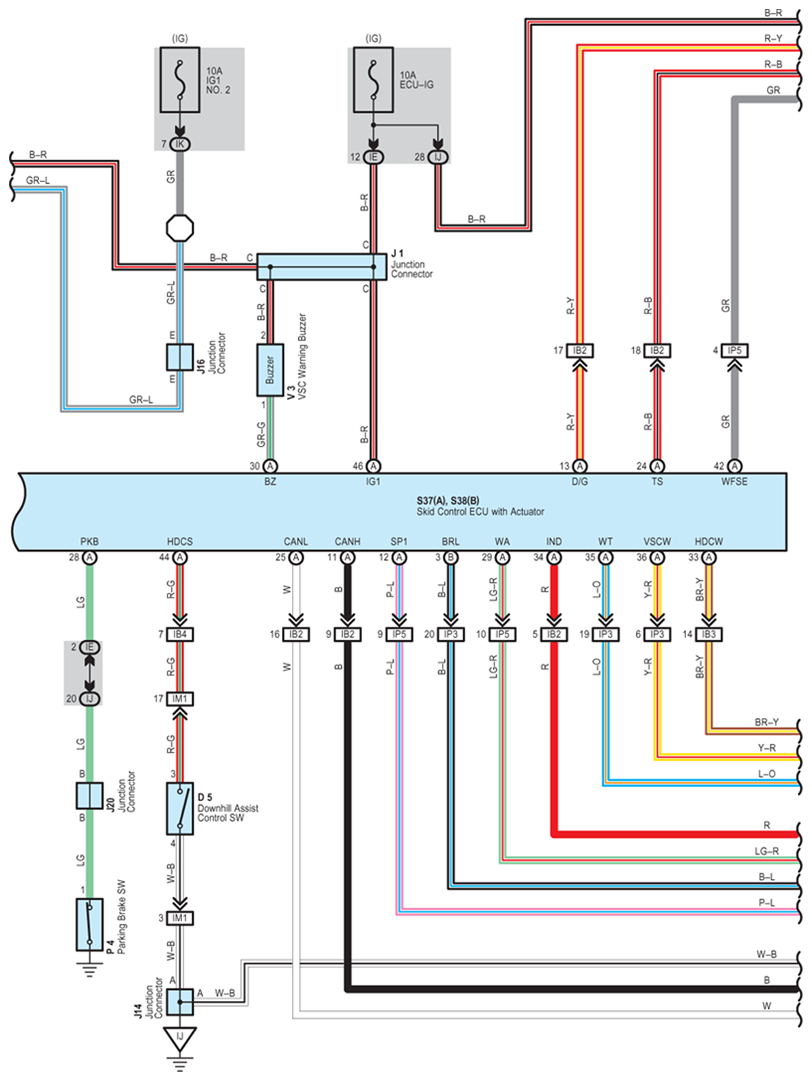

Fig 1: ABS, TRAC, VSC, Downhill Assist Control And Hill-Start Assist Control - Circuit Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

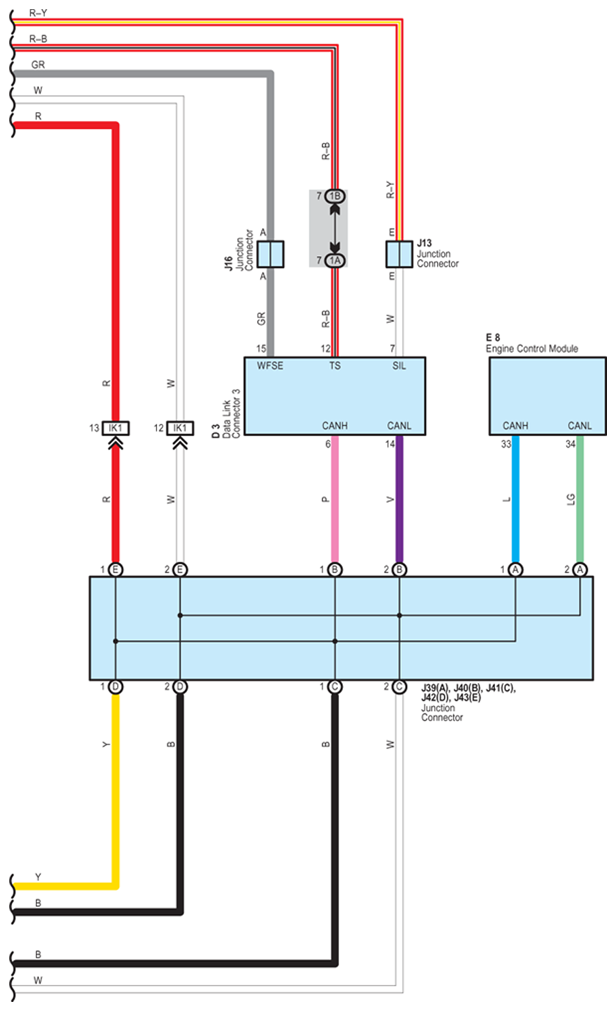

Fig 2: ABS, TRAC, VSC, Downhill Assist Control And Hill-Start Assist Control - Circuit Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

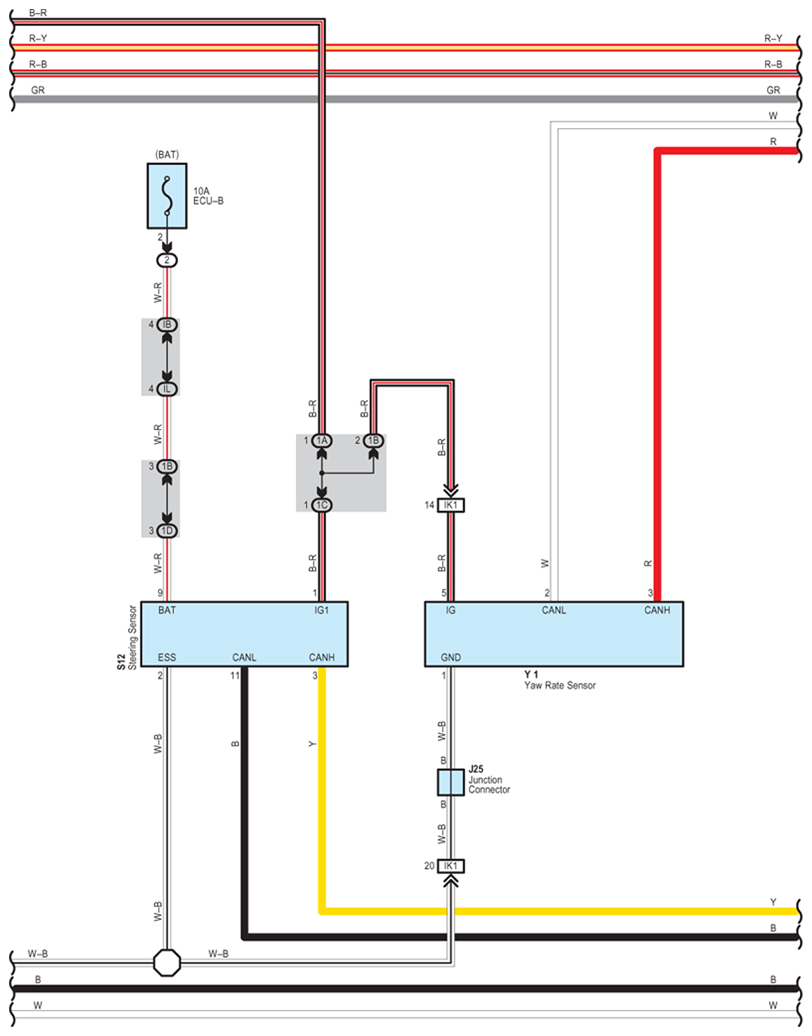

Fig 3: ABS, TRAC, VSC, Downhill Assist Control And Hill-Start Assist Control - Circuit Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

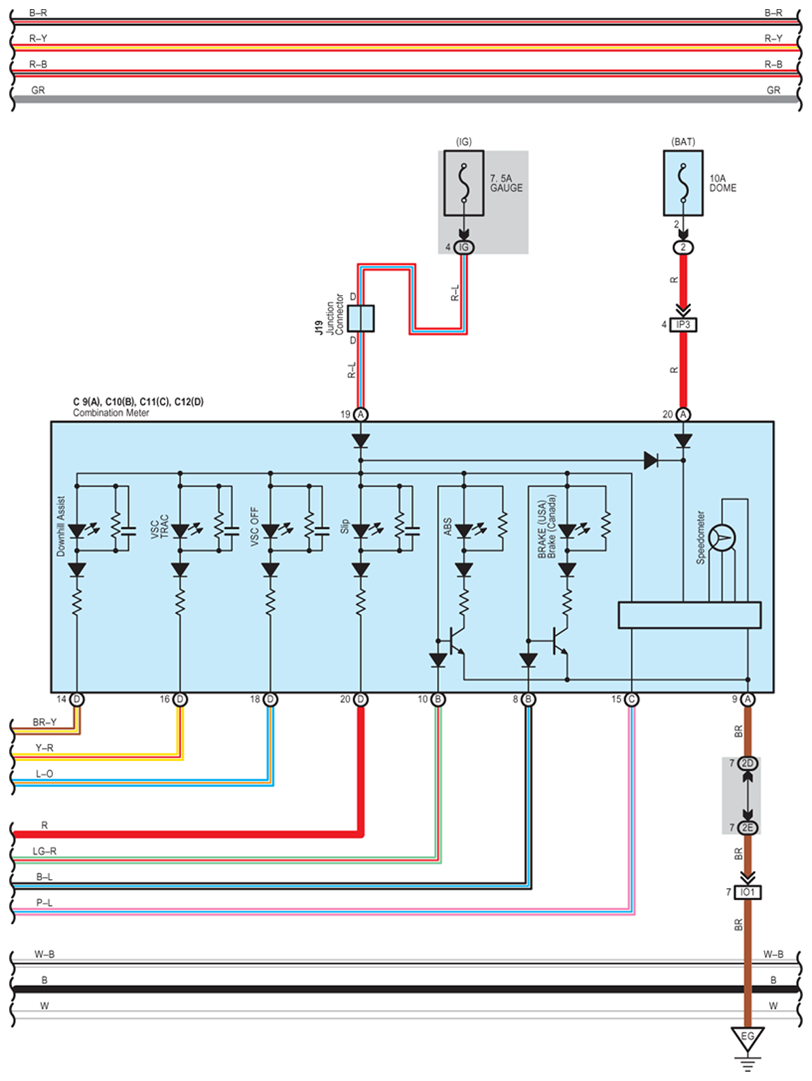

Fig 4: ABS, TRAC, VSC, Downhill Assist Control And Hill-Start Assist Control - Circuit Diagram (4 Of 6)

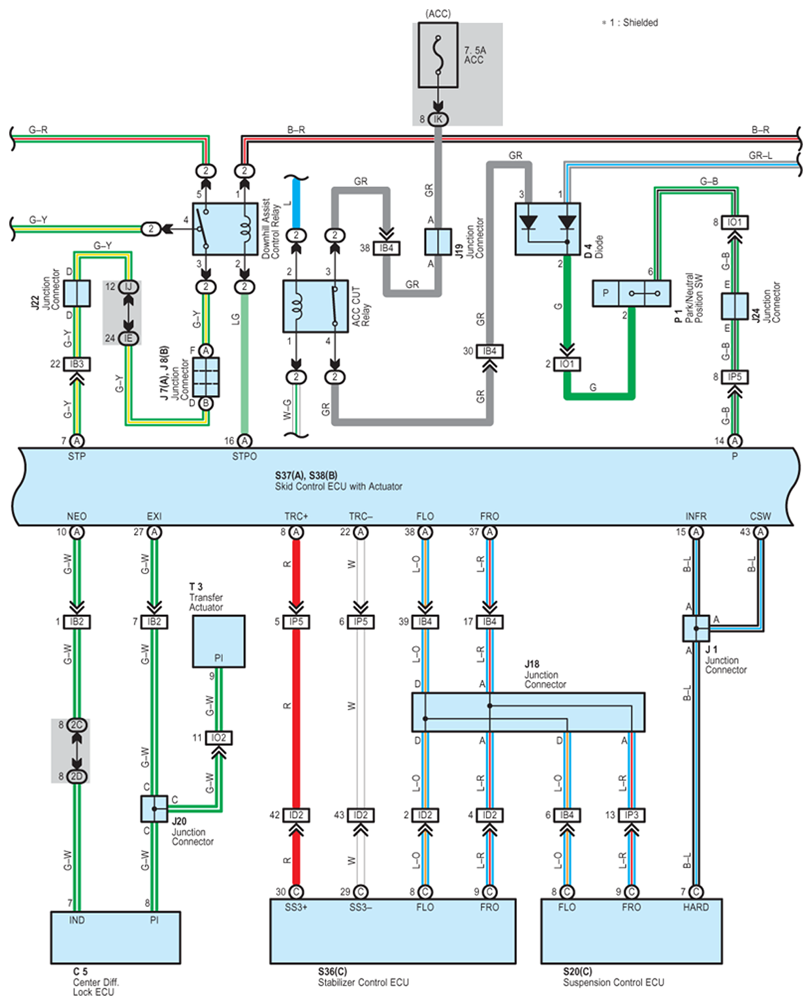

Fig 5: ABS, TRAC, VSC, Downhill Assist Control And Hill-Start Assist Control - Circuit Diagram (5 Of 6)

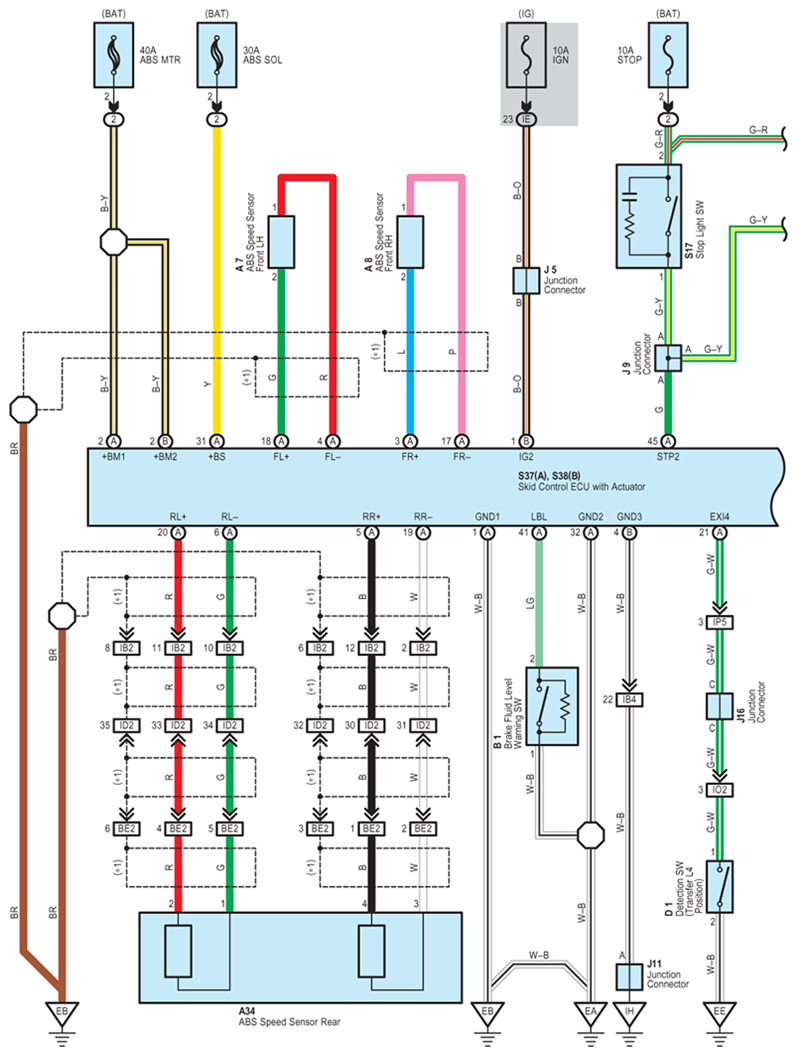

Fig 6: ABS, TRAC, VSC, Downhill Assist Control And Hill-Start Assist Control - Circuit Diagram (6 Of 6)
