Crankshaft Position Sensor: Testing and Inspection

4GR-FSE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSPECTION

INSPECTION

1. INSPECT CRANKSHAFT POSITION SENSOR

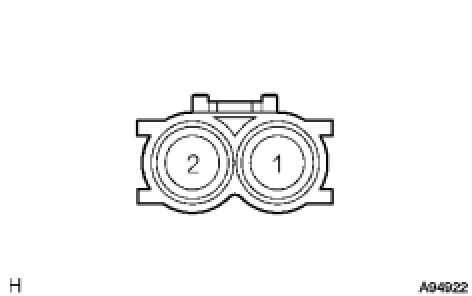

(a) Measure the resistance between the terminals.
Standard resistance:





NOTE:
In the table above, the terms "cold" and "hot" refer to the temperature of the coils. "Cold" means approximately -10 to 50°C (14 to 122°F). "Hot" means approximately 50 to 100°C (122 to 212°F).
If the resistance is not as specified, replace the sensor.
