Emission Control System

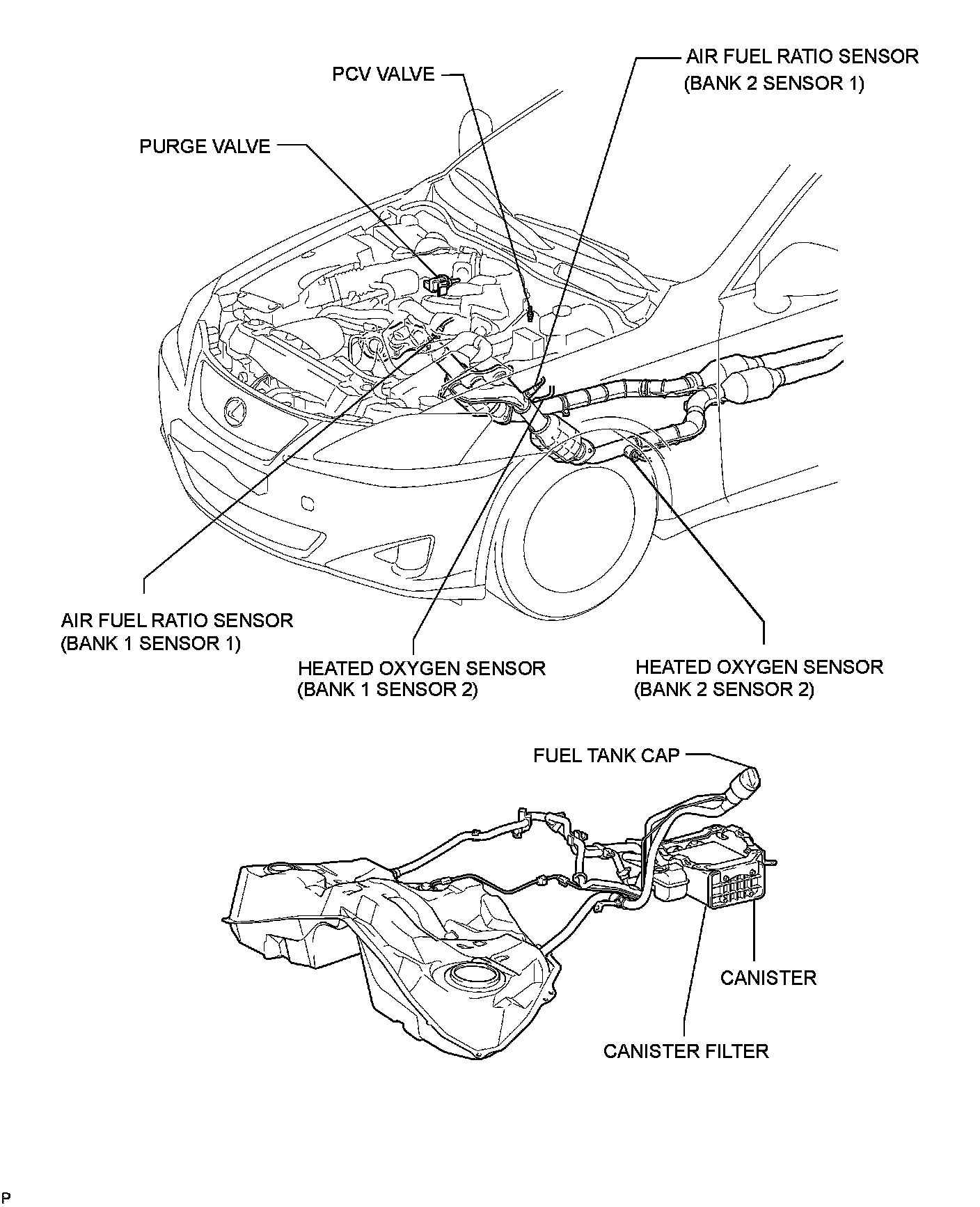

2GR-FSE EMISSION CONTROL: EMISSION CONTROL SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
