Installation

2GR-FSE STARTING: ENGINE SWITCH: INSTALLATION

INSTALLATION

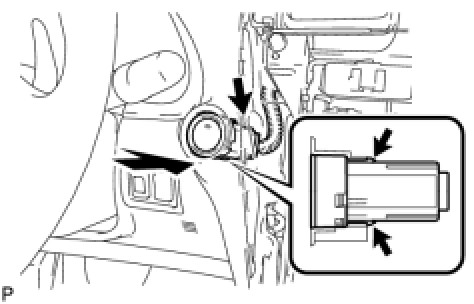

1. INSTALL ENGINE SWITCH





(a) Attach the 2 claws to install the switch.
(b) Connect the switch connector.
2. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System) Installation
3. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System) Installation
4. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL Installation
5. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY Installation
6. INSTALL CONSOLE BOX Installation
7. INSTALL CONSOLE BOX REGISTER ASSEMBLY Installation
8. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY Installation
9. INSTALL CONSOLE PANEL SUB-ASSEMBLY Installation
10. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH Installation
11. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH Installation
12. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
