Remote Up / Down Function does not Operate: Wiring Diagram

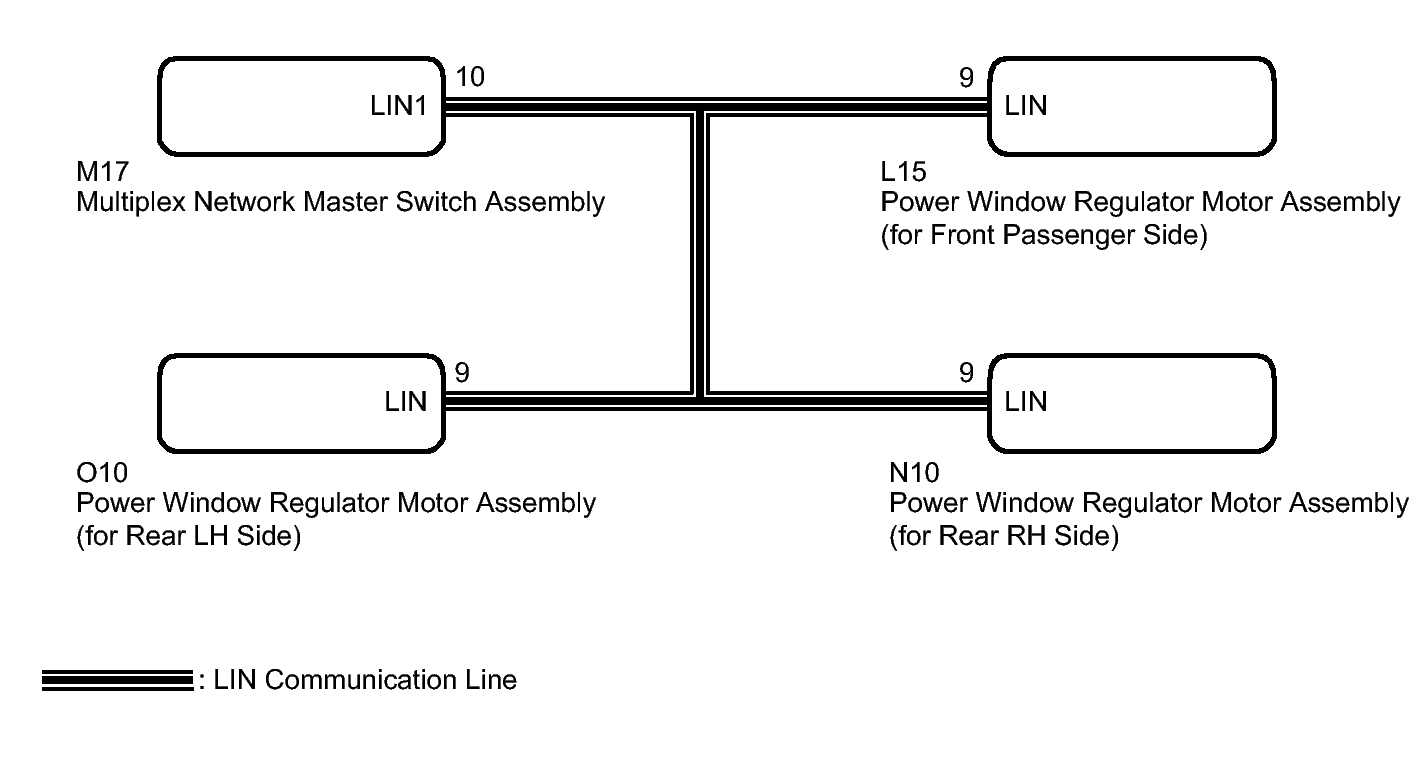

Fig 1: Lin Communication Line Wiring Diagram
GTY125029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
