Cylinder Block: Replacement: Replacement

REPLACE STRAIGHT PIN

NOTE:

It is not necessary to remove the straight pins unless they are being replaced.

Remove the straight pins.

Using a plastic-faced hammer, tap in new straight pins to the cylinder block.

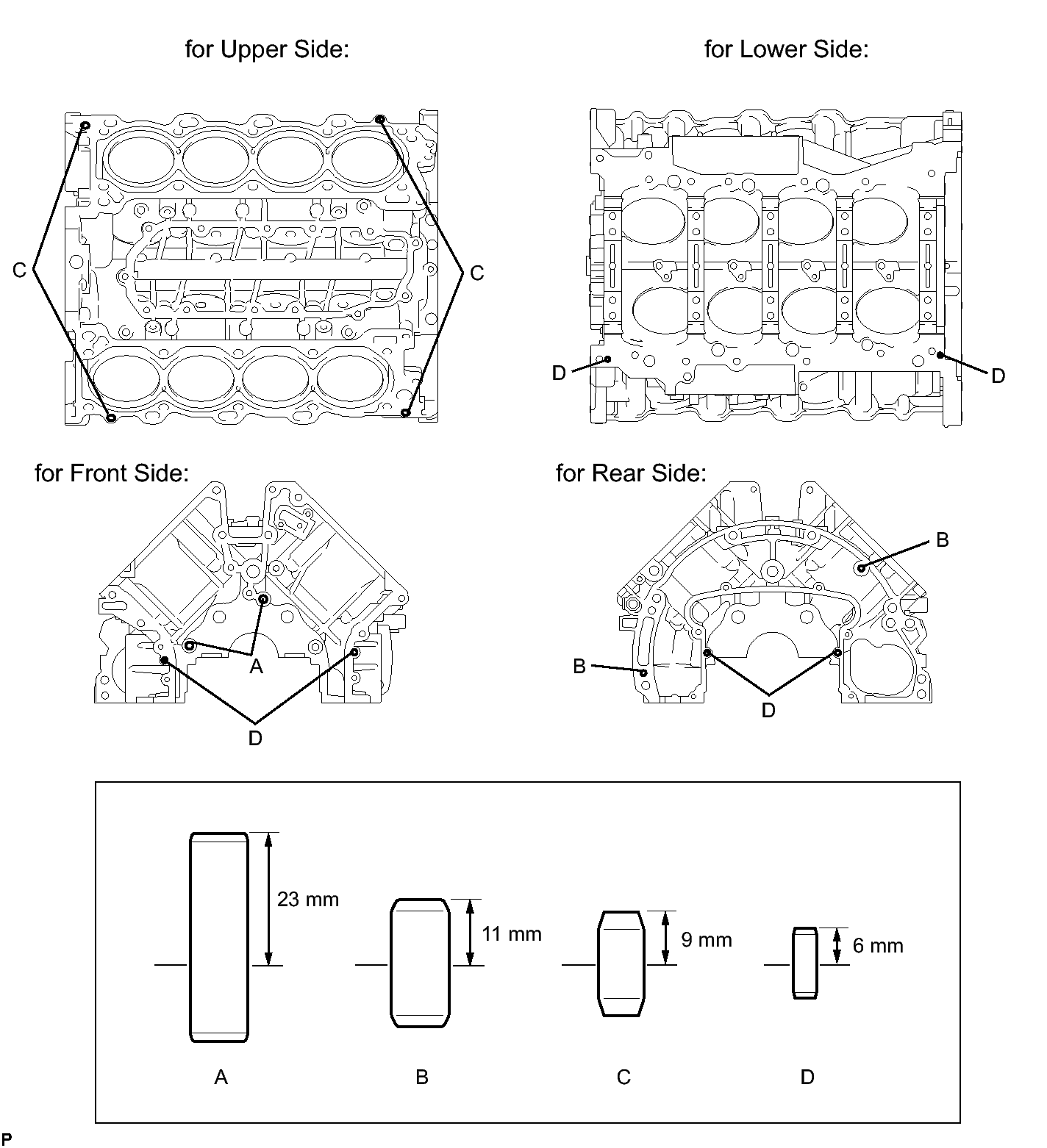

Fig 1: Identifying Straight Pin Dimensions

GTY104107

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Protrusion

Item	Specified Condition
Pin A	23 mm (0.906 in.)
Pin B	11 mm (0.433 in.)
Pin C	9 mm (0.354 in.)
Pin D	6 mm (0.236 in.)

REPLACE STUD BOLT
NOTE:
If a stud bolt is deformed or the threads are damaged, replace it.
1. Remove the stud bolts.
2. Using E8 and E10 "TORX" socket wrenches, install the stud bolts.

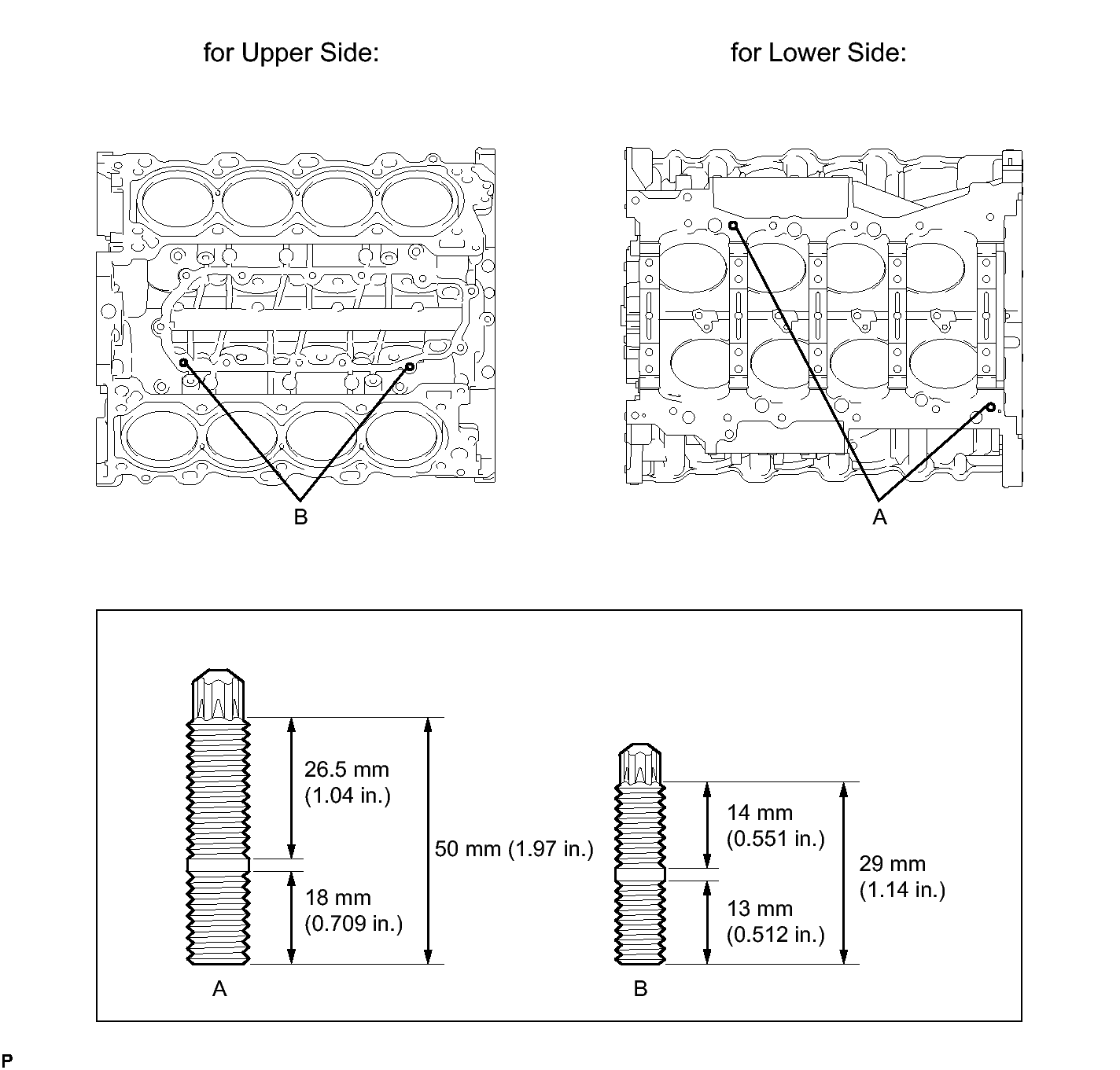

  Fig 2: Identifying Stud Bolt Dimensions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Bolt A

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  Bolt B

  Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
