Cruise Control Switch: Testing and Inspection

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSPECTION

INSPECTION

1. INSPECT CRUISE CONTROL MAIN SWITCH ASSEMBLY

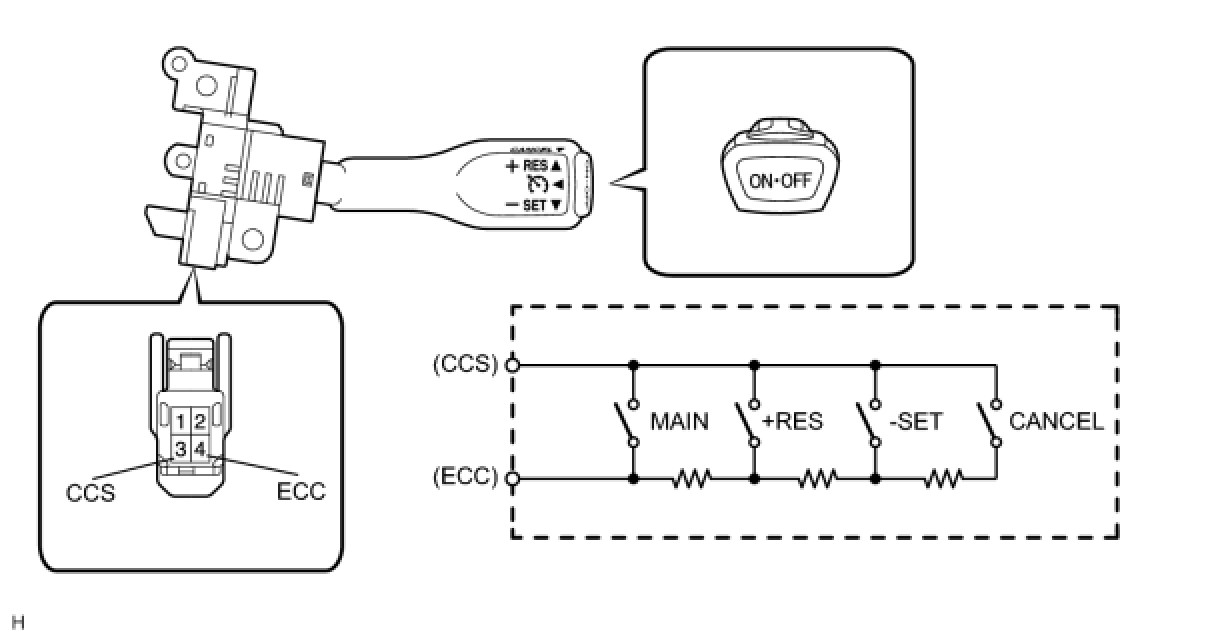

(a) Measure resistance (Vehicle without vehicle-to-vehicle distance control mode)
(1) Remove the cruise control main switch.




(2) Measure the resistance according to the value(s) in the table below.
Standard resistance:





- If the result is not as specified, replace the cruise control main switch.

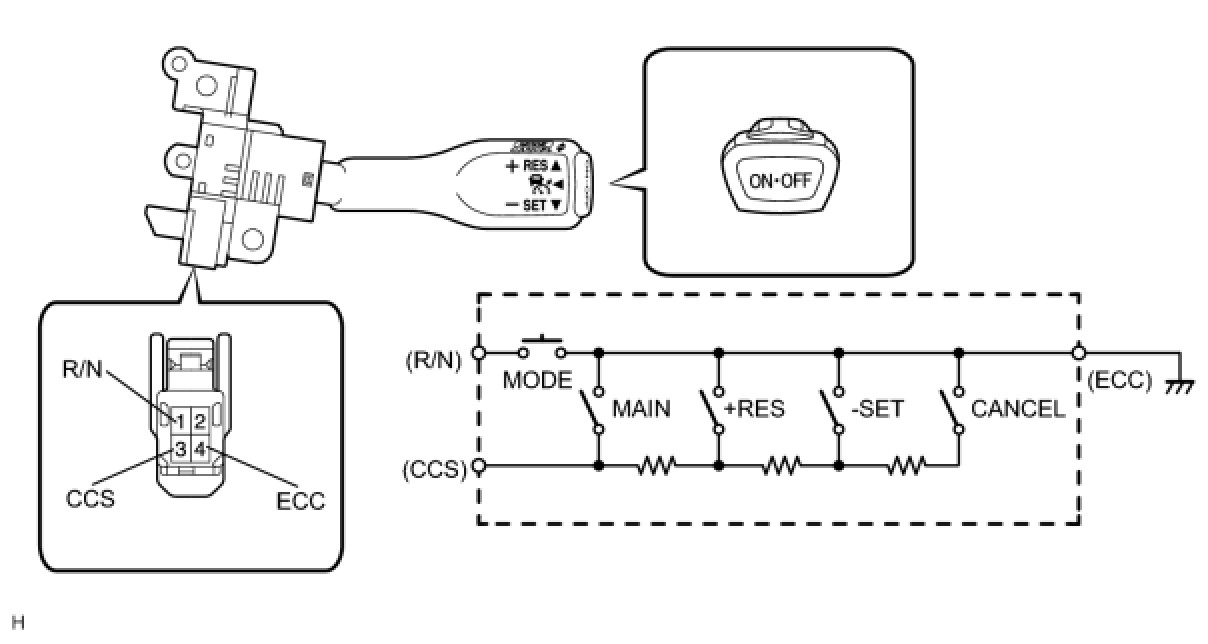

(b) Measure resistance (Vehicle with vehicle-to-vehicle distance control mode)
(1) Remove the cruise control main switch.




(2) Measure the resistance according to the value(s) in the table below.
Standard resistance:





- If the result is not as specified, replace the cruise control main switch.
