Installation

AIR CONDITIONING: INFRARED RAY SENSOR: INSTALLATION

INSTALLATION





1. INSTALL AIR CONDITIONING INFRARED RAYS SENSOR

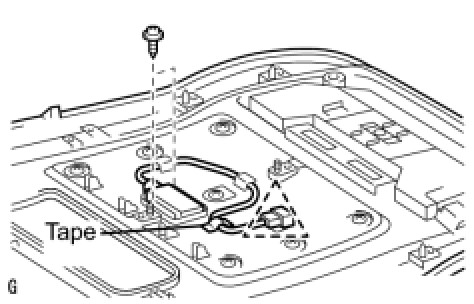

(a) Attach the clamp to install the sensor.
(b) Install the 2 screws.
(c) Apply new tape.
2. INSTALL ROOF CONSOLE BOX ASSEMBLY

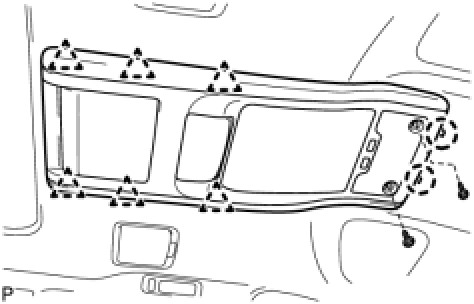

(a) Connect the 2 connectors, and then attach the 6 clips and 2 claws to install the roof console box.
(b) Install the 2 screws.

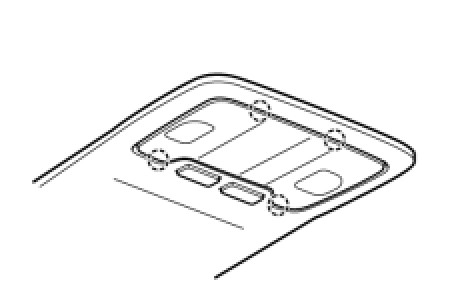

(c) Attach the 4 claws to install the spot light lens.
3. PERFORM AIR CONDITIONING INFRARED RAYS SENSOR OPERATION
(a) Operate the air conditioning infrared rays sensor to recognize it in the ECU.
(1) Turn the engine switch on (IG) so that the air conditioning amplifier recognizes the infrared rays sensor.
NOTE:
After removing and installing the infrared rays sensor, if the infrared sensor is not operated once, the ECU cannot detect the presence of an infrared rays sensor.
