Suspension








SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

SERVICE DATA

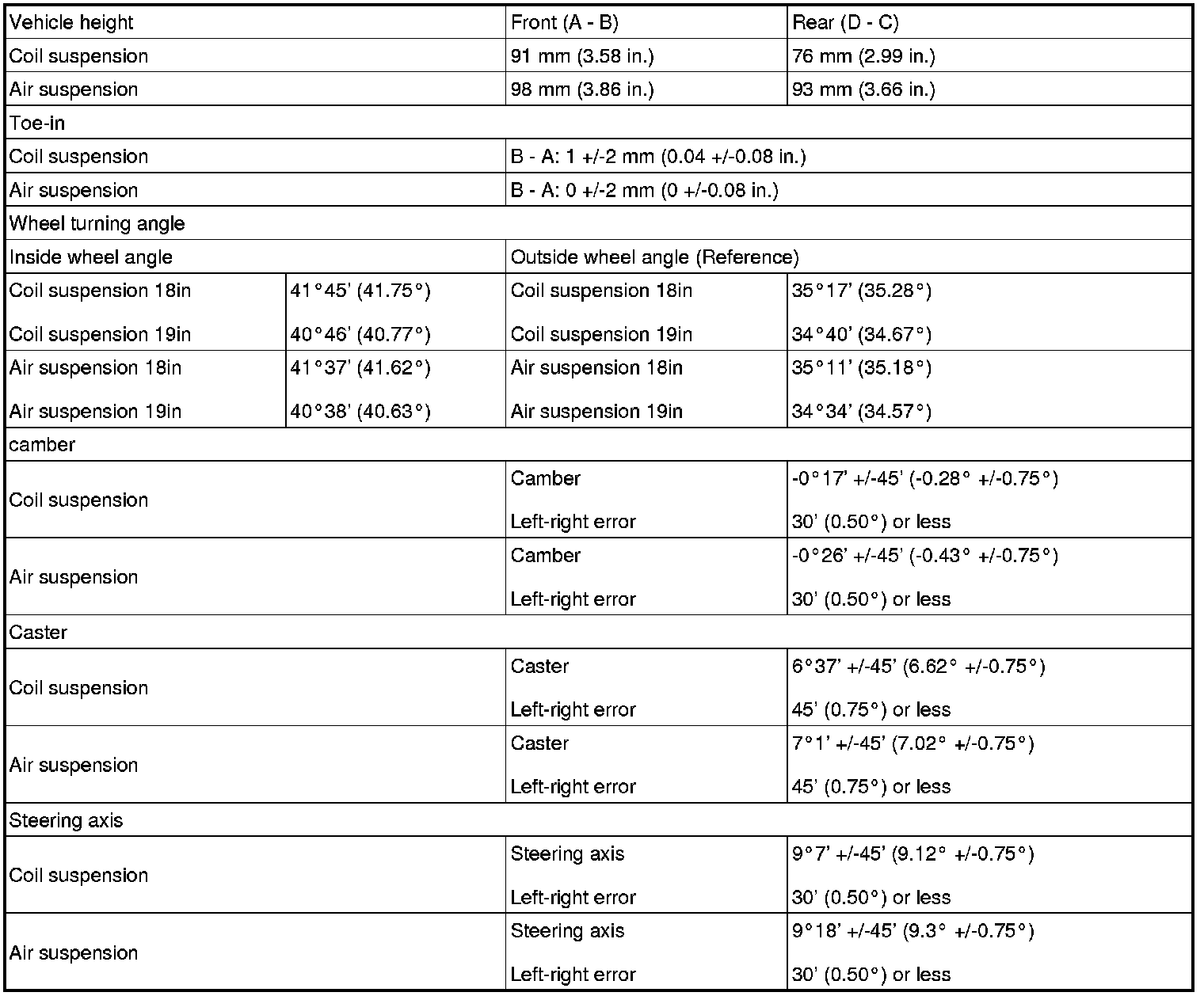

Front wheel alignment (for 2WD)





Front wheel alignment (for AWD)





Rear wheel alignment





Front suspension (for 2WD)





Front suspension (for AWD)





Rear suspension
