Window Defogger System

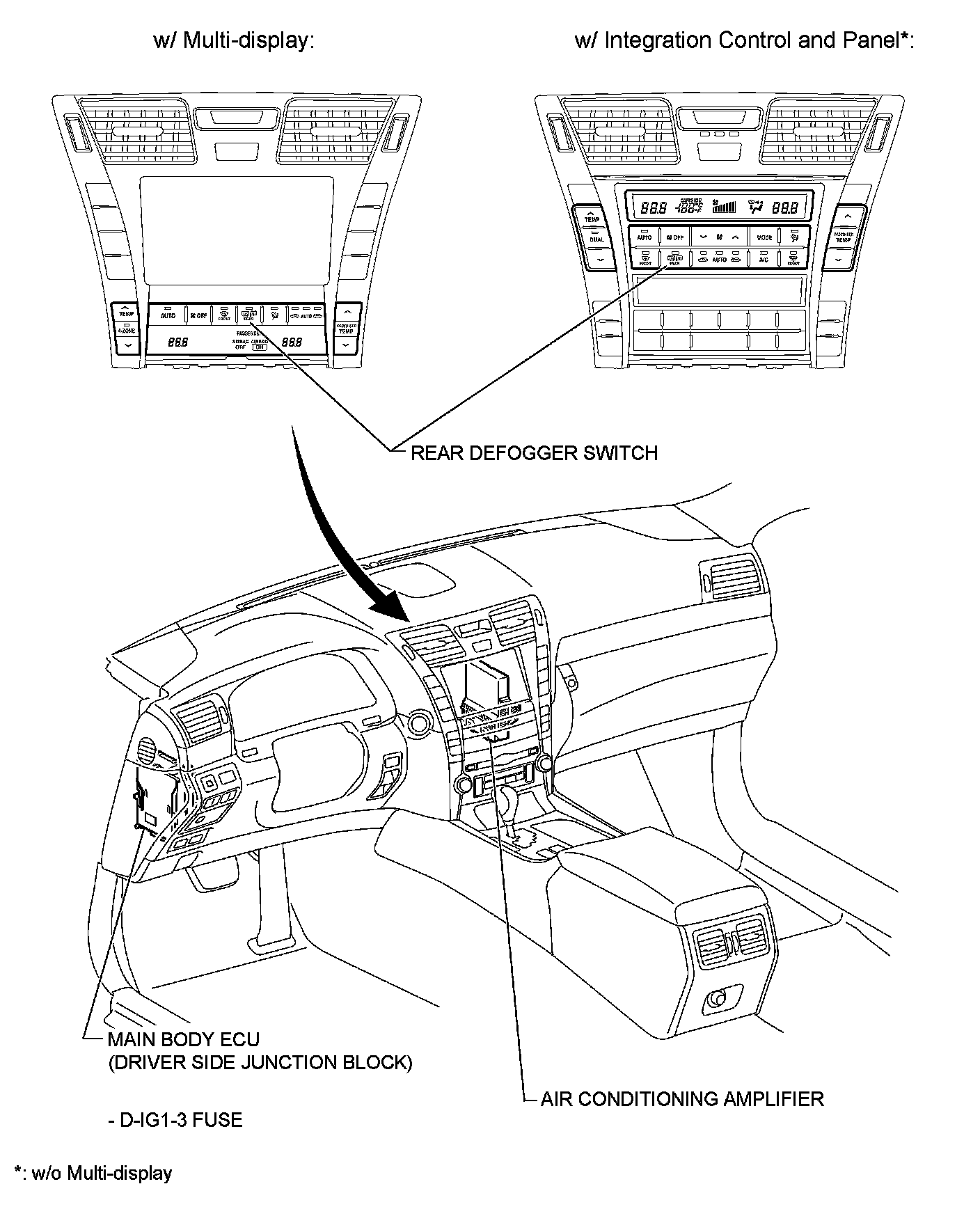

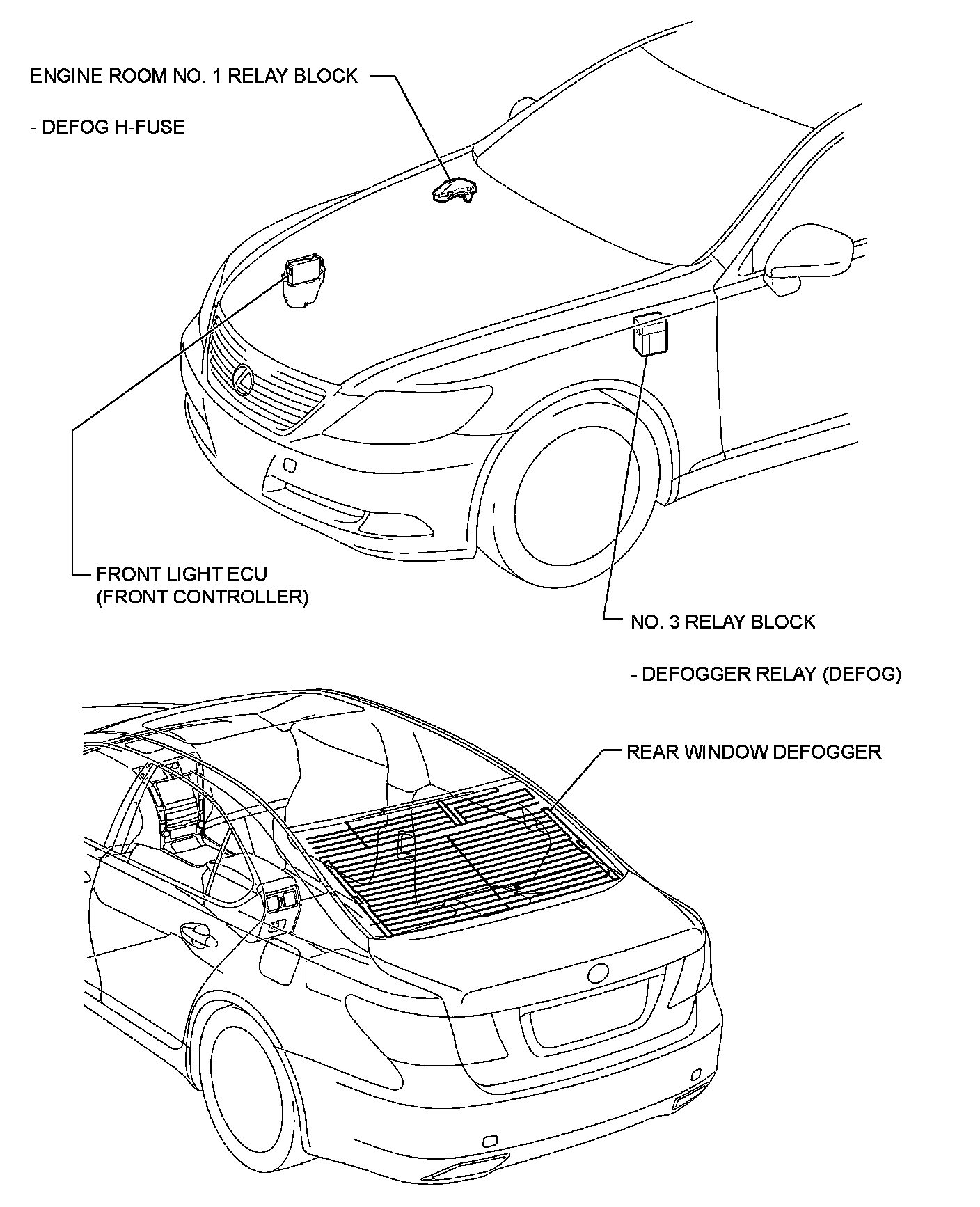

WINDSHIELD / WINDOW GLASS: WINDOW DEFOGGER SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
