Installation

1UR-FSE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSTALLATION

INSTALLATION

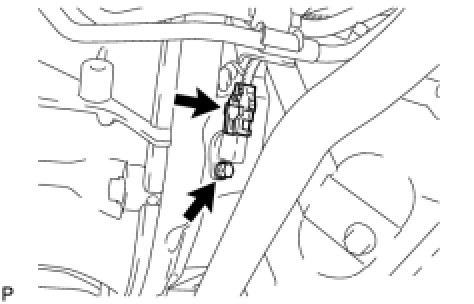

1. INSTALL CRANKSHAFT POSITION SENSOR





(a) Install the crankshaft position sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the crankshaft position sensor connector.
2. INSTALL NO. 2 ENGINE UNDER COVER (for 2WD) Installation
3. INSTALL NO. 2 ENGINE UNDER COVER (for AWD) Installation
