Ignition System: Locations

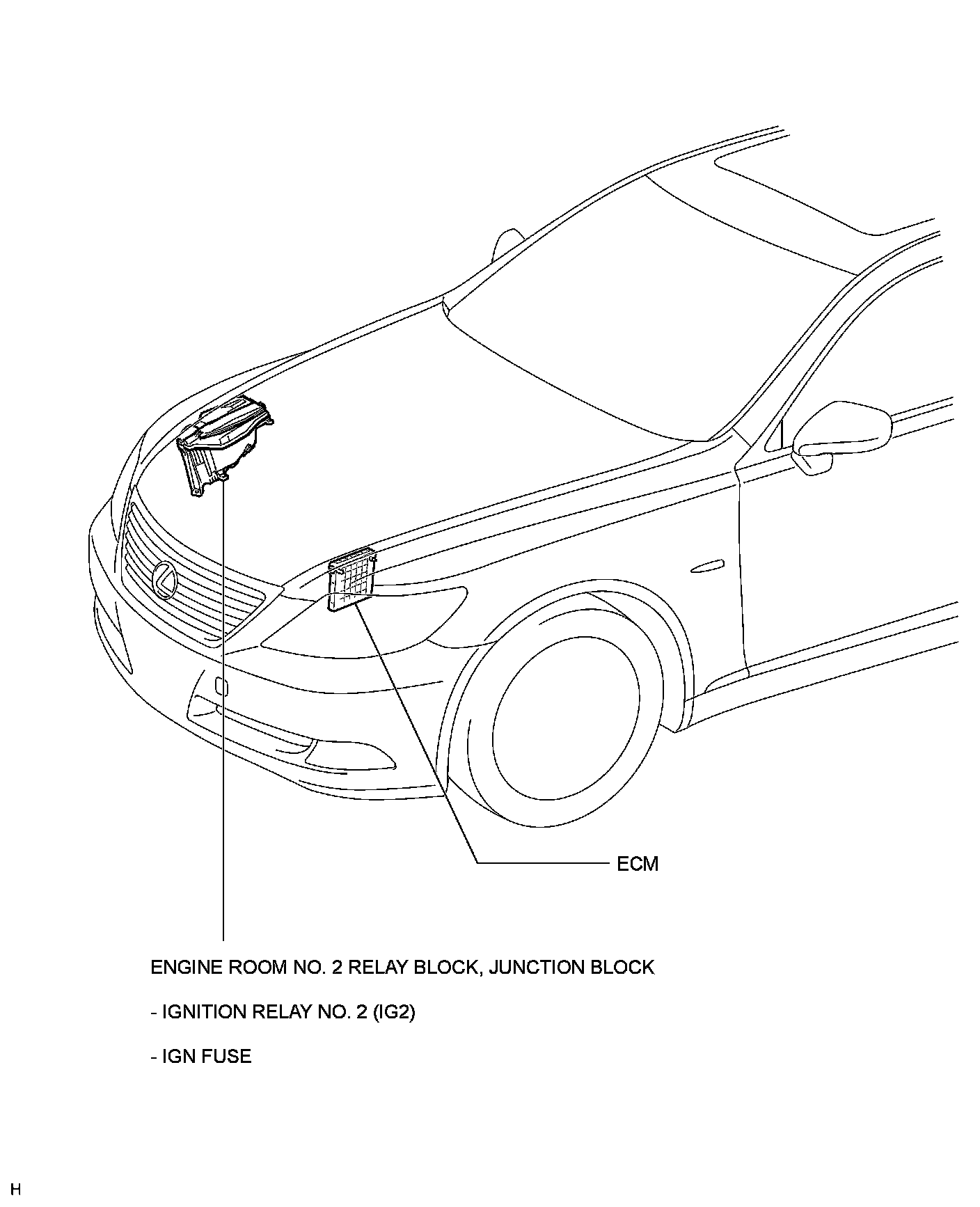

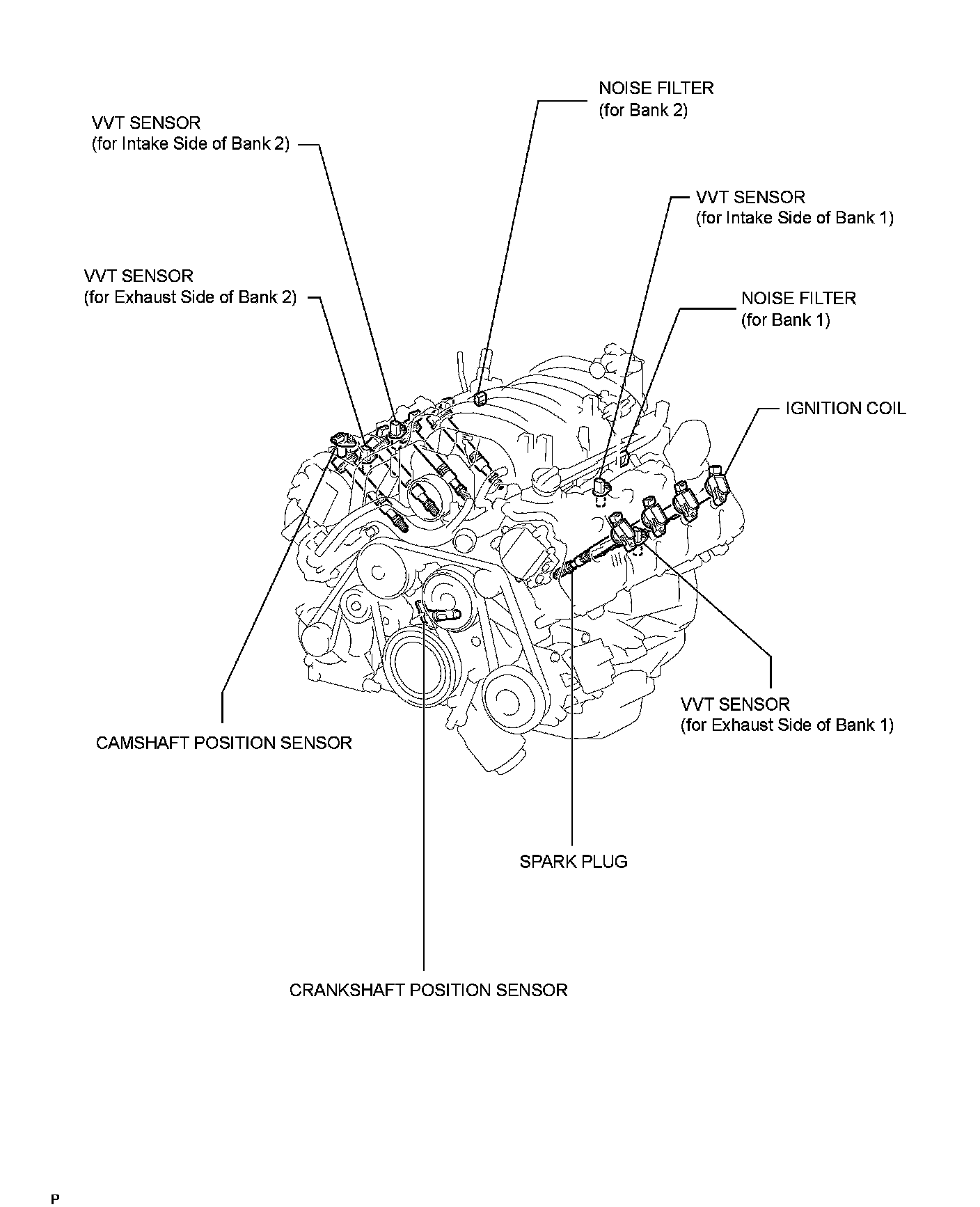

1UR-FSE IGNITION: IGNITION SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
