Torque Specifications








SERVICE SPECIFICATIONS: STEERING COLUMN: TORQUE SPECIFICATIONS

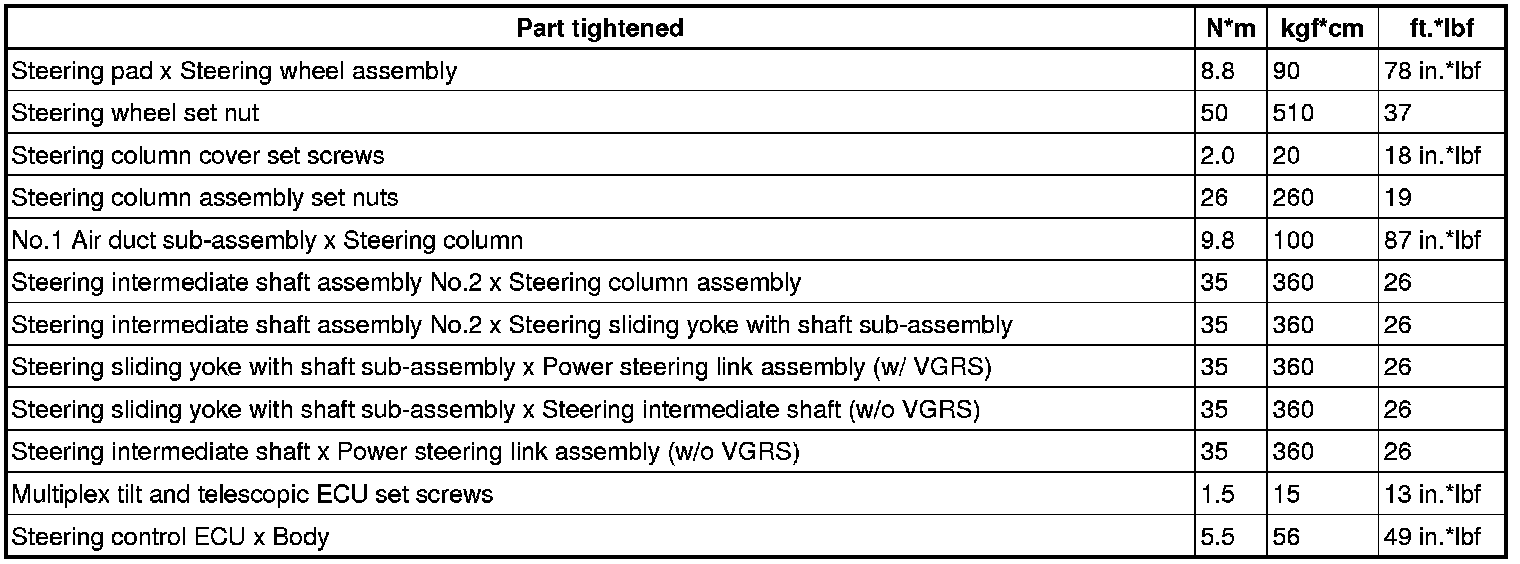

TORQUE SPECIFICATIONS
