Fog Light Assembly: Components

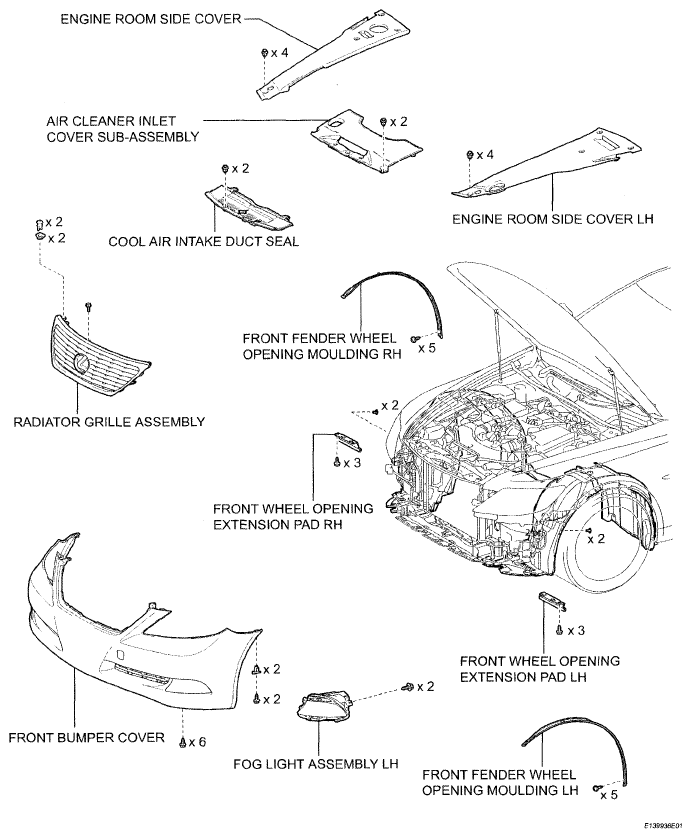

Fig 1: Identifying Fog Light Assembly And Related Components
G04944850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Fog Light Unit LH And Fog Light Bulb
G04944851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
