Headlight Dimmer Switch: Components

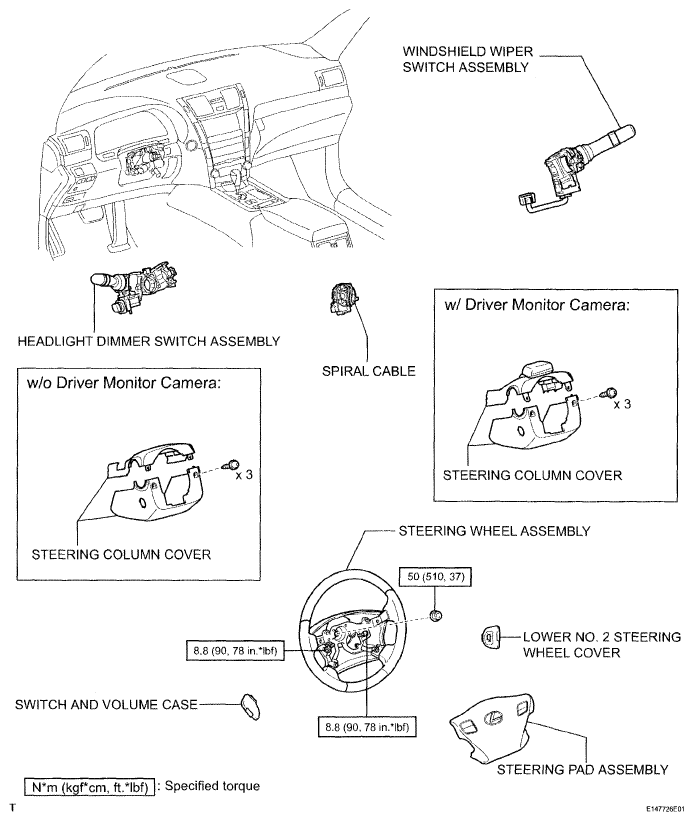

Fig 1: Headlight Dimmer Switch And Related Replacement Components With Torque Specifications
G04944952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
