System Diagram

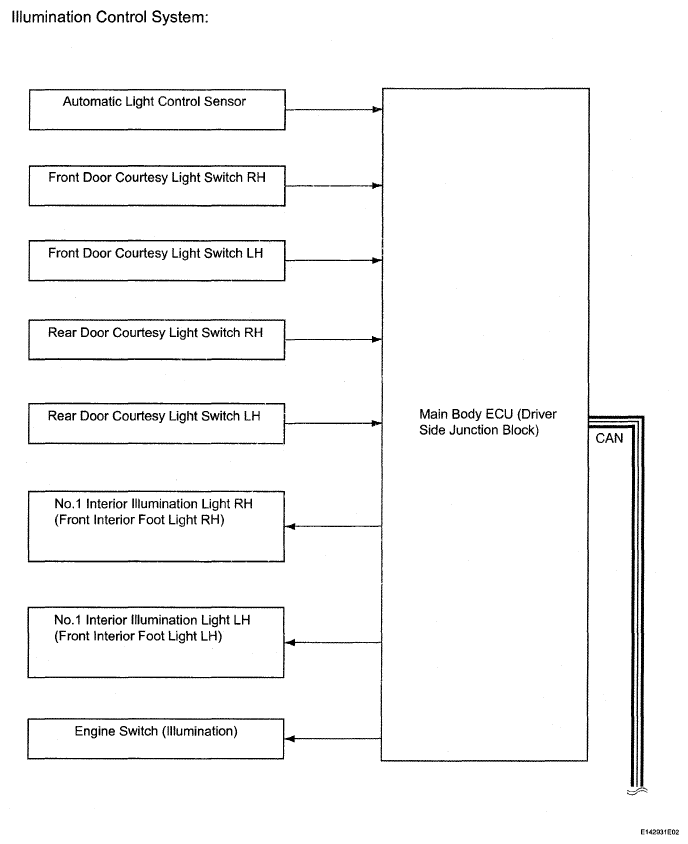

Fig 1: Illumination Control - System Diagram (1 Of 4)
G04944599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

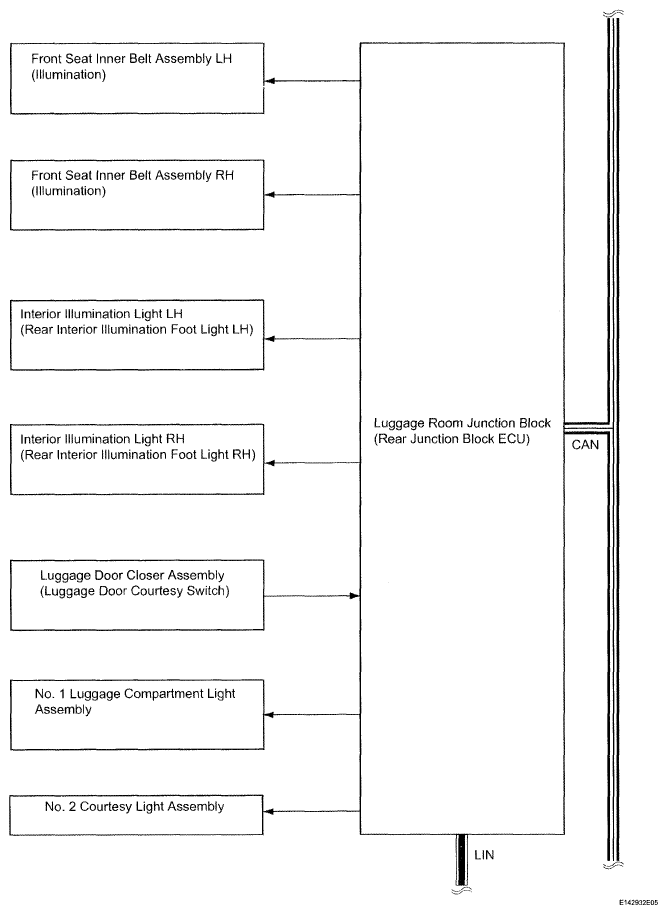

Fig 2: Illumination Control - System Diagram (2 Of 4)
G04944600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

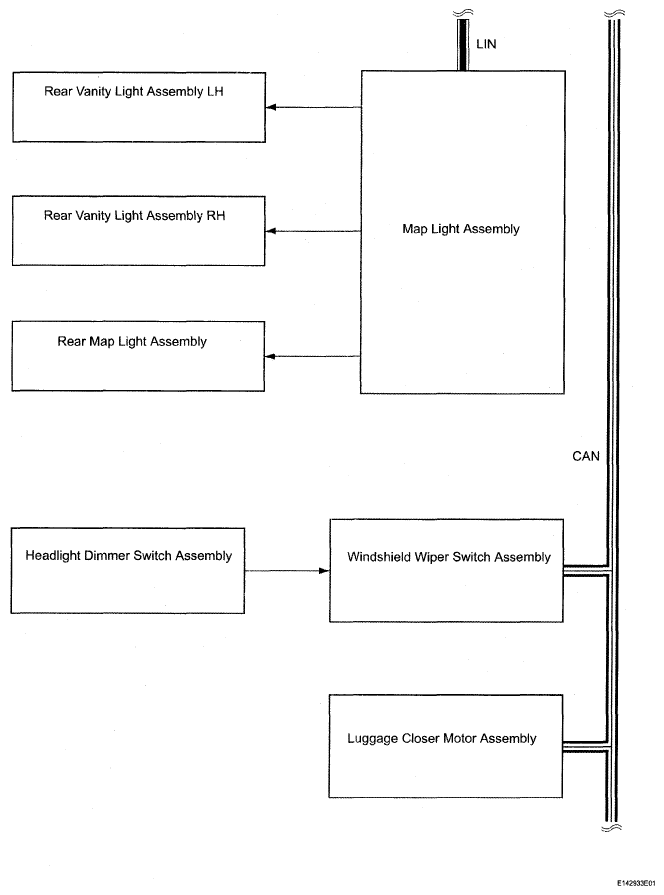

Fig 3: Illumination Control - System Diagram (3 Of 4)
G04944601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

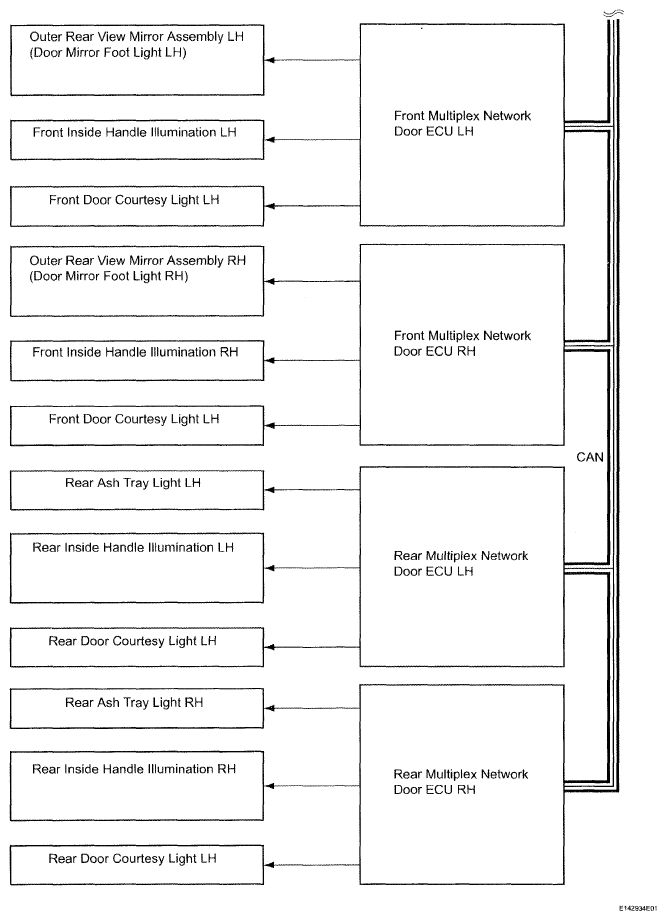

Fig 4: Illumination Control - System Diagram (4 Of 4)
G04944602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

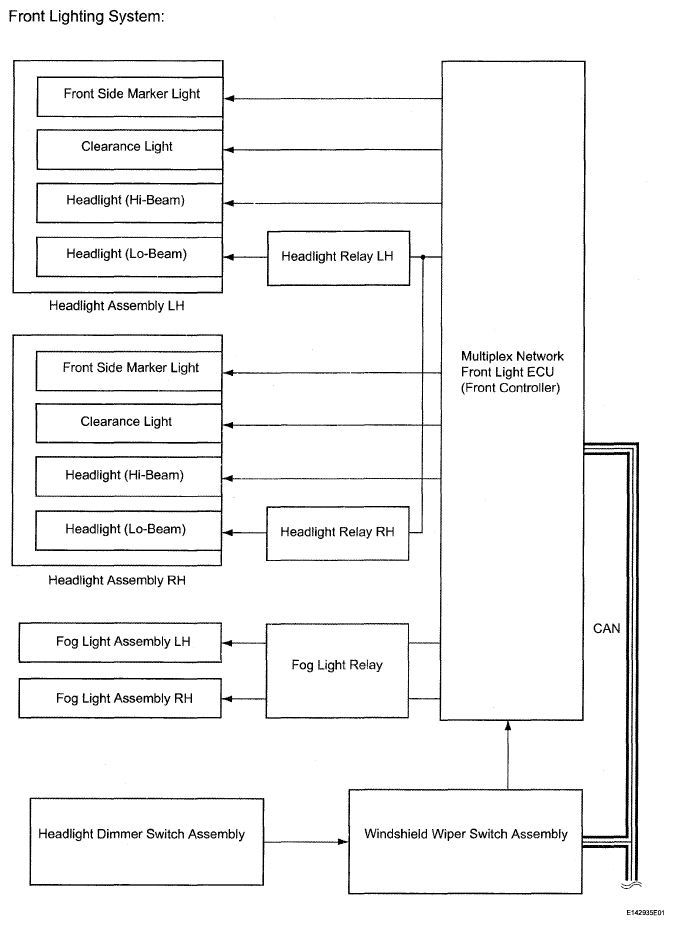

Fig 5: Front Lighting - System Diagram (1 Of 2)
G04944603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Front Lighting - System Diagram (2 Of 2)
G04944604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

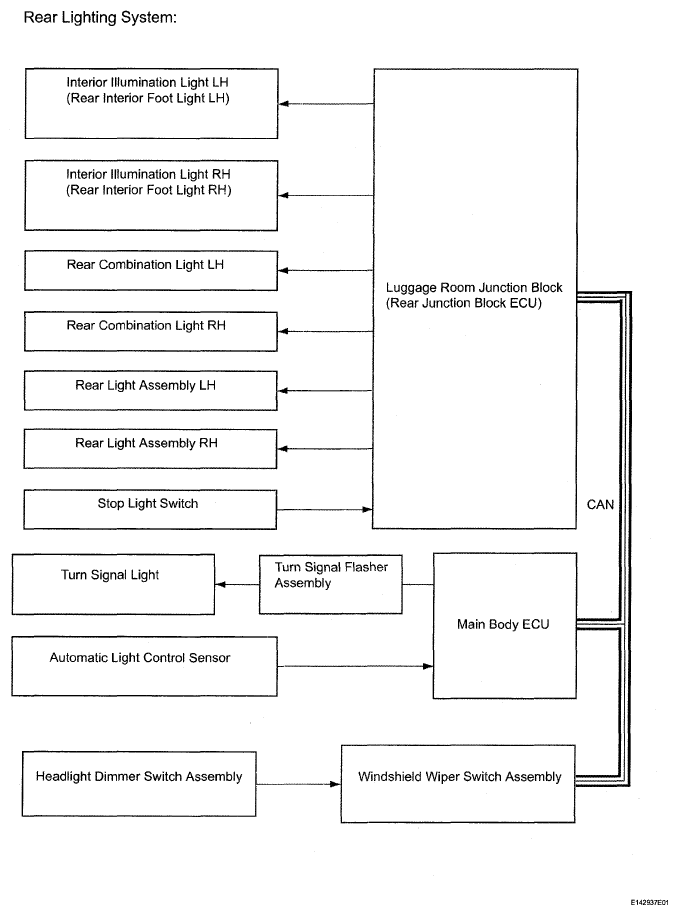

Fig 7: Rear Light - System Diagram
G04944605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

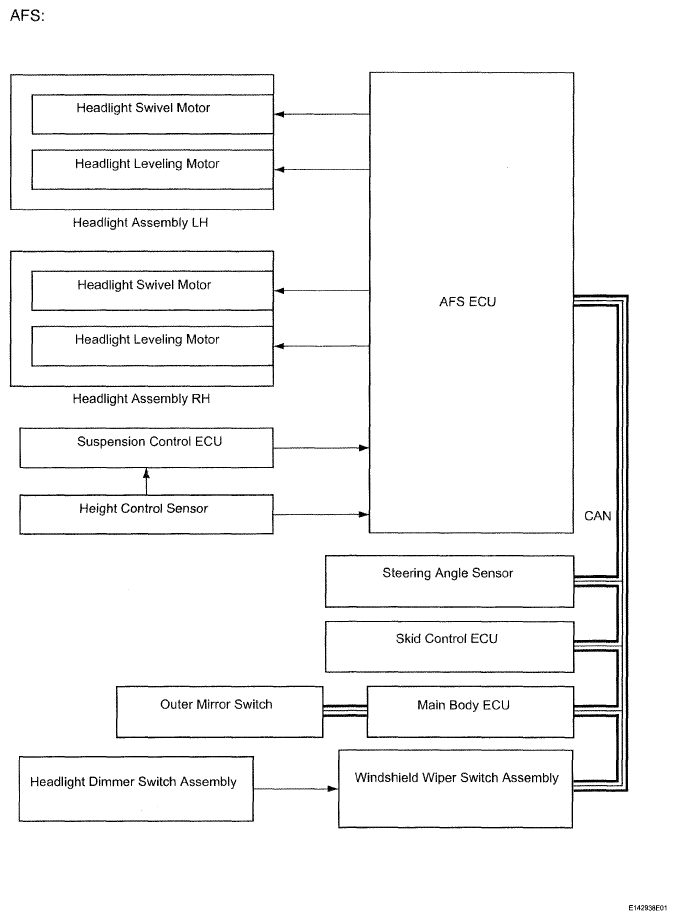

Fig 8: AFS - System Diagram
G04944606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
