System Diagram

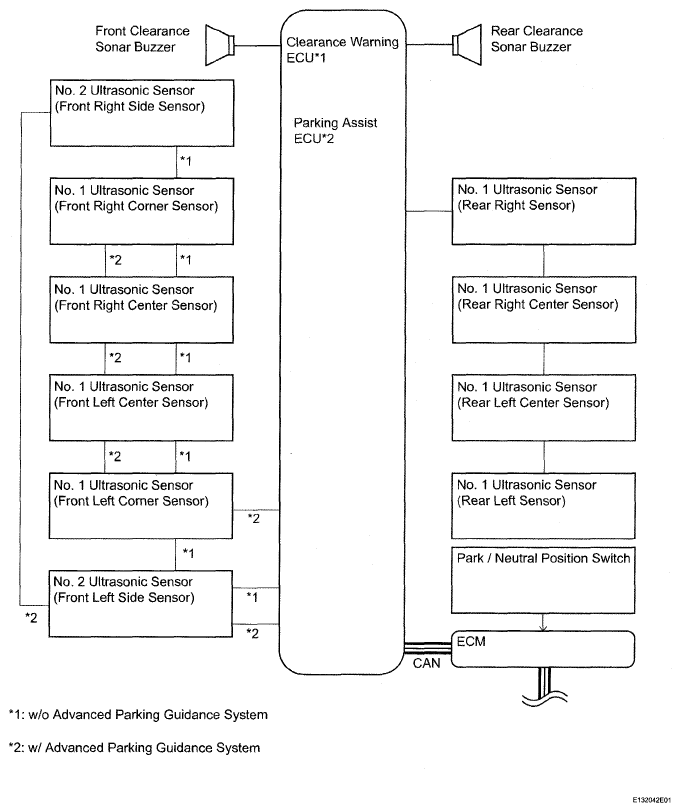

Fig 1: Intuitive Parking Assist System Diagram (1 Of 2)
G04951807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

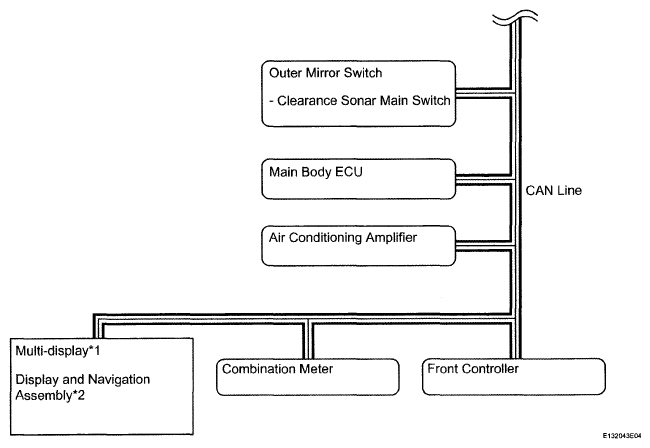

Fig 2: Intuitive Parking Assist System Diagram (2 Of 2)
G05855751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION REFERENCE CHART

Sender Receiver Signal Line
Outer mirror switch (Clearance sonar main switch) Clearance warning ECU*1 or Parking assist ECU*2 Clearance sonar main switch signal CAN
Combination meter Clearance warning ECU*1 or Parking assist ECU*2 Vehicle speed signal CAN
ECM Clearance warning ECU*1 or Parking assist ECU*2 Shift position signal CAN
Multi-display*1 Display and Navigation Assembly*2 Clearance warning ECU*1 or Parking assist ECU*2 Intuitive parking assist system setting change signal CAN
Steering control ECU Clearance warning ECU*1 or Parking assist ECU*2 Steering information CAN
Front controller Clearance warning ECU*1 or Parking assist ECU*2 Wiper status signal CAN
Air conditioning amplifier Clearance warning ECU*1 or Parking assist ECU*2 Outside temperature CAN
Main body ECU Clearance warning ECU*1 or Parking assist ECU*2 Destination symbol Steering wheel symbol CAN
Clearance warning ECU*1 Parking assist ECU*2 Combination meter Display signal CAN
Clearance warning ECU*1 Parking assist ECU*2 Multi-display Display signal CAN
Clearance warning ECU*1 Parking assist ECU*2 Front controller Detection signal CAN
Clearance warning ECU*1 Parking assist ECU*2 Outer mirror switch Clearance sonar main switch indicator lighting request signal CAN
HINT:
*1: w/o Advanced parking guidance system
*2: w/ Advanced parking guidance system
