Television Camera: Components

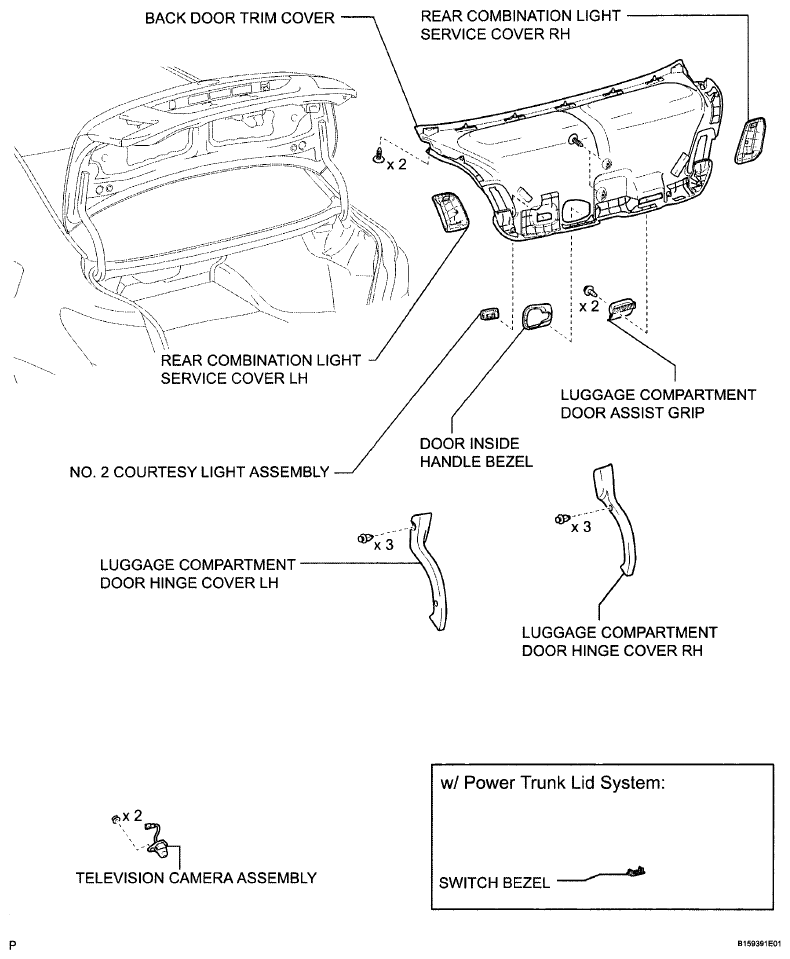

Fig 1: Identifying Television Camera And Related Components
G06192597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
