Inspection Procedure

  1. CHECK POWER DOOR LOCK OPERATION
    1. When the master switch assembly's door control switch is operated, check that the locked doors unlock.

      Result

      RESULT CHART

      Result Proceed to
      Door locks operate normally OK
      Door locks do not operate normally NG

      NG:  GO TO POWER DOOR LOCK CONTROL SYSTEM

      OK: Go to next step

  2. READ VALUE USING TECHSTREAM
    1. Using the Techstream, read the Data List.

      Passenger Door (Front door ECU LH)

      PASSENGER DOOR (FRONT DOOR ECU LH) DATA LIST REFERENCE

      Tester Display Measurement Item/Display Normal Condition Diagnostic Note
      Entry Sensor Front passenger side door touch sensor/ON or OFF ON: Front passenger side door sensor is touched
      OFF: Front passenger side door sensor is not touched      		 -
      Outside Handle Trigger SW Front passenger side door outside handle lock switch/ON or OFF ON: Front passenger side door outside handle lock switch is pushed
      OFF: Front passenger side door outside handle lock switch is not pushed      		 -

      Result

      RESULT CHART

      Result Proceed to
      Display does not change according to manual operation A
      Display changes according to manual operation B

      B:  Go to step  9

      A: Go to next step

  3. CHECK FRONT DOOR ECU RH

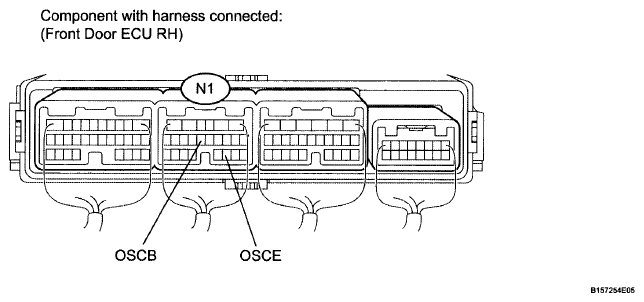

    Fig 1: Identifying Front Door ECU RH Connector Terminals
    G06193961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the voltage according to the value (s) in the table below.

      Standard voltage

      VOLTAGE SPECIFICATION

      Tester Connection Condition Specified Condition
      N1-12 (OSCB) - N1-19 (OSCE) Always 11 to 14 V

      NG: REPLACE FRONT DOOR ECU RH  (See REMOVAL )

      OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR ECU RH)
    Fig 2: Identifying N1 ECU Connector Terminal And A1 Oscillator Connector Terminals
    G04951656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the a1 oscillator connector.
    2. Disconnect the N1 ECU connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      a1-1 (B) - N1-12 (OSCB) Always Below 1 Ω
      a1-6 (SENS) - N1-14 (SENS) Always Below 1 Ω
      a1-7 (GND) - N1-19 (OSCE) Always Below 1 Ω
      a1-1 (B) - Body ground Always 10 kΩ or higher
      a1-6 (SENS) - Body ground Always 10 kΩ or higher
      a1-7 (GND) - Body ground Always 10 kΩ or higher

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to next step

  5. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR OUTSIDE HANDLE RH)
    Fig 3: Identifying A2 Handle Connector Terminal And A1 Oscillator Connector Terminals
    G04951657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the a1 oscillator connector.
    2. Disconnect the a2 handle connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      a1-2 (SGT1) - a2-6 (SGT1) Always Below 1 Ω
      a1-9 (TRG-) - a2-1 (TRG-) Always Below 1 Ω
      a1-2 (SGT1) - Body ground Always 10 kΩ or higher
      a1-9 (TRG-) - Body ground Always 10 kΩ or higher

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to next step

  6. CHECK HARNESS AND CONNECTOR (FRONT DOOR ECU RH - FRONT DOOR OUTSIDE HANDLE RH)
    Fig 4: Identifying A2 Handle Connector And N1 ECU Connector Terminals
    G04951658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the a2 handle connector.
    2. Disconnect the N1 ECU connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      a2-3 (TRG+) - N1-20 (TRG+) Always Below 1 Ω
      a2-3 (TRG+) - Body ground Always 10 kΩ or higher

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to next step

  7. CHECK DOOR ELECTRICAL KEY OSCILLATOR (OPERATION)
    1. Replace the door electrical key oscillator with a new one or normally functioning one (see REMOVAL ).
    2. Check that the entry function operates normally.

      OK: Operates normally

      NG: Go to step 8

      OK: END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

  8. CHECK FRONT DOOR OUTSIDE HANDLE RH (OPERATION)
    1. Replace the front door outside handle RH with a new one or normally functioning one (see REMOVAL ).
    2. Check that the entry function operates normally.

      OK: Operates normally

      NG: REPLACE FRONT DOOR ECU RH  (See REMOVAL )

      OK: END (FRONT DOOR OUTSIDE HANDLE RH IS DEFECTIVE)

  9. CHECK WAVE ENVIRONMENT
    Fig 5: Identifying Distance Between Key And Front Passenger Door Outside Handle
    G04951659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Bring the electrical key transmitter near the front passenger door outside handle, and perform a front passenger door entry lock and unlock operation check.
      NOTE: If the key is brought within 0.2 m (0.6 ft.) of the door handle, communication is not possible.

      HINT:

      • When the electrical key transmitter is brought near the front passenger door outside handle, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
      • If the inspection result is that the operation check is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

        Result

        RESULT CHART

        Result Proceed to
        Operation check fails A
        Operation check is normal B

        B: AFFECTED BY WAVE INTERFERENCE

        A: Go to next step

  10. KEY DIAGNOSTIC MODE
    Fig 6: Identifying Distance Between Key And Door Handle
    G04951660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Diagnostic mode inspection (front passenger door outside oscillator)
      1. Connect the Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical/Smart Access/Smart Communication Check/Overhead + Passenger Side.
      5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

        HINT:

        If the buzzer sounds, it can be determined that the front passenger seat outside transmitter is operating normally.

        OK: Wireless door lock buzzer sounds

        NG: Go to step 11

        OK: END (CERTIFICATION ECU IS DEFECTIVE)

  11. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR CERTIFICATION ECU)
    Fig 7: Identifying L15 ECU Connector Terminal And A1 Oscillator Connector Terminal
    G04951661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the a1 oscillator connector.
    2. Disconnect the L15 ECU connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      a1-5 (CLGB) - L15-36 (CG2B) Always Below 1 Ω
      a1-10 (CLG) - L15-35 (CLG2) Always Below 1 Ω
      a1-5 (CLGB) - Body ground Always 10 kΩ or higher
      a1-10 (CLG) - Body ground Always 10 kΩ or higher

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to next step

  12. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR ECU RH)
    Fig 8: Identifying N1 ECU Connector And A1 Oscillator Connector Terminals
    G04951638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the a 1 oscillator connector.
    2. Disconnect the N1 ECU connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      a1-4 (SEL) - N1-15 (SEL) Always Below 1 Ω
      a1-4 (SEL) - Body ground Always 10 kΩ or higher

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to next step

  13. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR OUTSIDE HANDLE RH)
    Fig 9: Identifying A1 Oscillator Connector And A2 Handle Connector Terminals
    G04951663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the a1 oscillator connector.
    2. Disconnect the a2 handle connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      a1-3 (ANT1) - a2-5 (ANT1) Always Below 1 Ω
      a1-8 (ANT2) - a2-2 (ANT2) Always Below 1 Ω
      a1-3 (ANT1) - Body ground Always 10 kΩ or higher
      a1-8 (ANT2) - Body ground Always 10 kΩ or higher

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to next step

  14. CHECK DOOR ELECTRICAL KEY OSCILLATOR (OPERATION)
    1. Replace the door electrical key oscillator with a new one or normally functioning one (see REMOVAL ).
    2. Check that the entry function operates normally.

      OK: Operates normally

      NG: Go to step 15

      OK: END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

  15. CHECK FRONT DOOR OUTSIDE HANDLE RH (OPERATION)
    1. Replace the front door outside handle RH with a new one or normally functioning one (see REMOVAL ).
    2. check that the entry function operates normally.

      OK: Operates normally

      NG: Go to step 16

      OK: END (FRONT DOOR OUTSIDE HANDLE RH IS DEFECTIVE)

  16. CHECK FRONT DOOR ECU RH (OPERATION)
    1. Replace the front door ECU RH with a new one or normally functioning one (see REMOVAL ).
    2. Check that the entry function operates normally.

      OK: Operates normally

      NG: REPLACE CERTIFICATION ECU

      OK: END (FRONT DOOR ECU RH IS DEFECTIVE)
