System Diagram

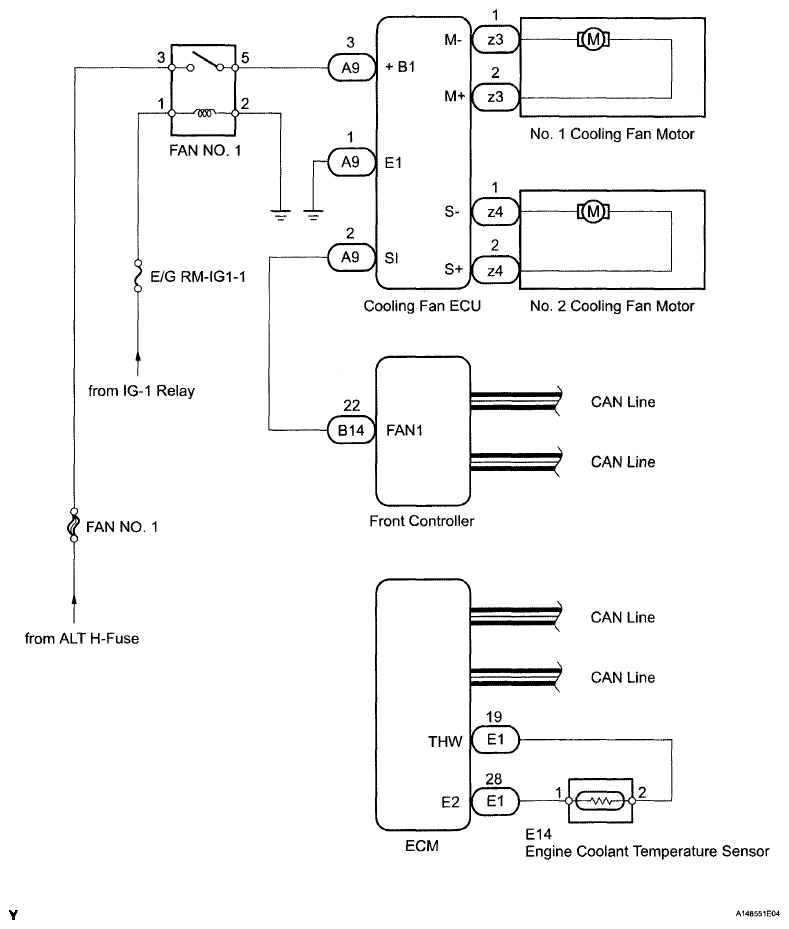

Fig 1: Cooling - System Diagram

G06196346

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
