HEATED OXYGEN SENSOR (for 2WD): Components

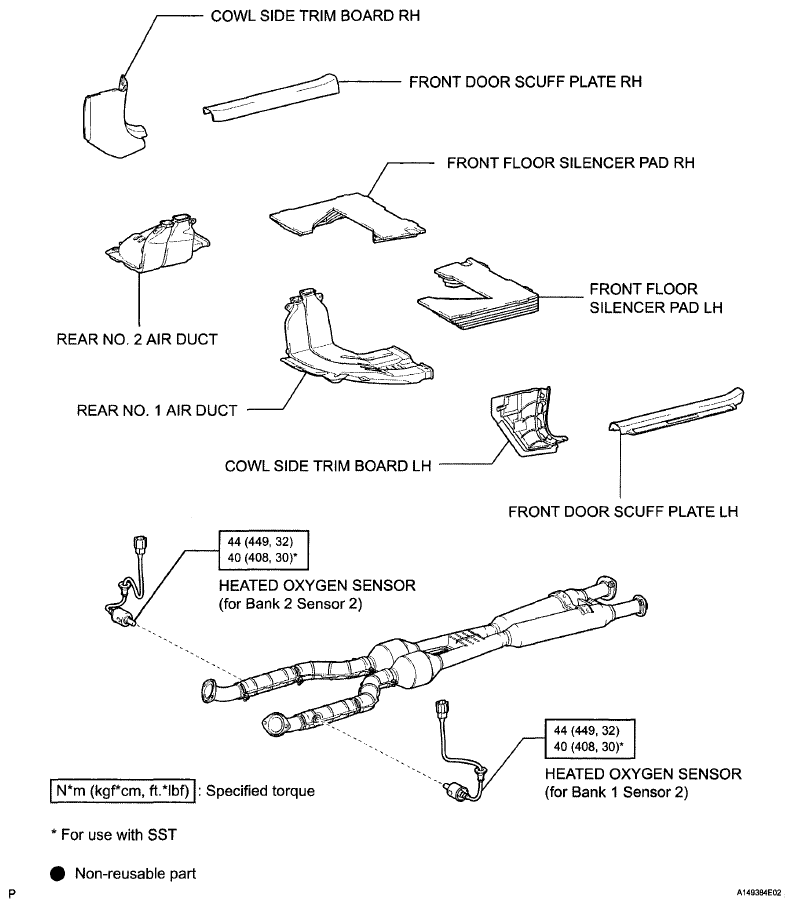

Fig 1: Heated Oxygen Sensor (2WD) Replacement Components With Torque Specifications
G06190240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
