Rear Stabilizer Bar: Components

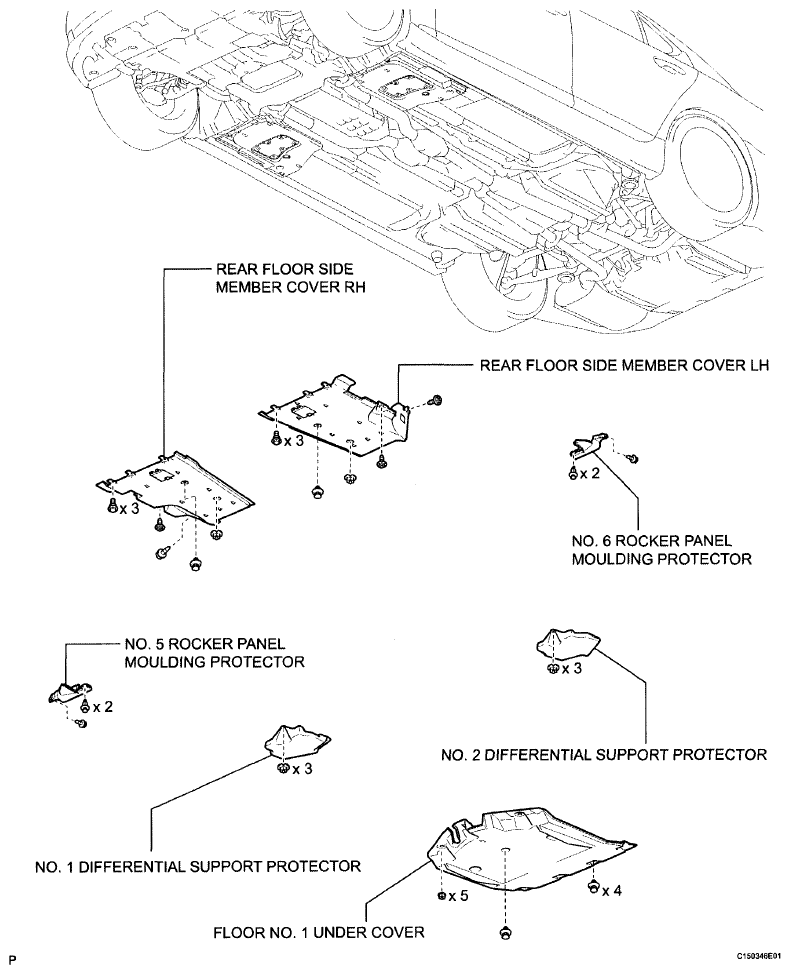

Fig 1: Identifying Rear Stabilizer Bar Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Rear Stabilizer Bar Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

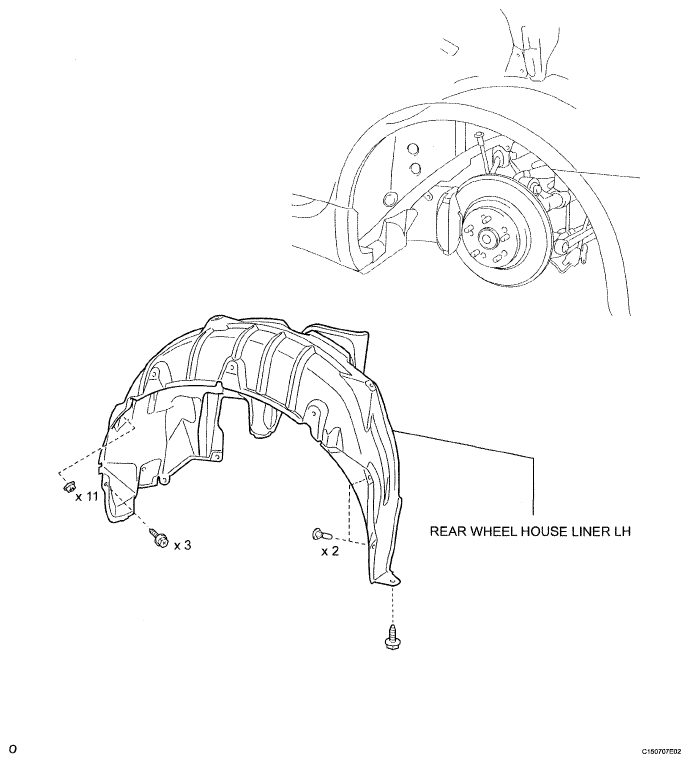

Fig 3: Identifying Rear Stabilizer Bar Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Rear Stabilizer Bar Replacement Components With Torque Specifications (4 Of 6)

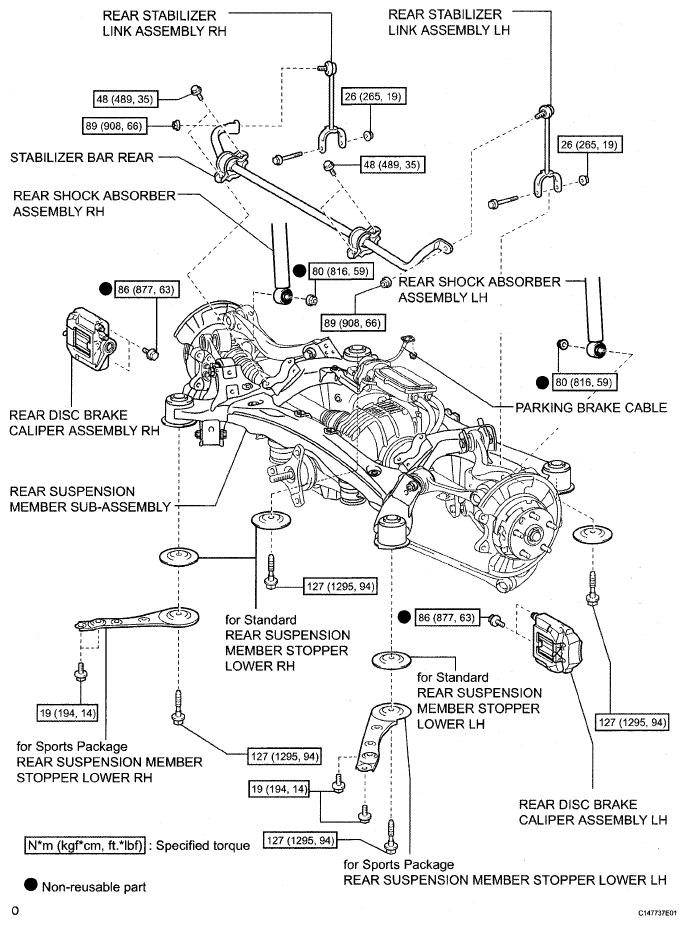

Fig 5: Rear Stabilizer Bar Replacement Components With Torque Specifications (5 Of 6)

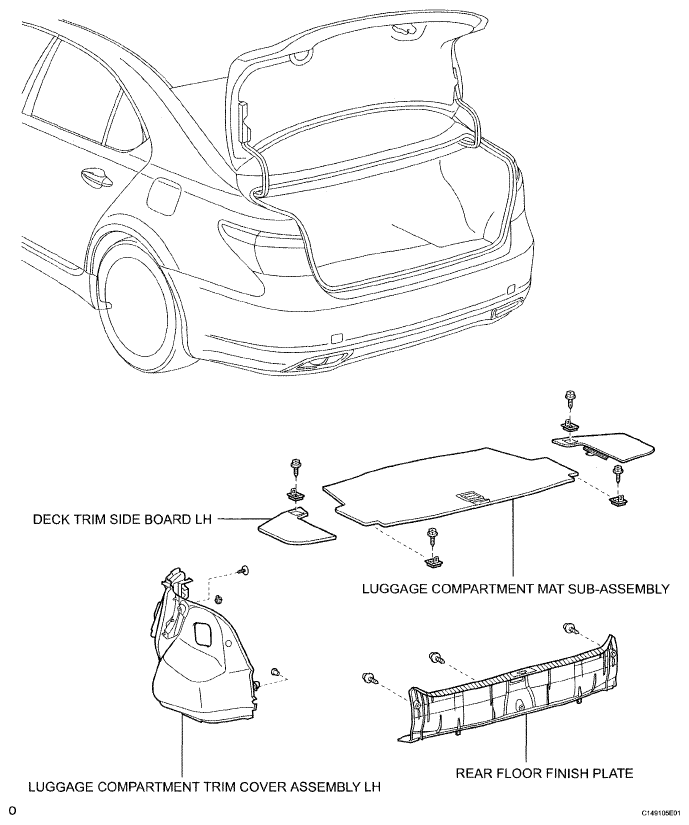

Fig 6: Rear Stabilizer Bar Replacement Components With Torque Specifications (6 Of 6)
