Park/Neutral Position Switch: Components

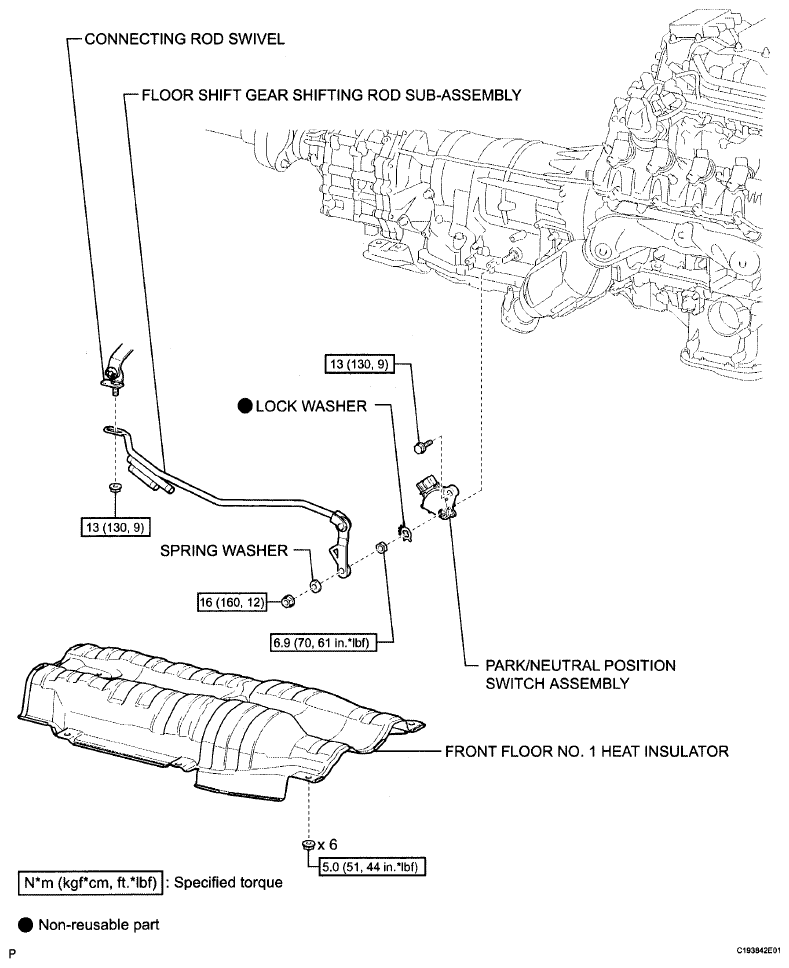

Fig 1: Park/Neutral Position Switch Replacement Components With Torque Specifications
G06191304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
