Parts Location

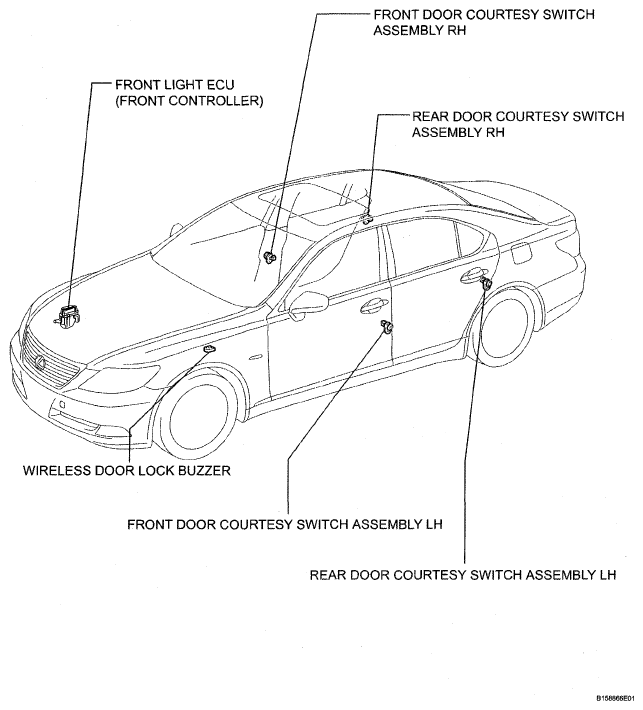

Fig 1: Identifying Smart Access System With Push-Button Start Parts Location (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

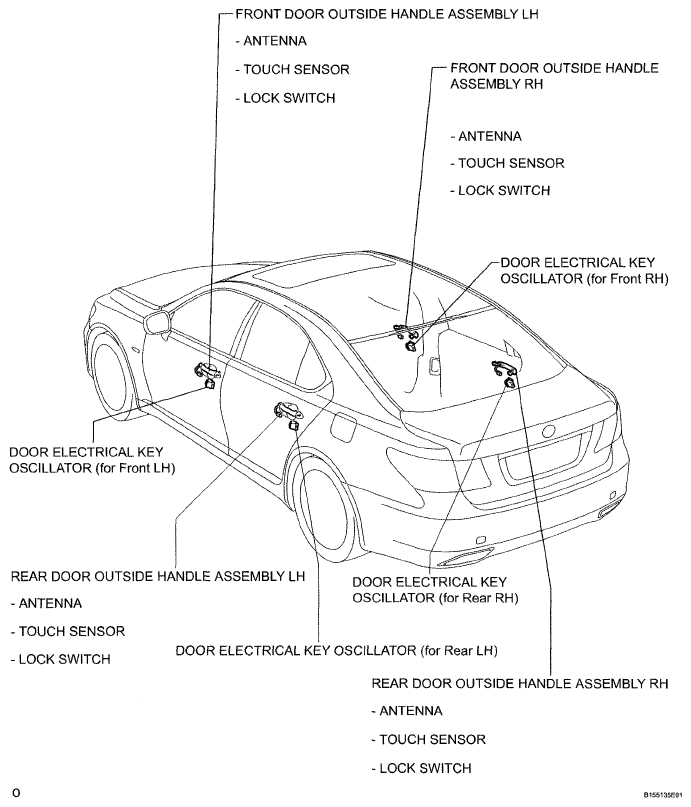

Fig 2: Identifying Smart Access System With Push-Button Start Parts Location (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

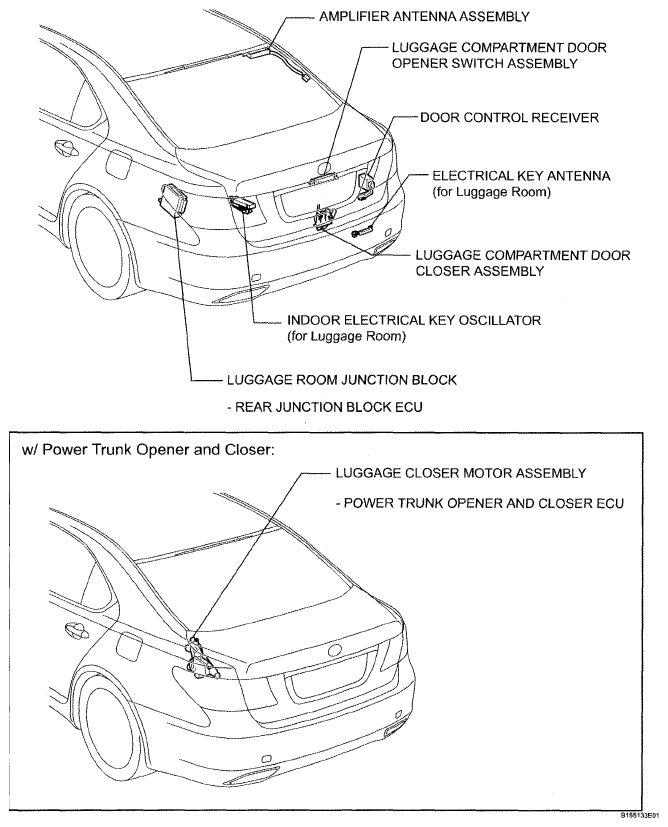

Fig 3: Identifying Smart Access System With Push-Button Start Parts Location (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

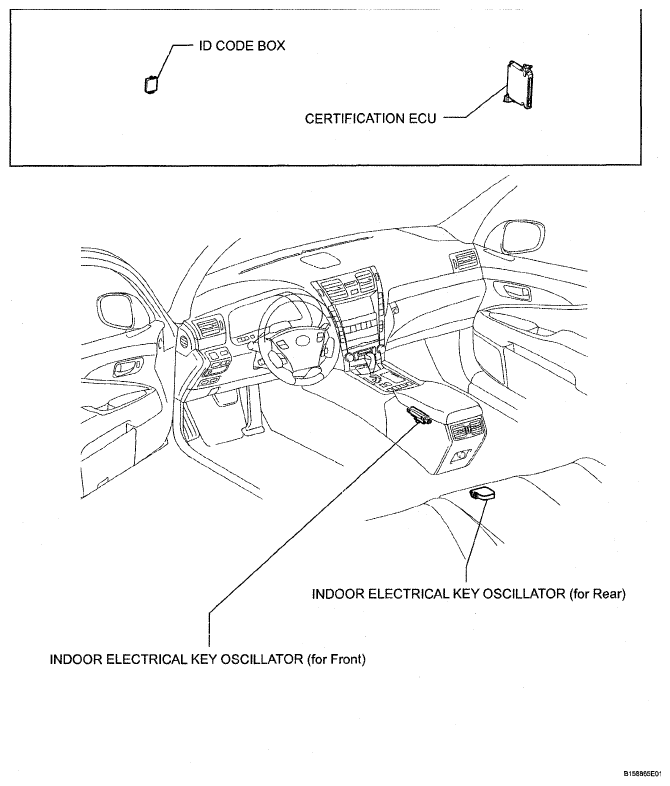

Fig 4: Identifying Smart Access System With Push-Button Start Parts Location (4 Of 6)

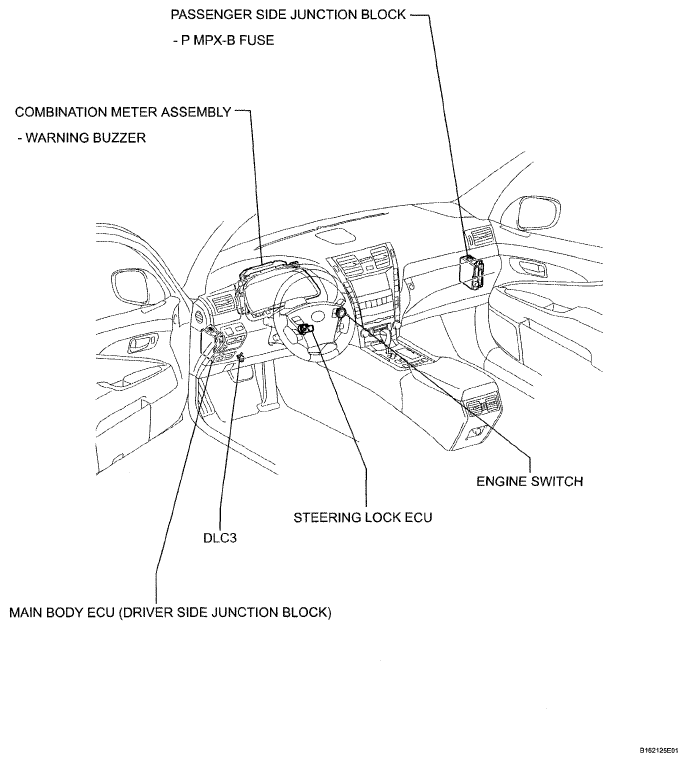

Fig 5: Identifying Smart Access System With Push-Button Start Parts Location (5 Of 6)

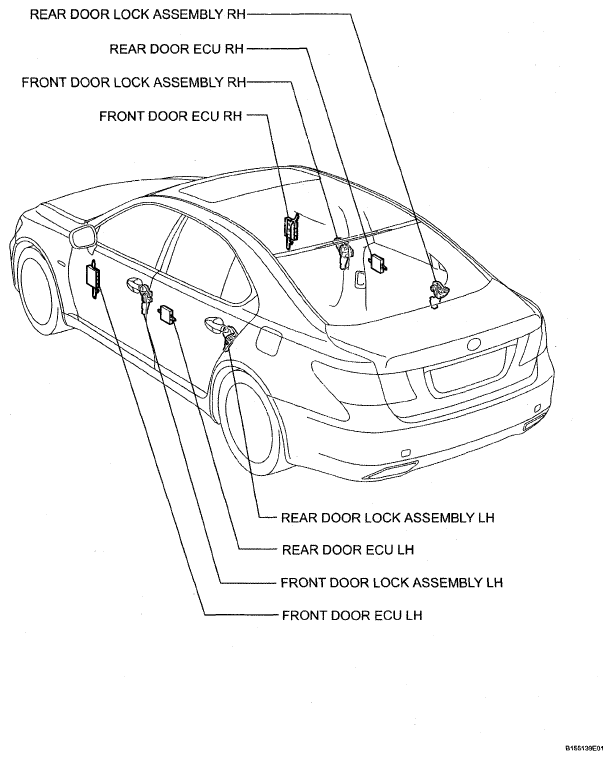

Fig 6: Identifying Smart Access System With Push-Button Start Parts Location (6 Of 6)
