Only Wireless Control Function is Inoperative: Wiring Diagram

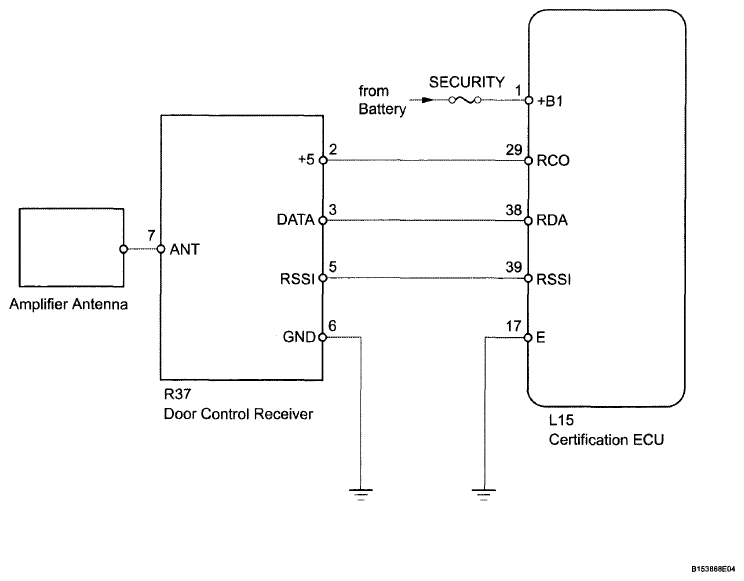

Fig 1: Door Control Receiver And Certification ECU - Wiring Diagram
G06193865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
