Front Shock Absorber: Components

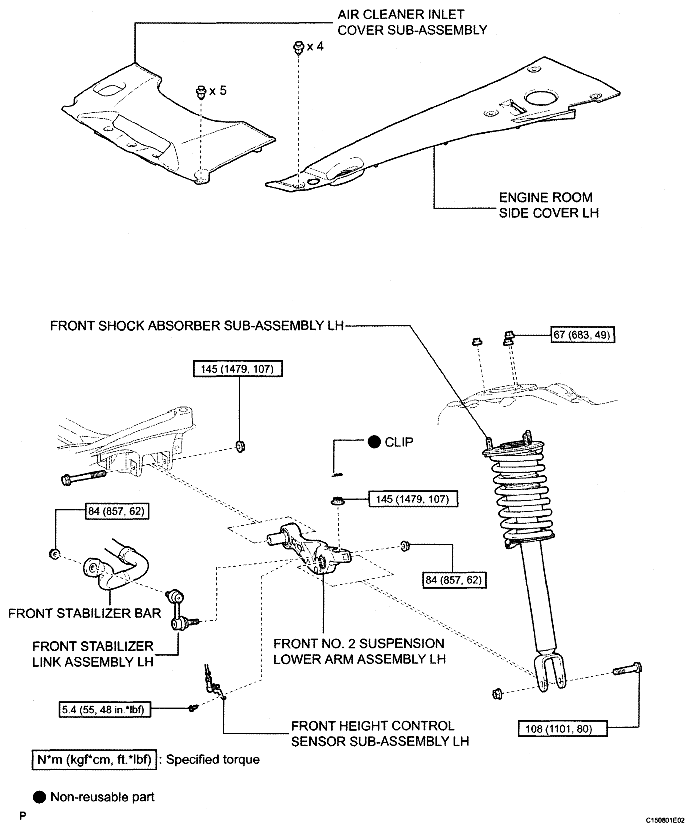

Fig 1: Front Shock Absorber Replacement Components With Torque Specifications (1 Of 3)
G04949339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Front Upper Suspension Arm Replacement Components With Torque Specifications (3 Of 4)
G04949340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

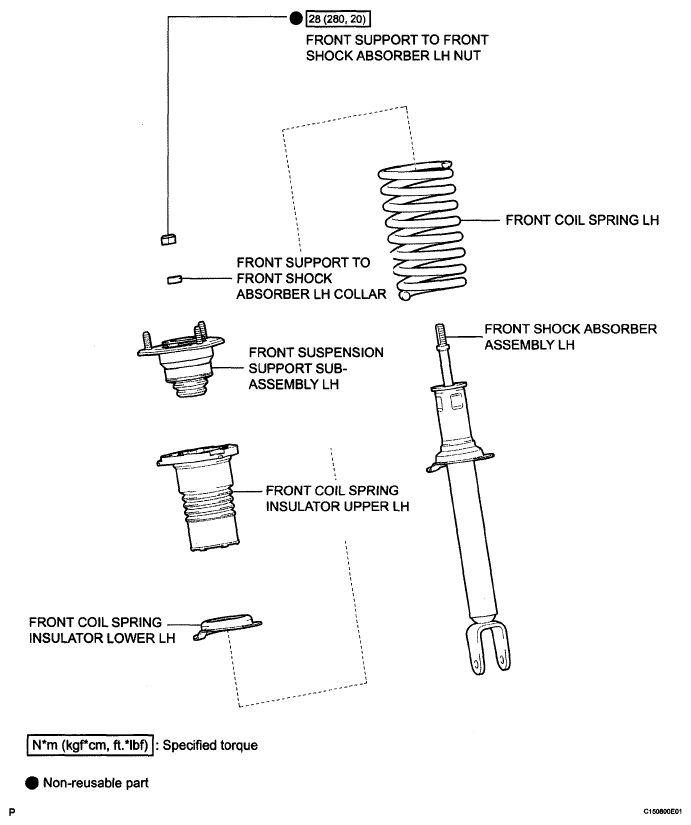

Fig 3: Front Shock Absorber Replacement Components With Torque Specifications (3 Of 3)
G05851093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
