Check Mode Procedure
WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
- LIST OF OPERATION METHODS

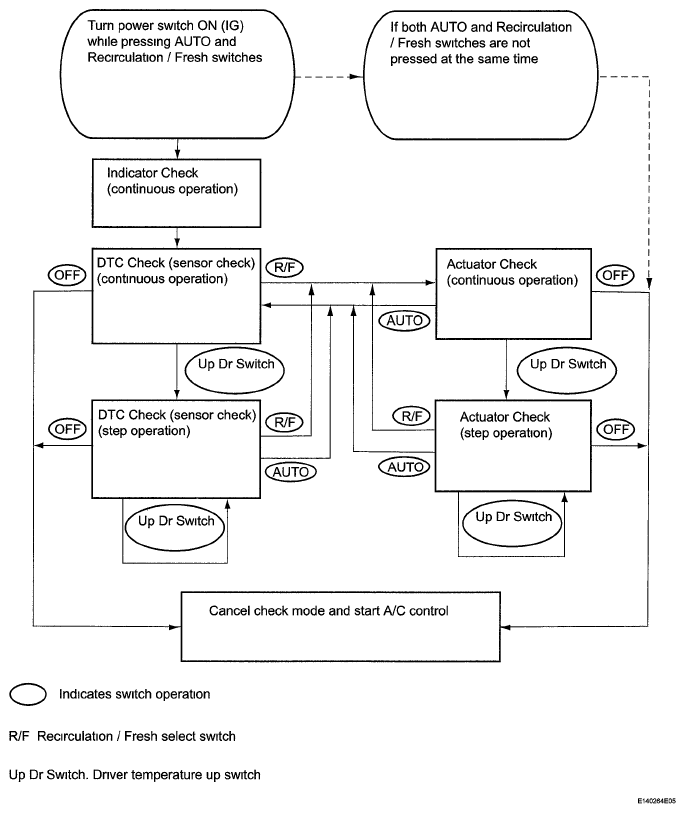

By operating each of the A/C control switches as shown in the diagram below, it is possible to enter the diagnostic check mode.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
