Steering Column Assembly: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

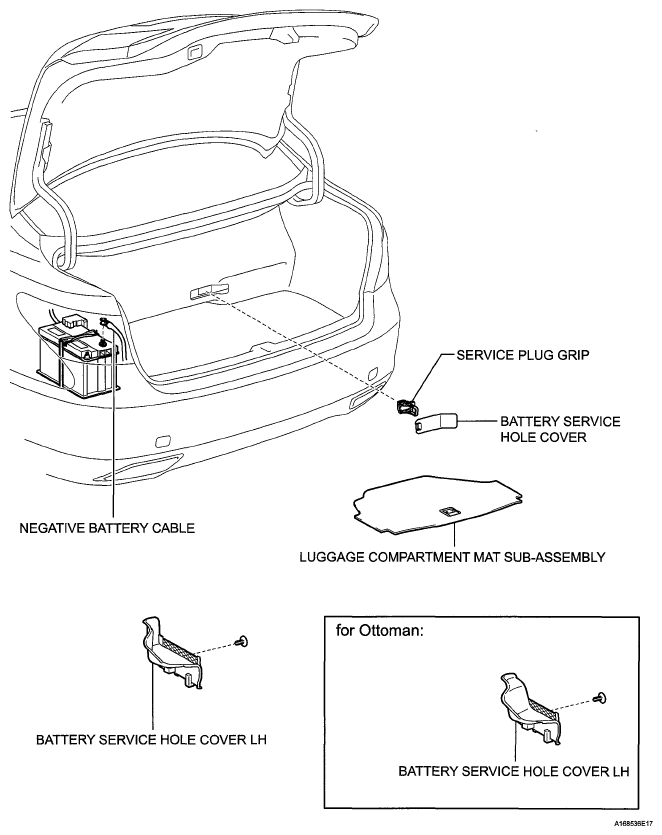

Fig 1: Identifying Trunk Trim, Auxiliary Battery & Service Grip

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

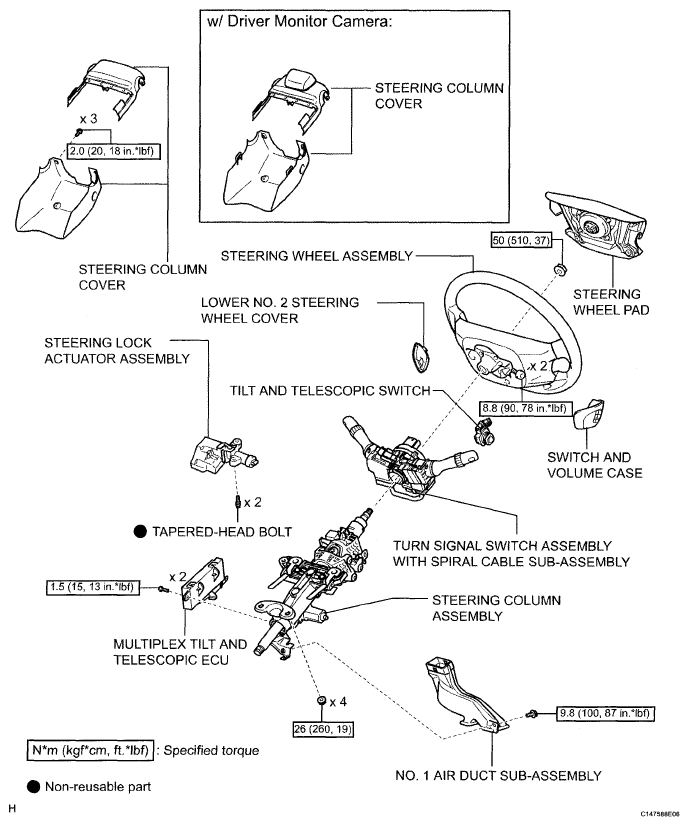

Fig 2: Steering Column Assembly Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Steering Column Assembly Replacement Components With Torque Specifications (2 Of 3)

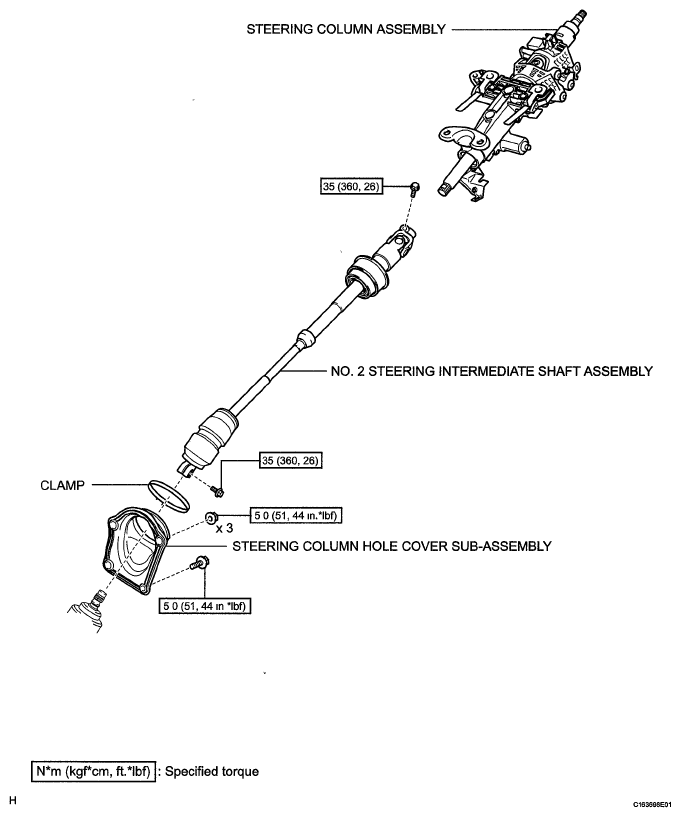

Fig 4: Steering Column Assembly Replacement Components With Torque Specifications (3 Of 3)
