Steering Column Assembly: Disassembly

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE STEERING LOCK ACTUATOR ASSEMBLY
1. Using a center punch, mark the center of the 2 tapered-head bolts.
2. Using a 3 to 4 mm (0.118 to 0.157 in) drill, drill a hole in the 2 bolts

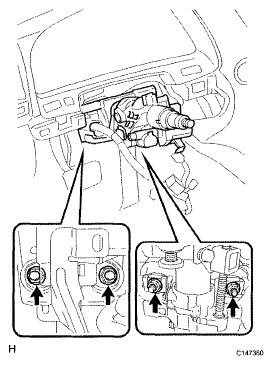

  Fig 1: Locating Tapered-Head Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a screw extractor, remove the 2 bolts and the steering lock actuator assembly from the steering column assembly
Fig 2: Removing Bolts And Steering Lock Actuator Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MULTIPLEX TILT AND TELESCOPIC ECU (See REMOVAL )
