Engine Assembly: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Battery Location

G05771550

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

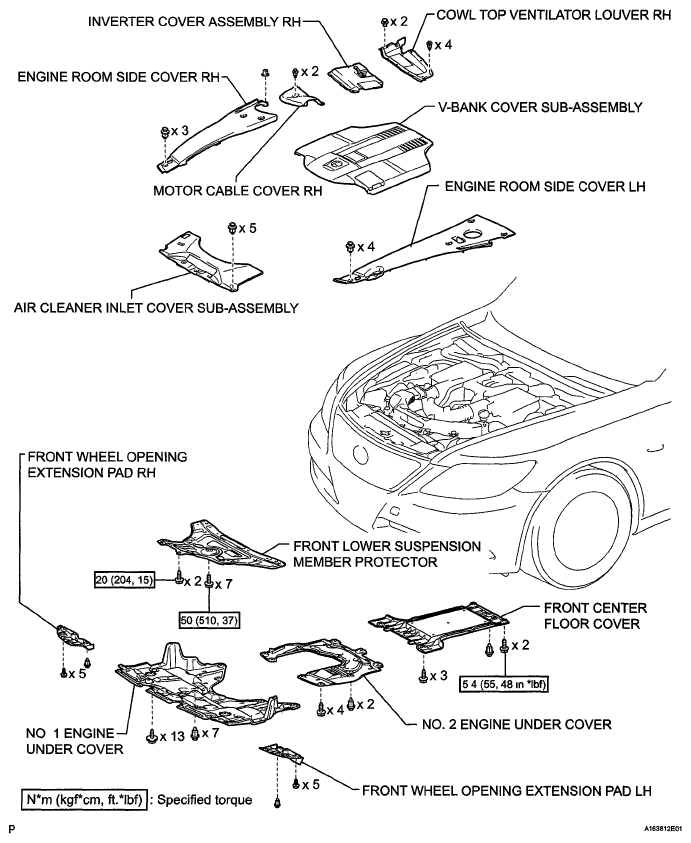

Fig 2: Engine Assembly Replacement Components With Torque Specifications (1 Of 20)

G05771551

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

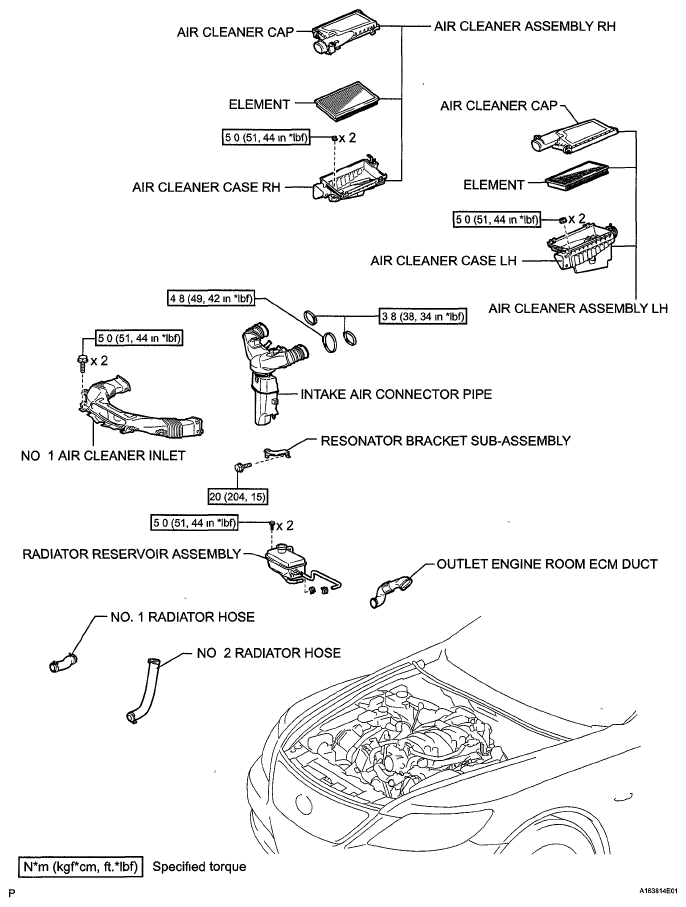

Fig 3: Engine Assembly Replacement Components With Torque Specifications (2 Of 20)

G05771552

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

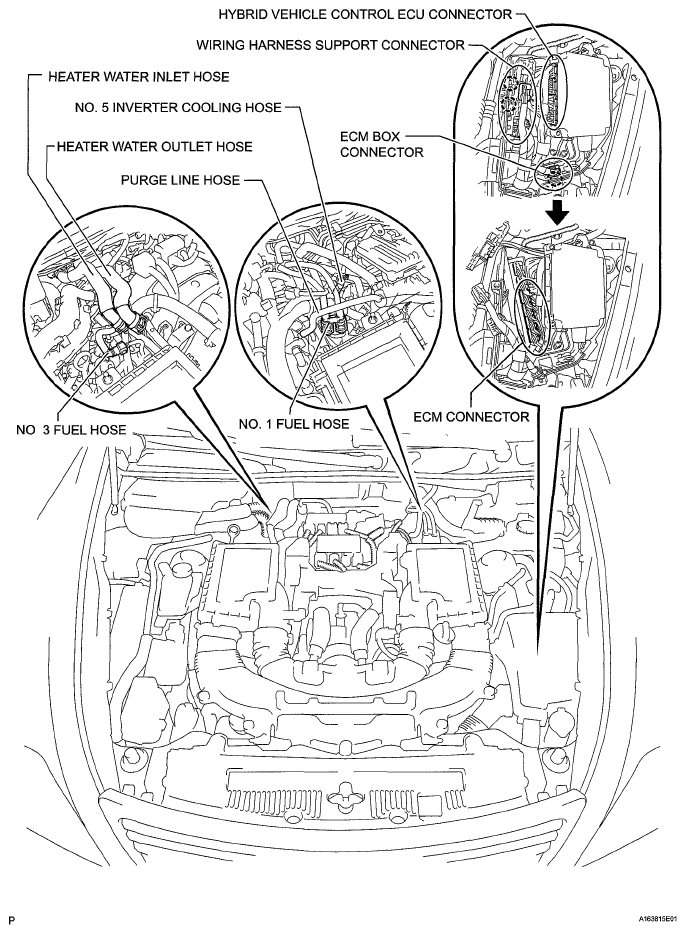

Fig 4: Engine Assembly Replacement Components With Torque Specifications (3 Of 20)

G05771553

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

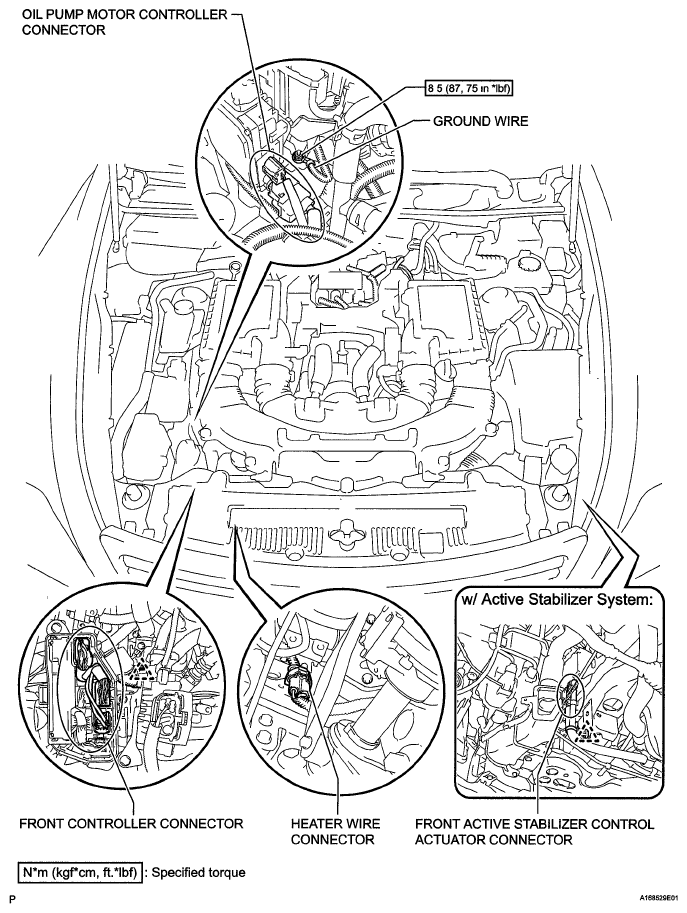

Fig 5: Engine Assembly Replacement Components With Torque Specifications (4 Of 20)

G05771554

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

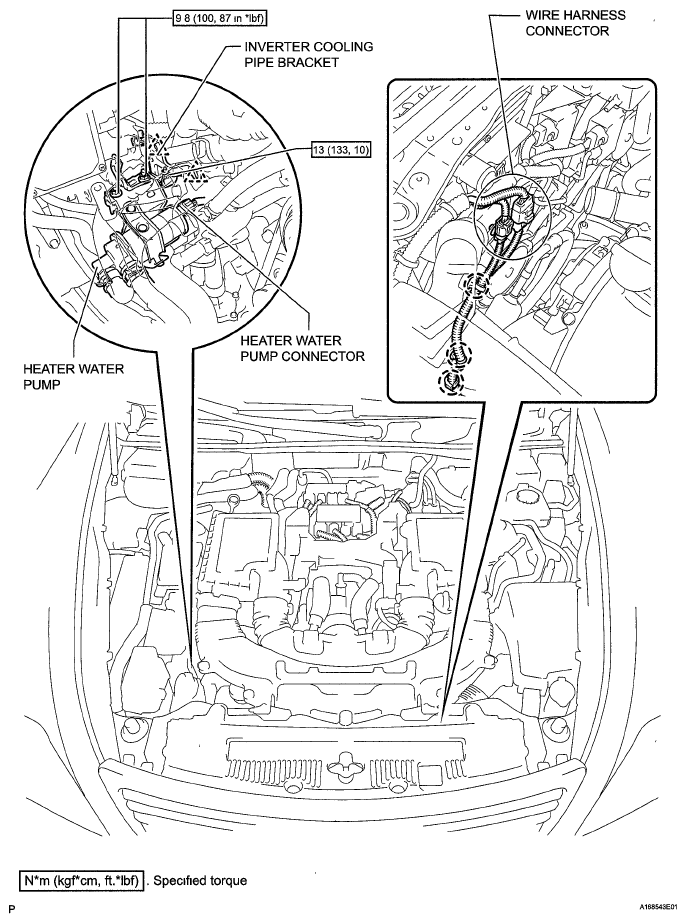

Fig 6: Engine Assembly Replacement Components With Torque Specifications (5 Of 20)

G05771555

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

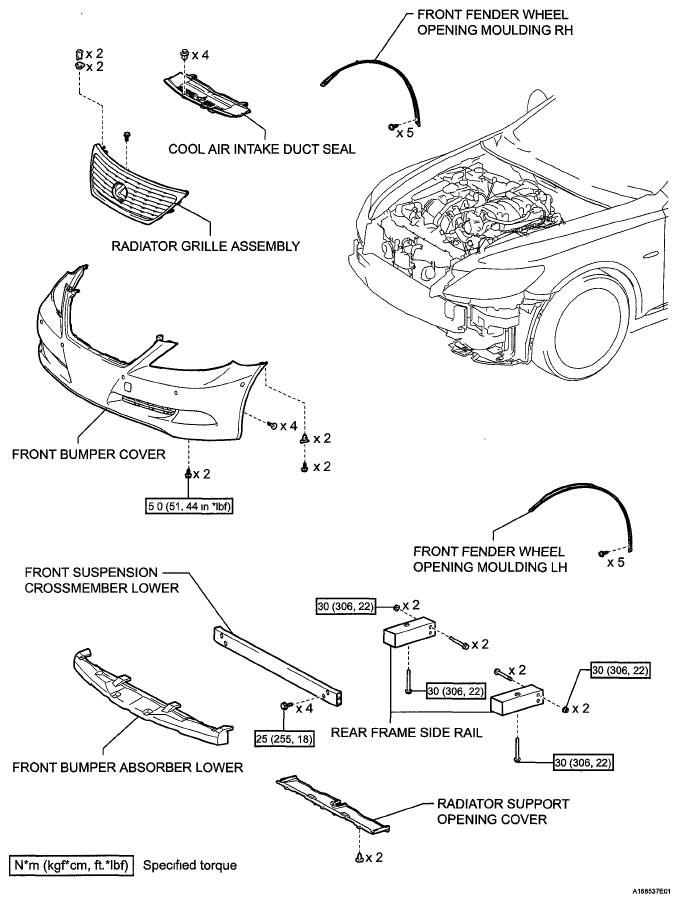

Fig 7: Engine Assembly Replacement Components With Torque Specifications (6 Of 20)

G05771556

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

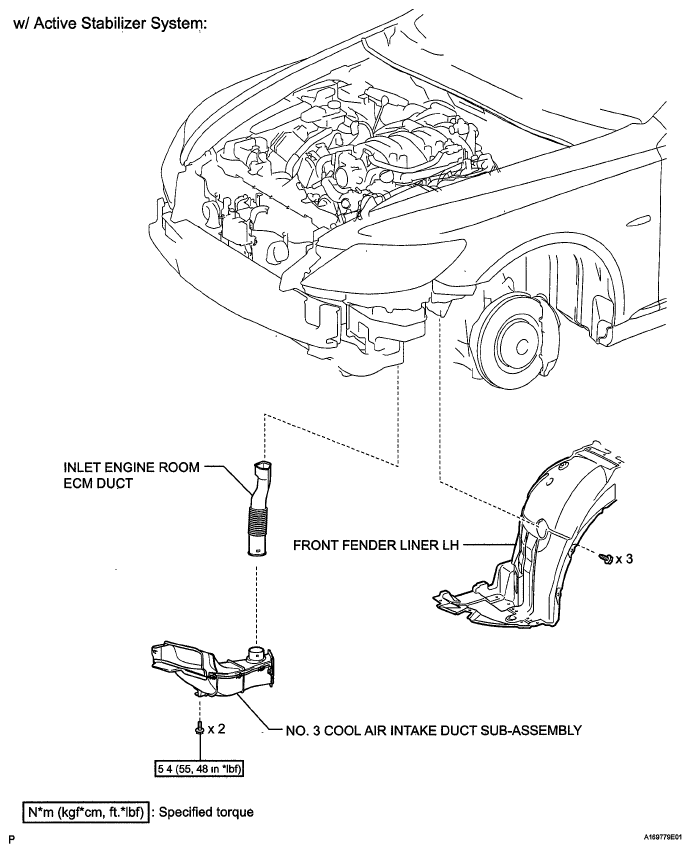

Fig 8: Engine Assembly Replacement Components With Torque Specifications (7 Of 20)

G05771557

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

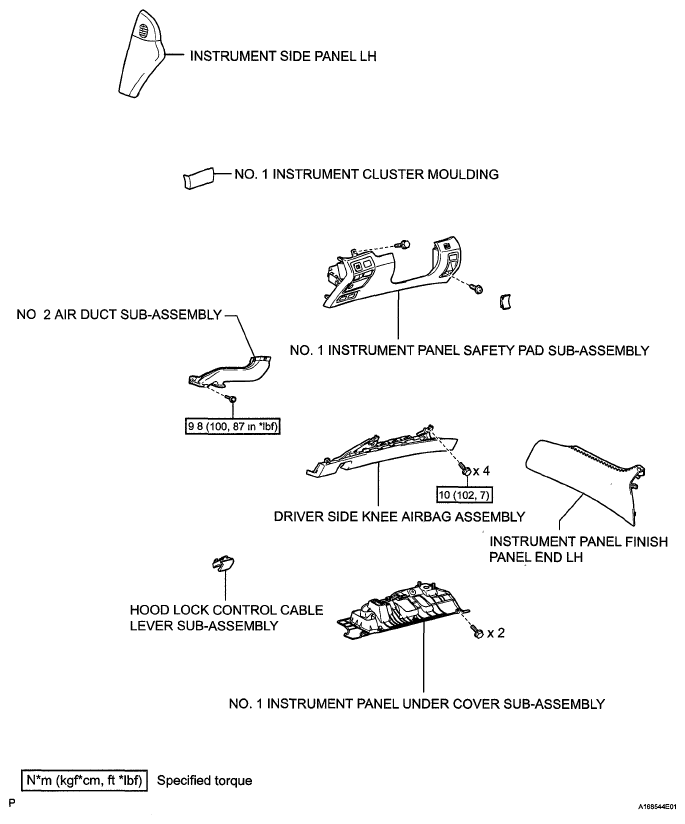

Fig 9: Engine Assembly Replacement Components With Torque Specifications (8 Of 21)

G05771558

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

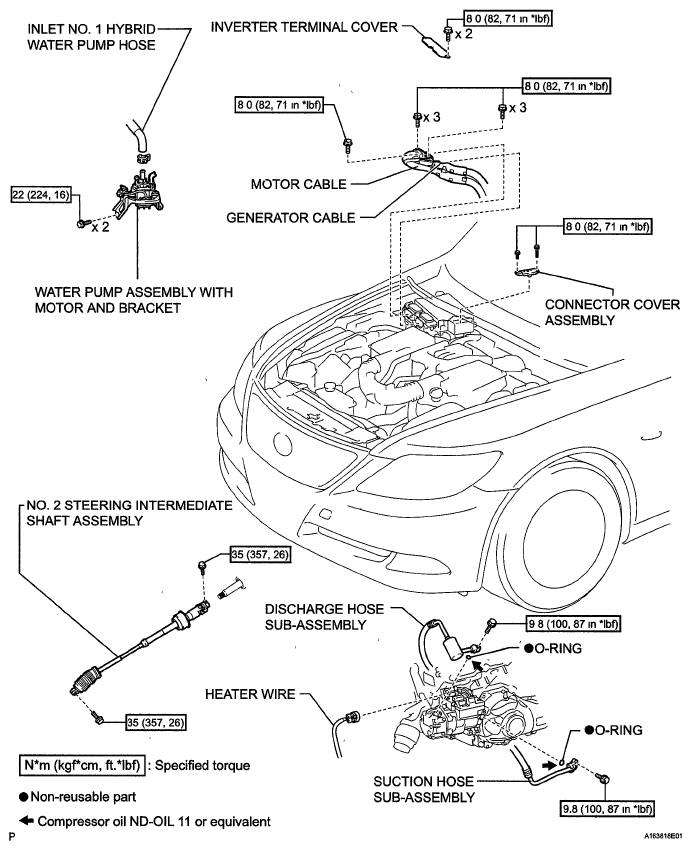

Fig 10: Engine Assembly Replacement Components With Torque Specifications (9 Of 21)

G05771559

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

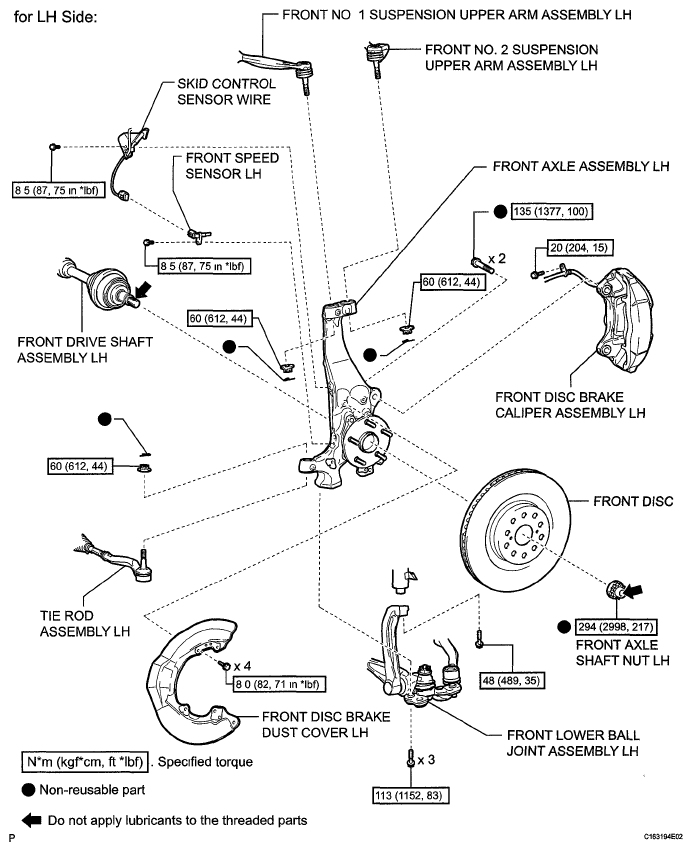

Fig 11: Engine Assembly Replacement Components With Torque Specifications (10 Of 21)

G05771560

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

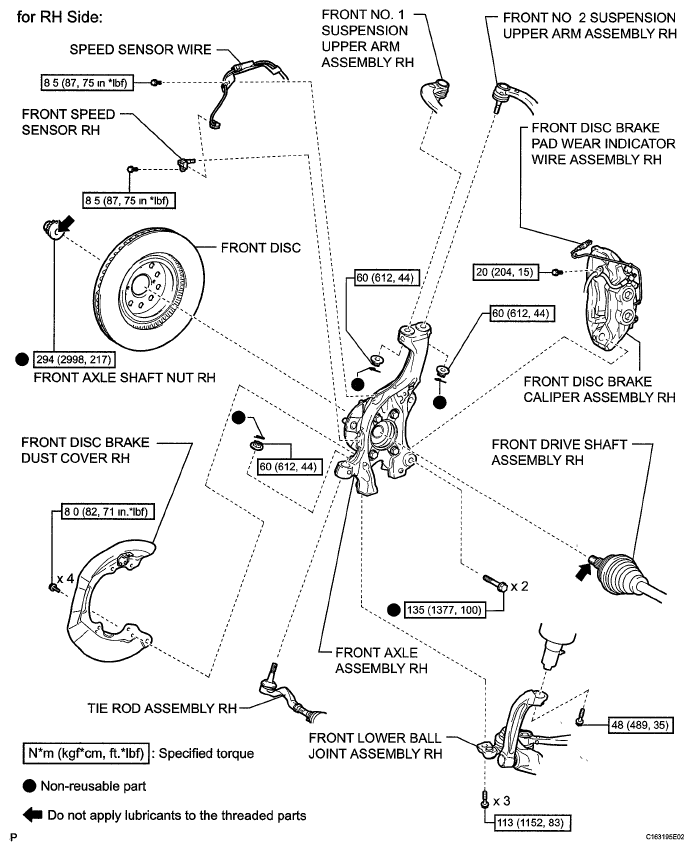

Fig 12: Engine Assembly Replacement Components With Torque Specifications (11 Of 20)

G05771561

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

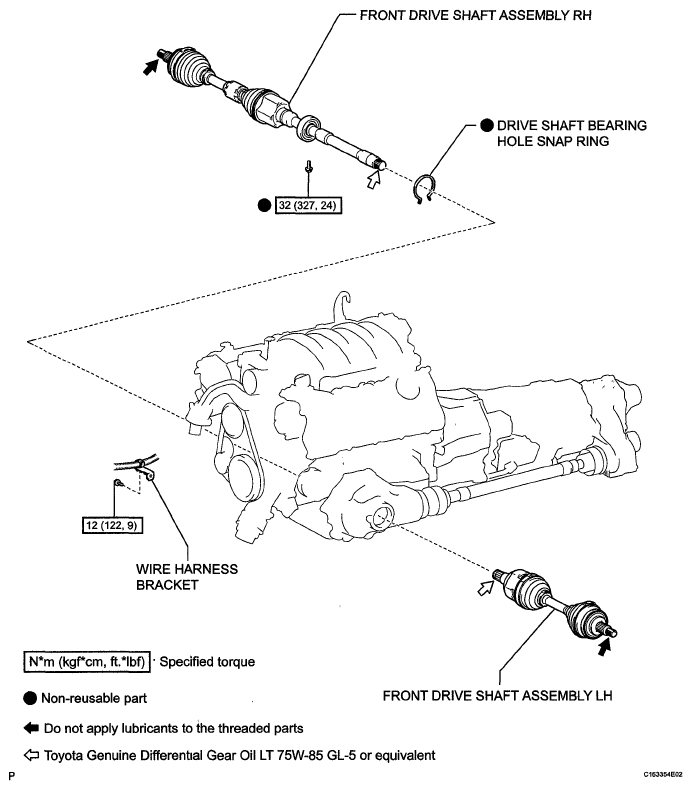

Fig 13: Engine Assembly Replacement Components With Torque Specifications (12 Of 20)

G05771562

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Engine Assembly Replacement Components With Torque Specifications (13 Of 20)

G05771563

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

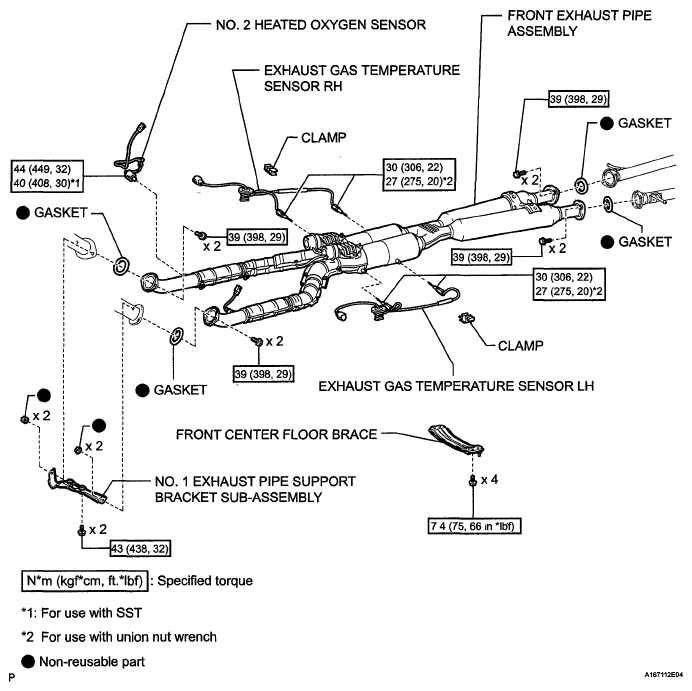

Fig 15: Engine Assembly Replacement Components With Torque Specifications (14 Of 20)

G05771564

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

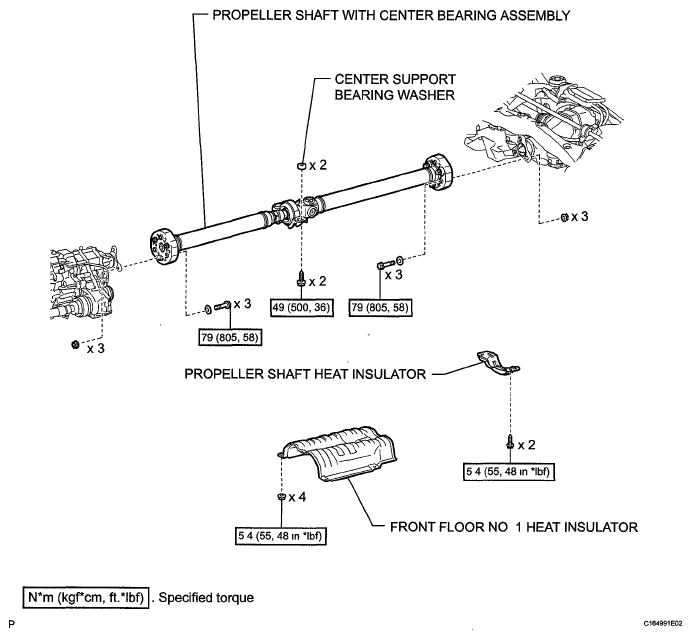

Fig 16: Engine Assembly Replacement Components With Torque Specifications (15 Of 20)

G05771565

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

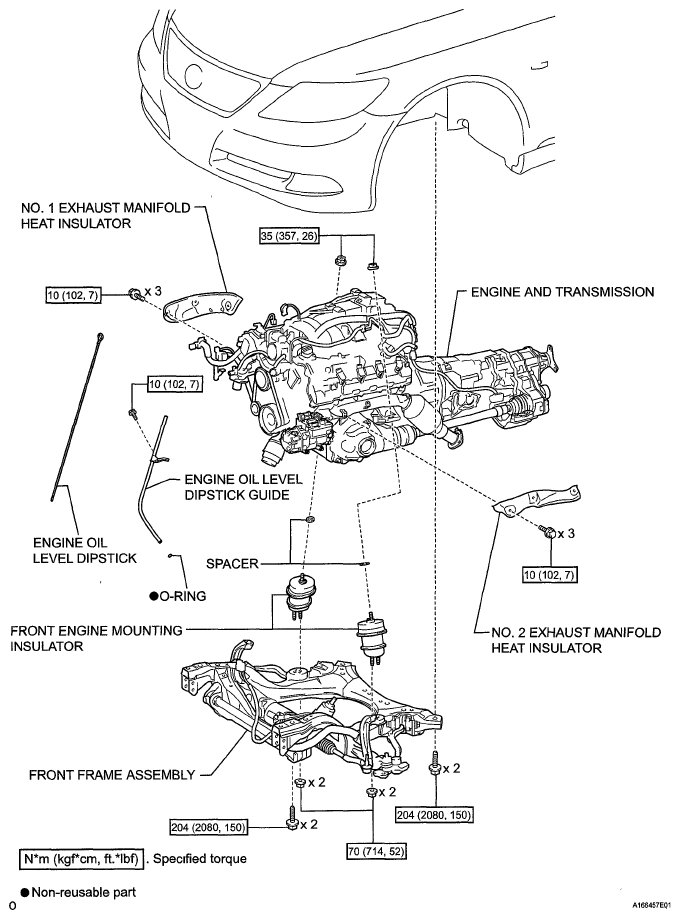

Fig 17: Engine Assembly Replacement Components With Torque Specifications (16 Of 20)

G05771566

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

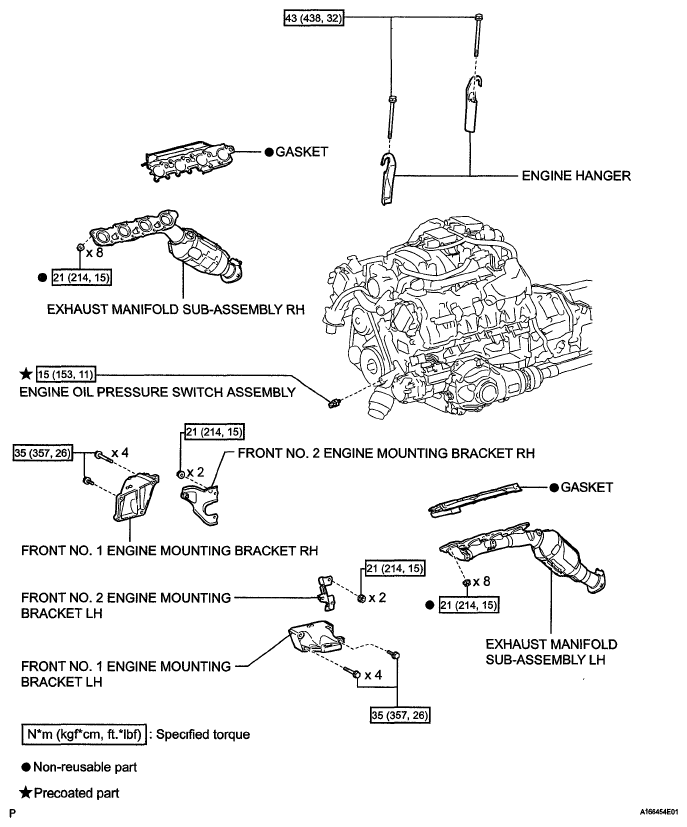

Fig 18: Engine Assembly Replacement Components With Torque Specifications (17 Of 20)

G05771567

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Engine Assembly Replacement Components With Torque Specifications (18 Of 20)

G05771568

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

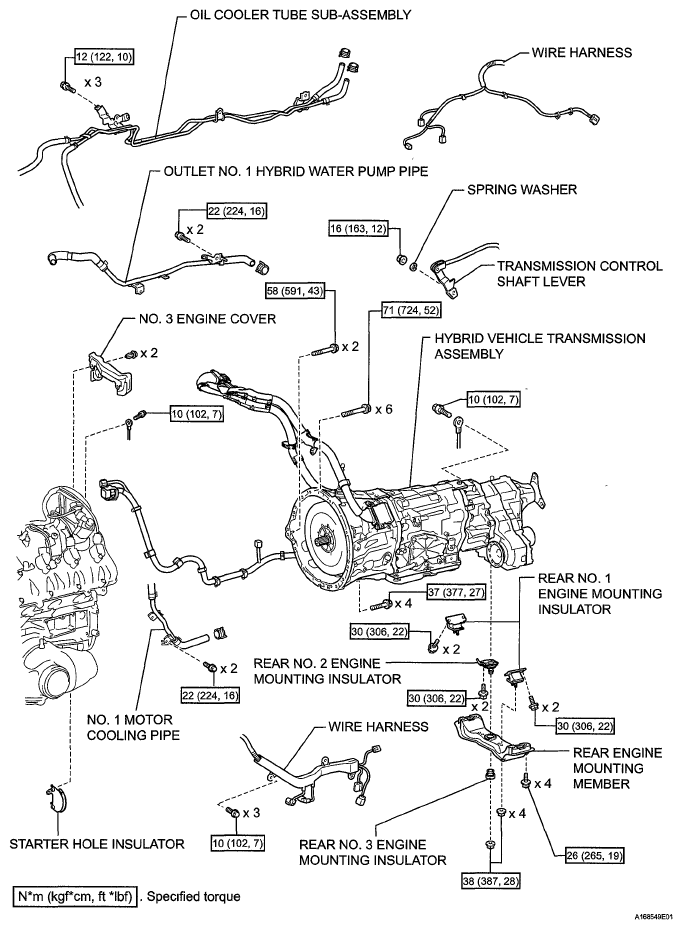

Fig 20: Engine Assembly Replacement Components With Torque Specifications (19 Of 20)

G05771569

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

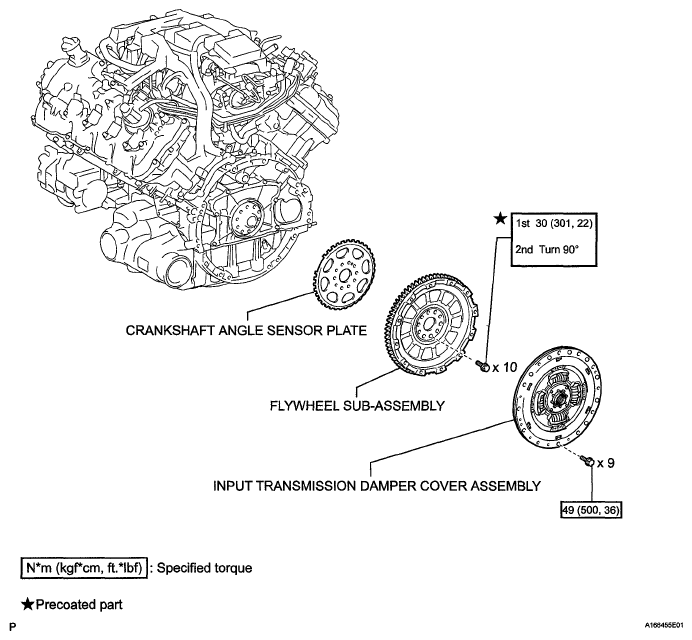

Fig 21: Engine Assembly Replacement Components With Torque Specifications (20 Of 20)

G05771570

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
