Engine Unit: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

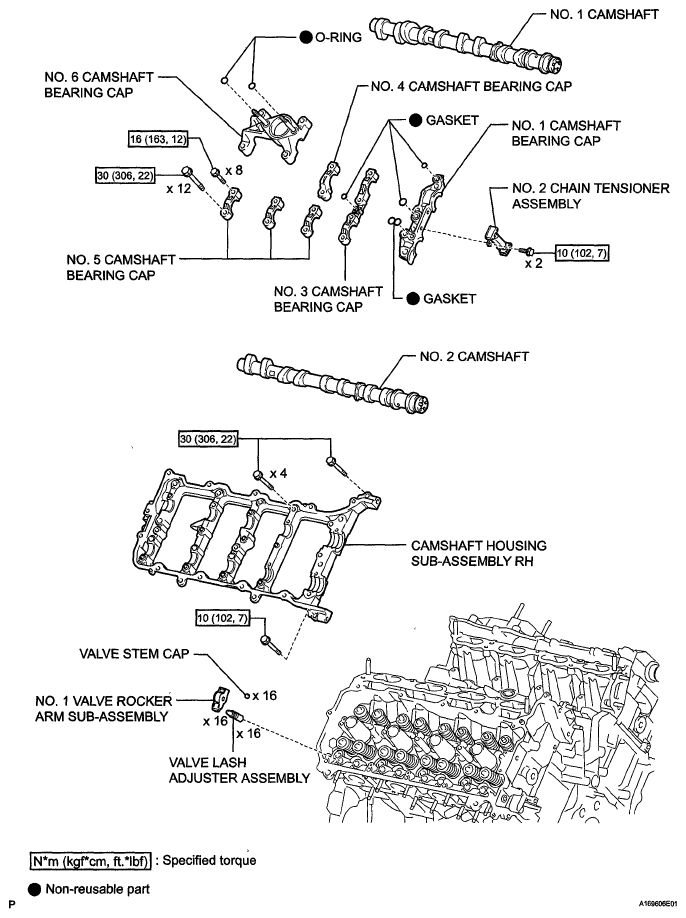

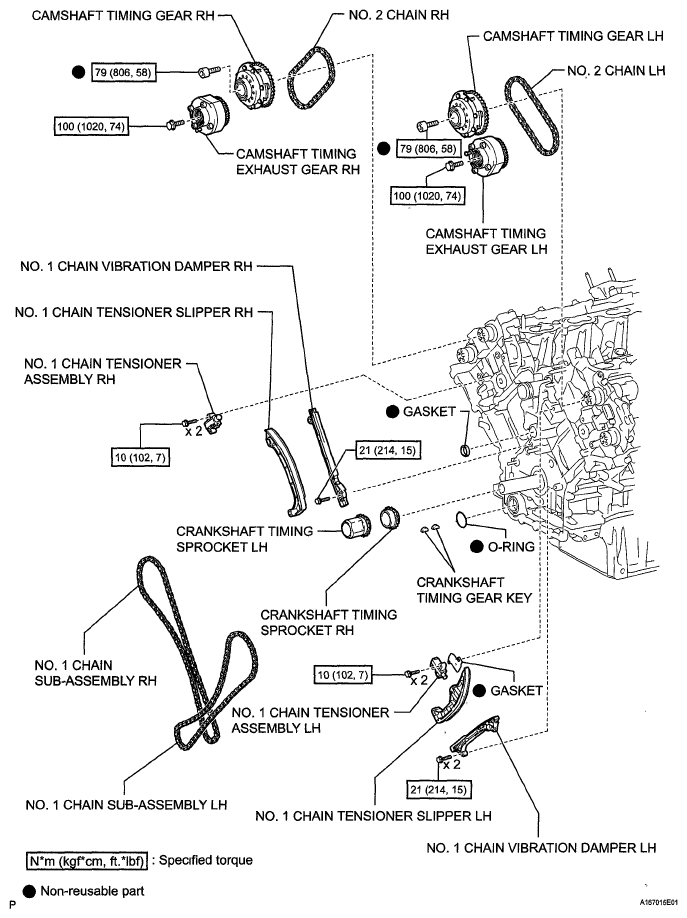

Fig 1: Engine Unit Components With Torque Specifications (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

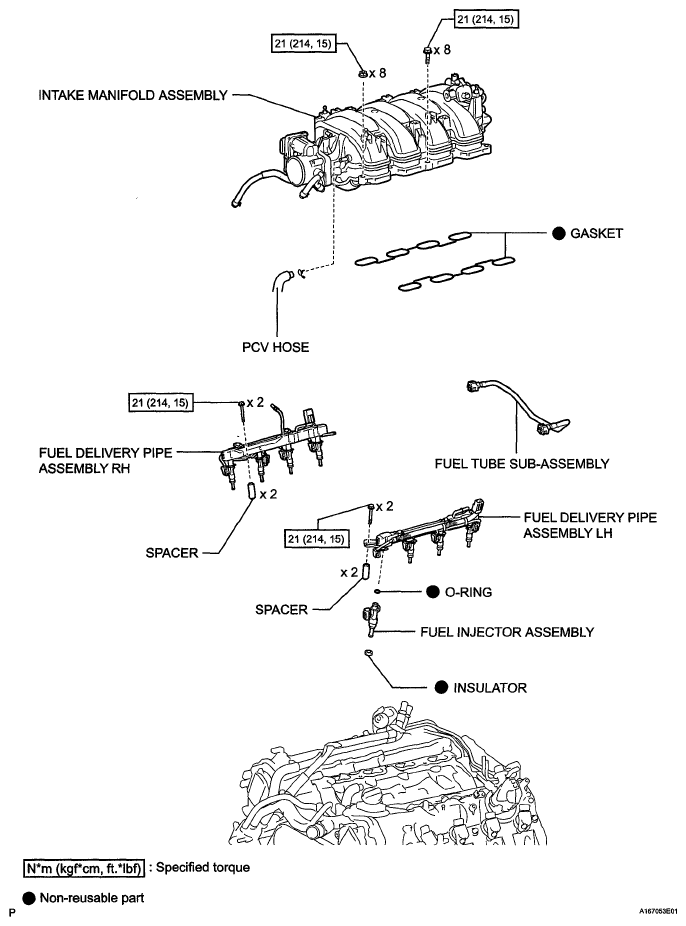

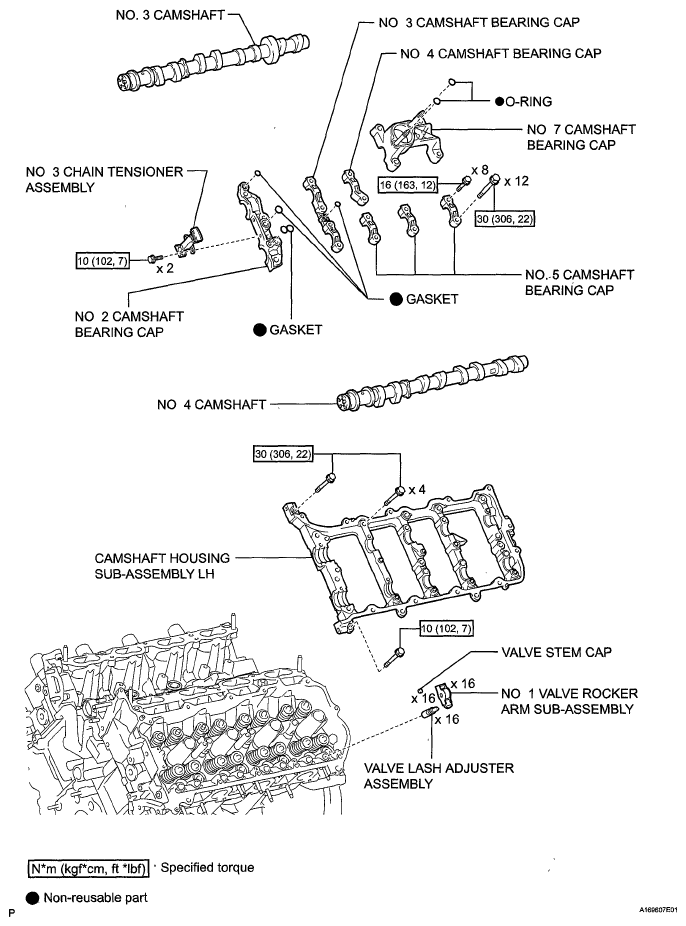

Fig 2: Engine Unit Components With Torque Specifications (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

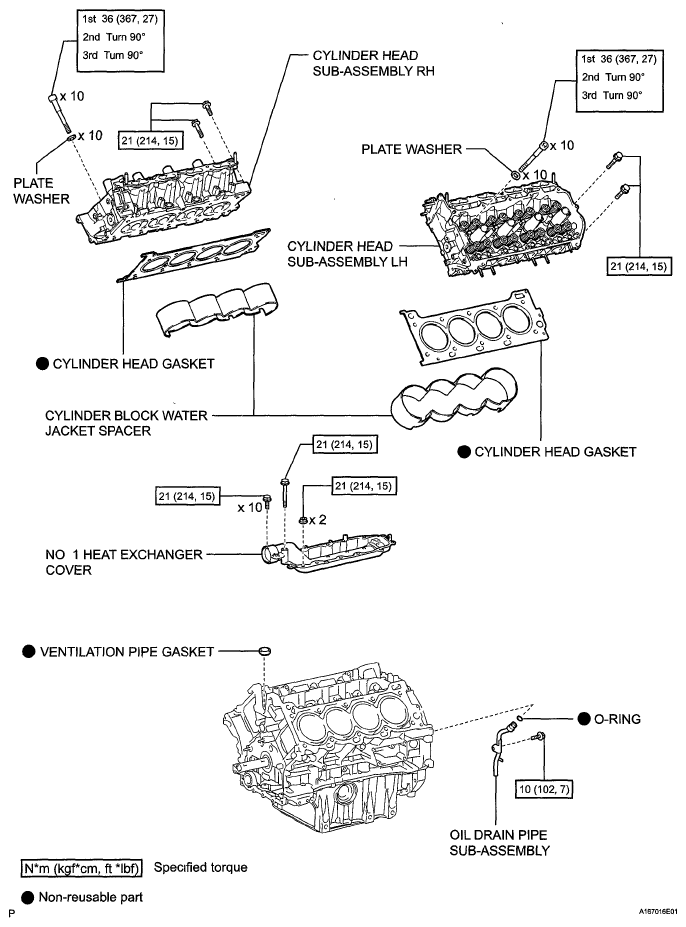

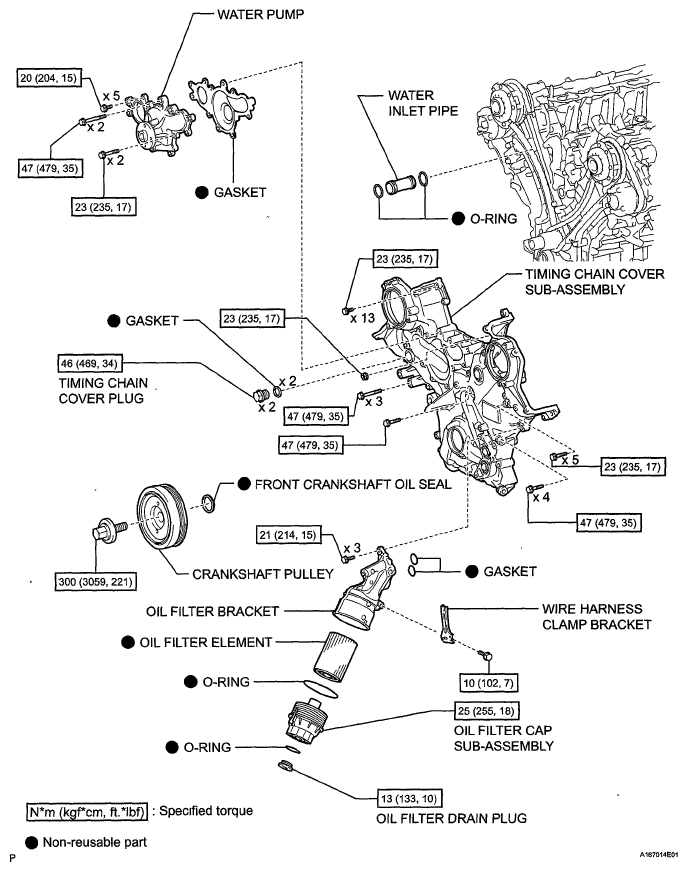

Fig 3: Engine Unit Components With Torque Specifications (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

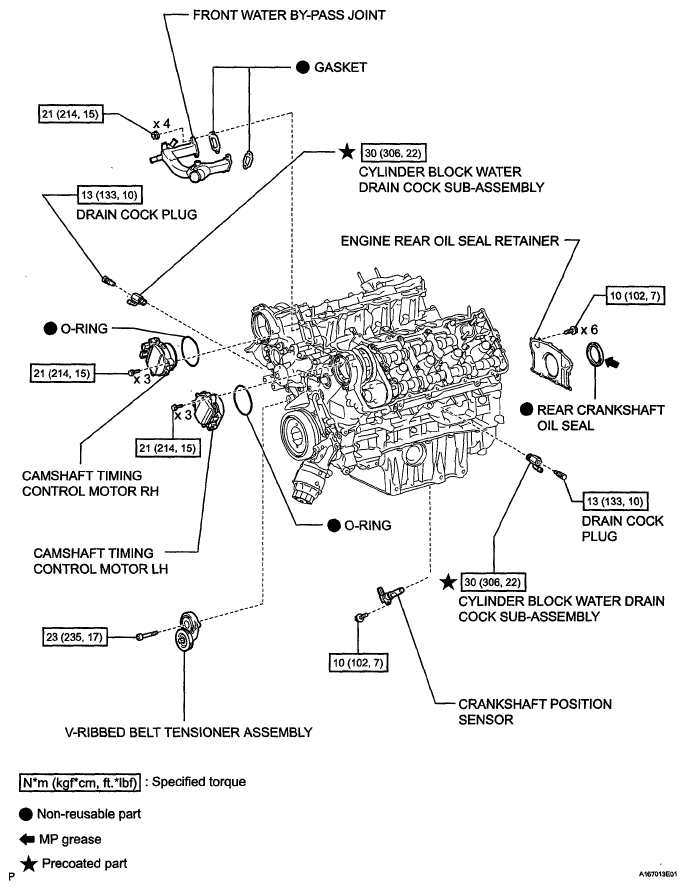

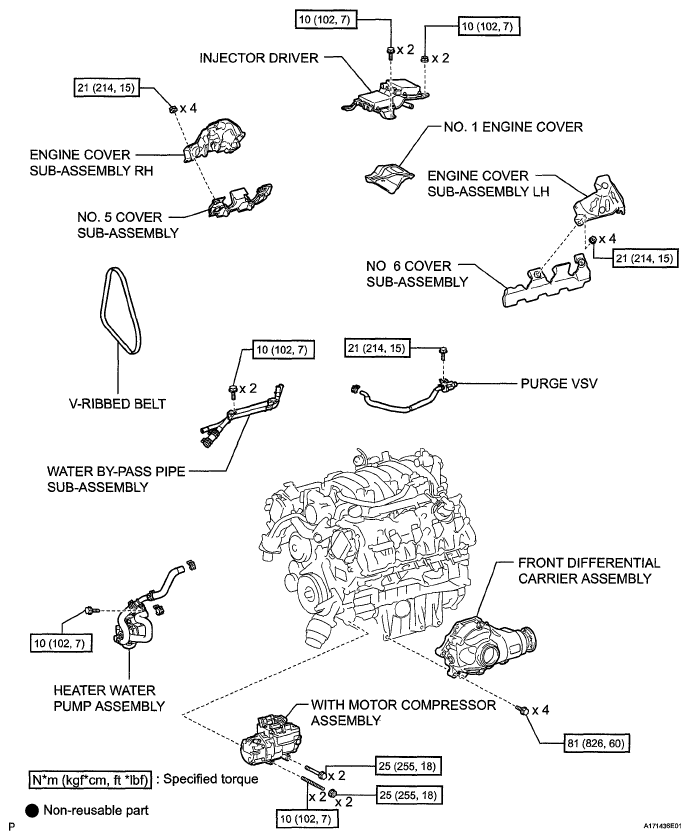

Fig 4: Engine Unit Components With Torque Specifications (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

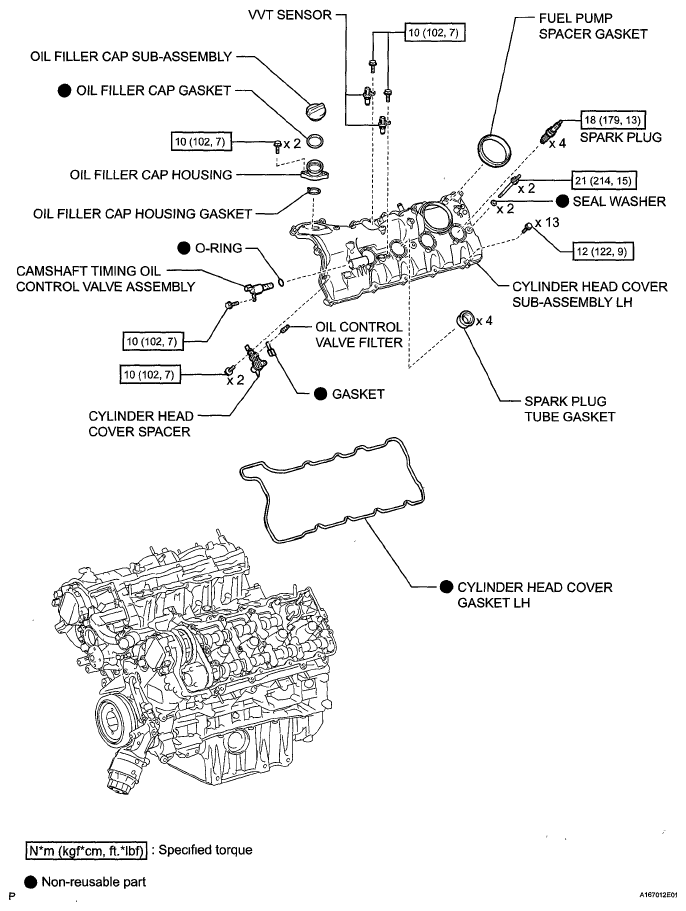

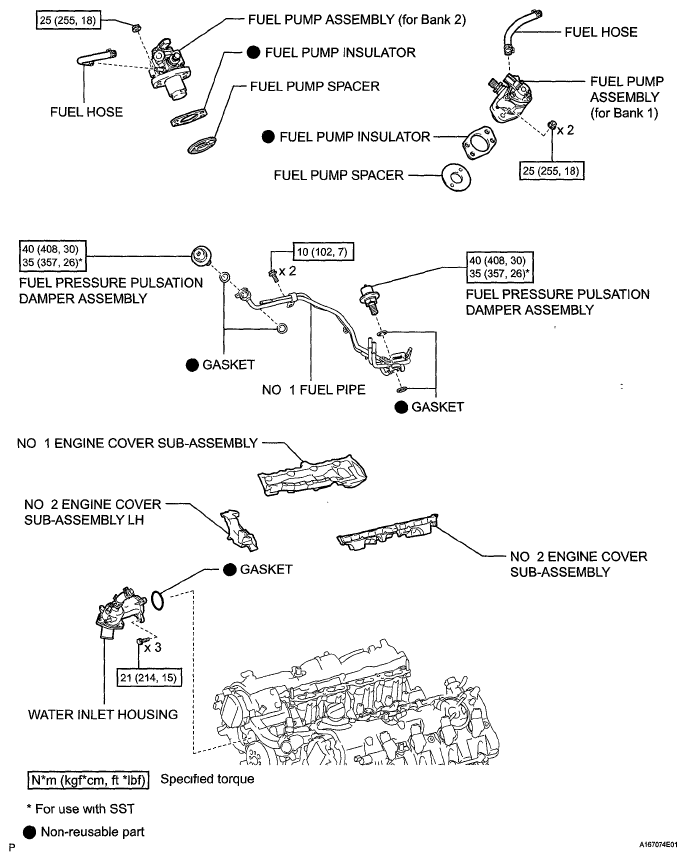

Fig 5: Engine Unit Components With Torque Specifications (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

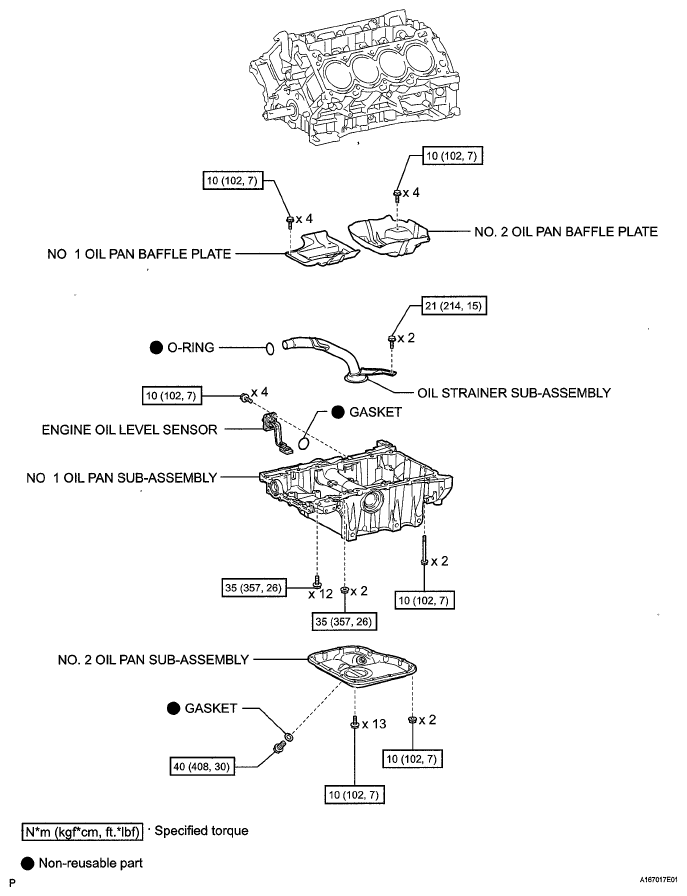

Fig 6: Engine Unit Components With Torque Specifications (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

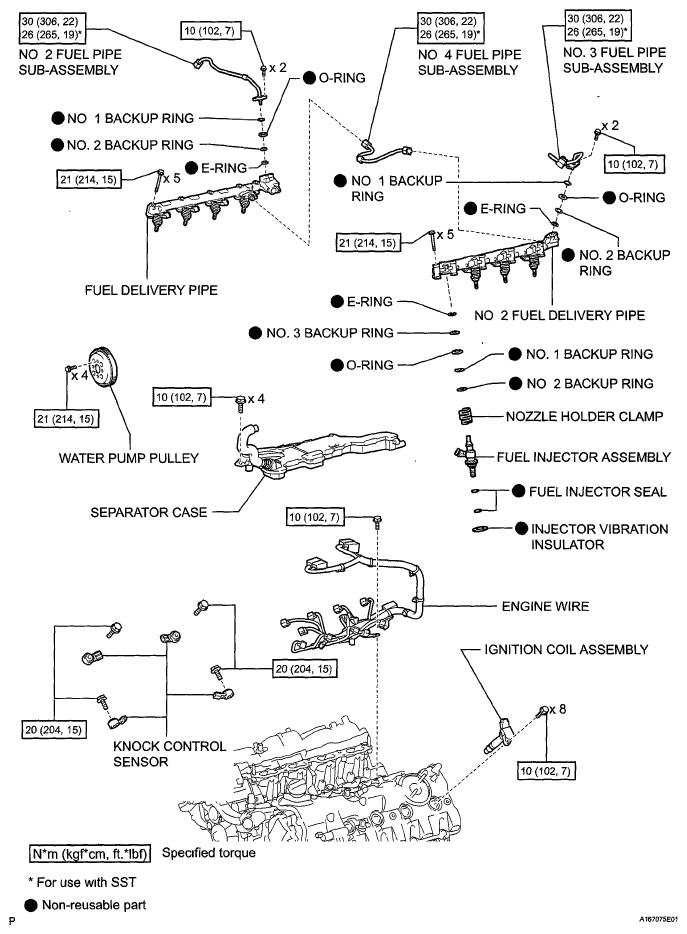

Fig 7: Engine Unit Components With Torque Specifications (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

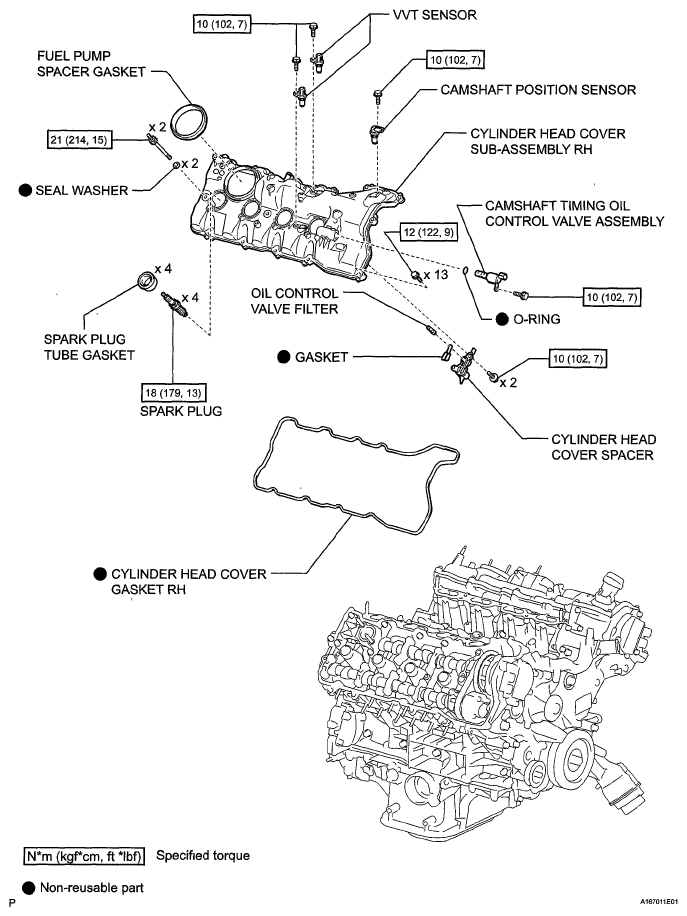

Fig 8: Engine Unit Components With Torque Specifications (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Unit Components With Torque Specifications (9 Of 13)

Fig 10: Engine Unit Components With Torque Specifications (10 Of 13)

Fig 11: Engine Unit Components With Torque Specifications (11 Of 13)

Fig 12: Engine Unit Components With Torque Specifications (12 Of 13)

Fig 13: Engine Unit Components With Torque Specifications (13 Of 13)
