Removal

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE NO. 2 STEERING WHEEL COVER LOWER





3. REMOVE SWITCH AND VOLUME CASE

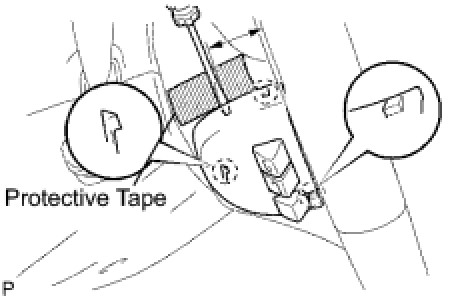

(a) Apply protective tape to the steering wheel boss cover lower as shown in the illustration.
(b) Using a screwdriver, detach the 3 claws and remove the case.
HINT: Tape the screwdriver tip before use.





4. REMOVE STEERING PAD SWITCH MODULATOR

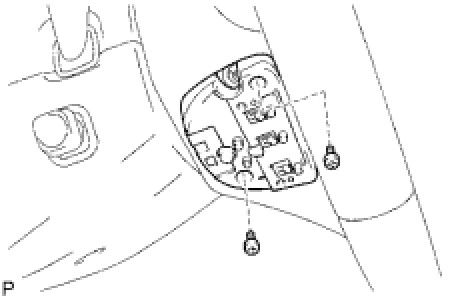

(a) Remove the 2 screws.
(b) Remove the modulator and then disconnect the connector.
5. REMOVE STEERING PAD ASSEMBLY Removal
6. REMOVE STEERING WHEEL ASSEMBLY Removal
7. REMOVE CRUISE CONTROL MAIN SWITCH ASSEMBLY

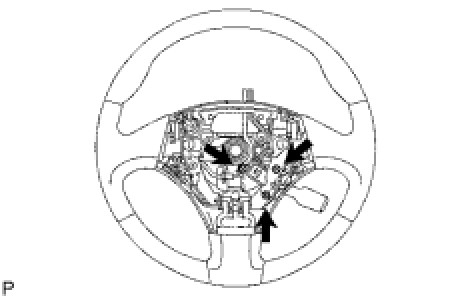

(a) Remove the 3 screws.





(b) Reverse the steering wheel and remove the 3 screws.
(c) Remove the steering wheel boss cover lower and switch.
