Removal

3UZ-FE ENGINE CONTROL SYSTEM: VVT SENSOR: REMOVAL

REMOVAL

1. DISCHARGE FUEL SYSTEM PRESSURE
2. DRAIN ENGINE COOLANT Service and Repair
3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

4. REMOVE V-BANK COVER Removal
5. REMOVE NO. 1 AIR CLEANER INLET Removal
6. REMOVE INTAKE AIR CONNECTOR PIPE Removal
7. REMOVE INTAKE MANIFOLD
(a) Remove the intake manifold Removal.

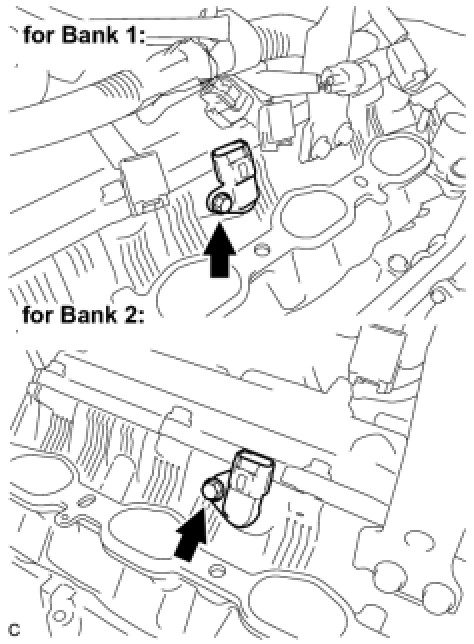

8. REMOVE VVT SENSOR
(a) Remove the 2 bolts and 2 sensors.
