Mirror Heater does not Operate with Rear Defogger Switch: Wiring Diagram

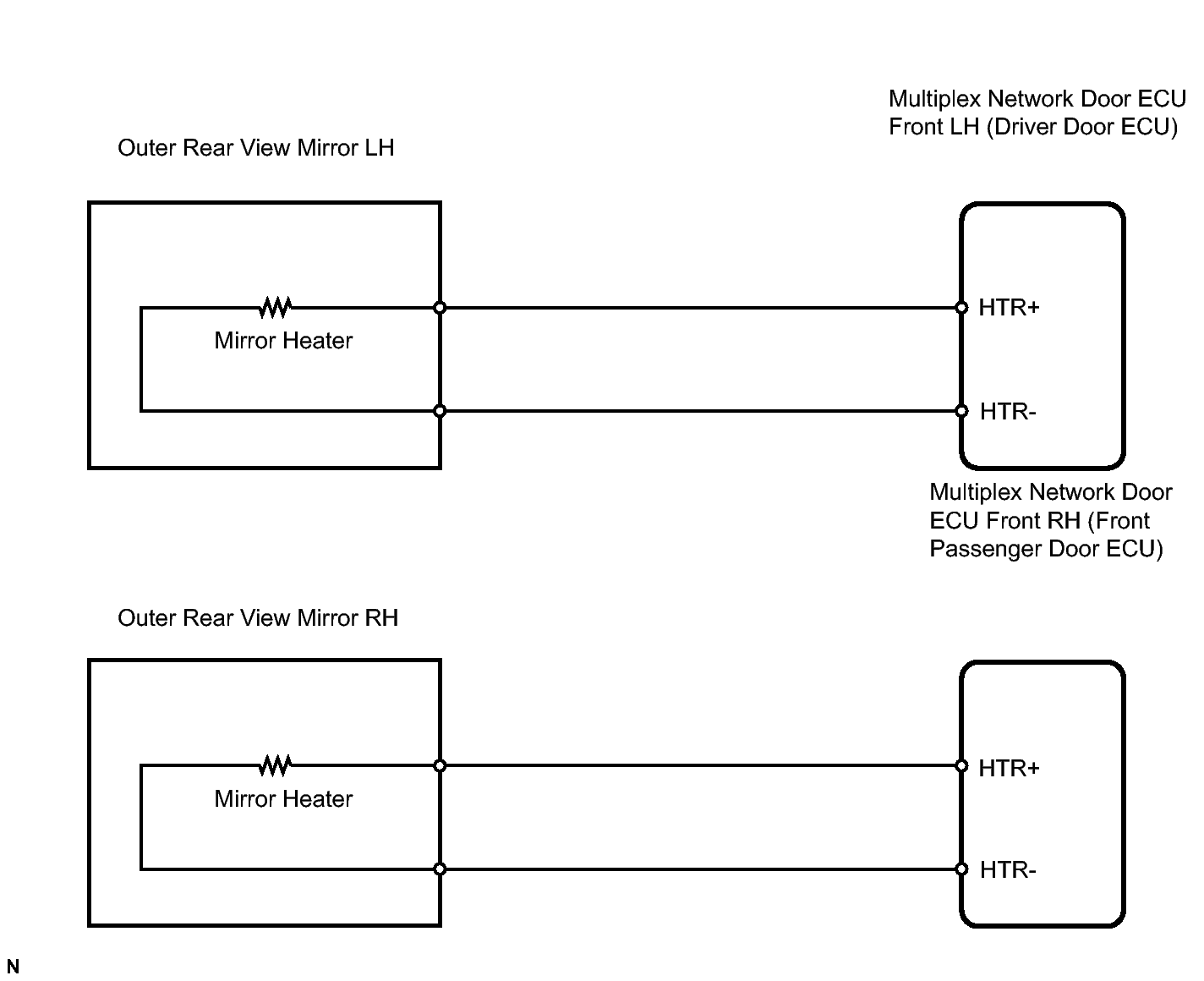

Fig 1: Mirror Heater Circuit - Wiring Diagram
GTY124378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
