Dynamic Radar Cruise Control (1UR-FSE): Notes

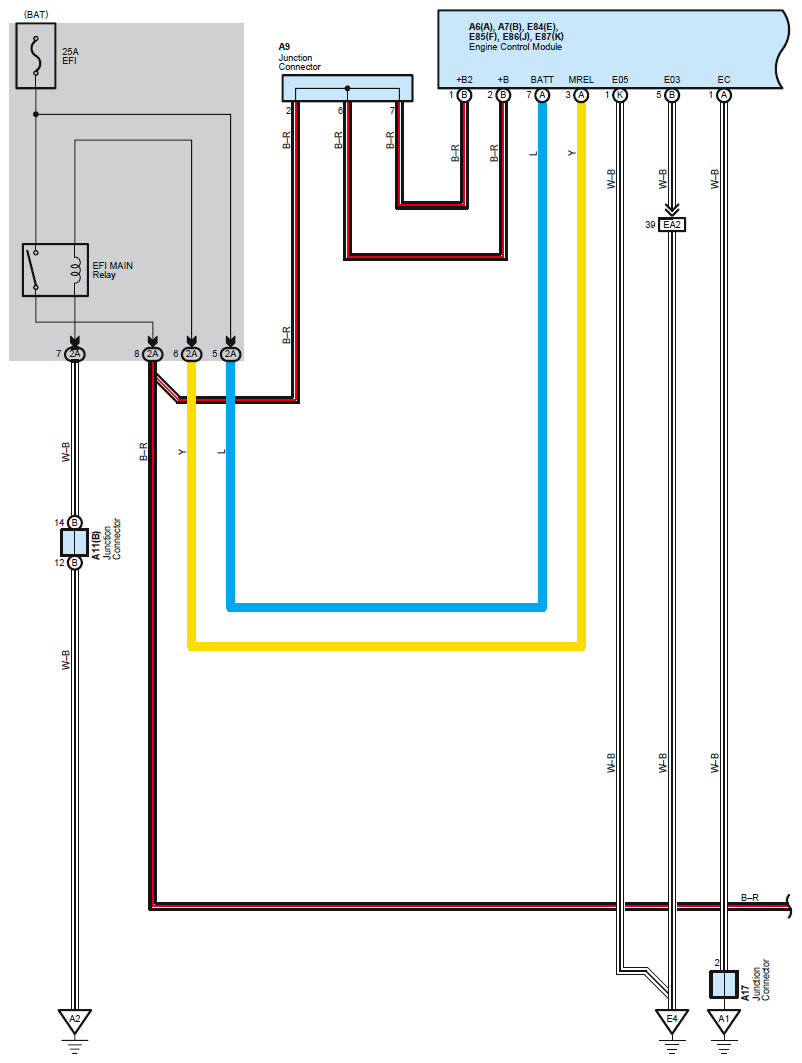

Fig 1: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (1 Of 24)

G07578995

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

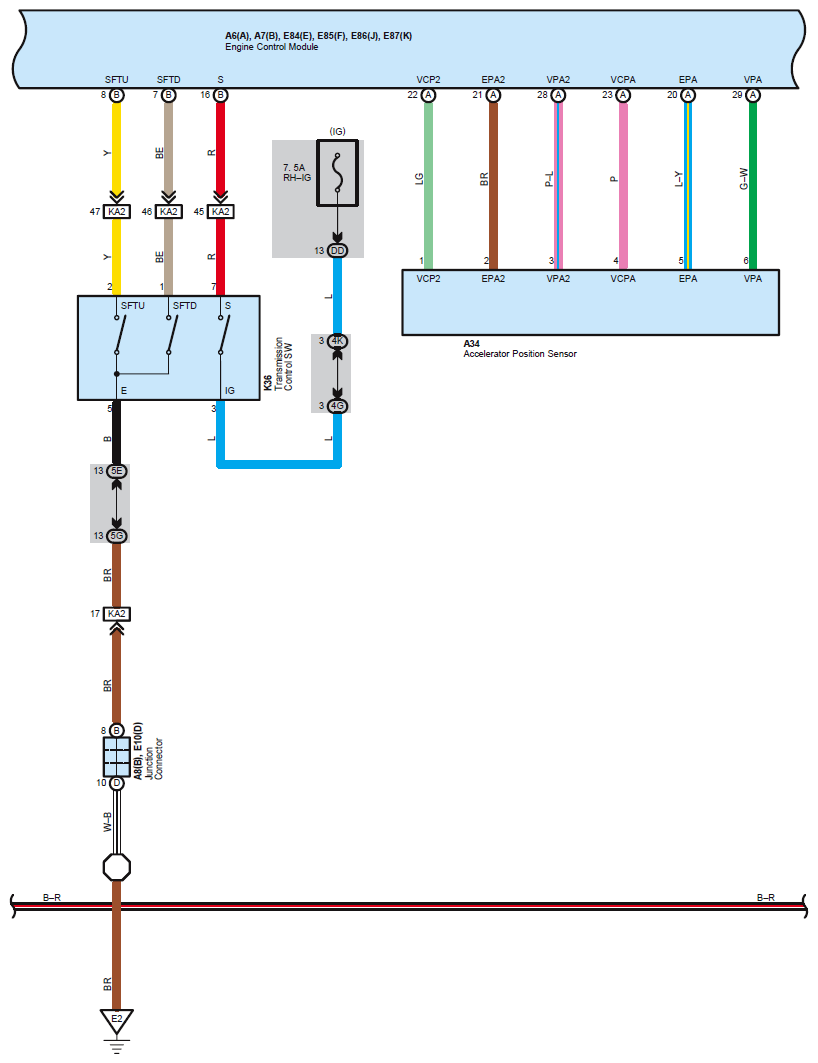

Fig 2: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (2 Of 24)

G07578996

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

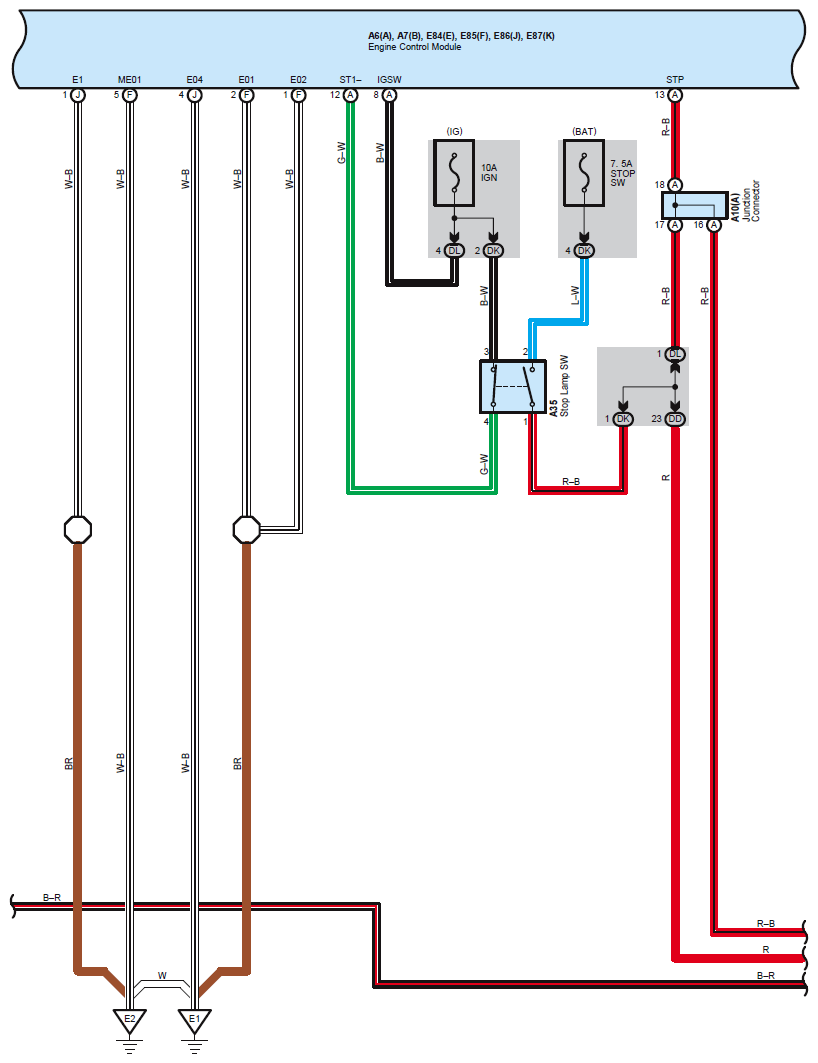

Fig 3: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (3 Of 24)

G07578997

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

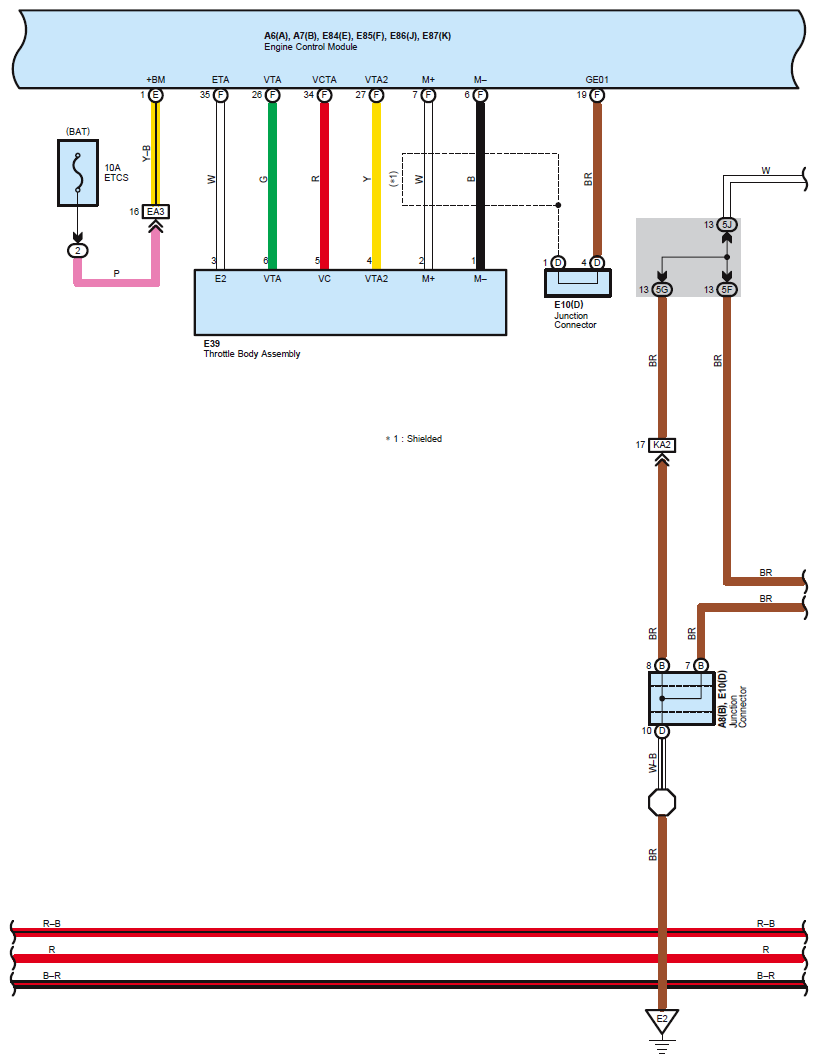

Fig 4: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (4 Of 24)

G07578998

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

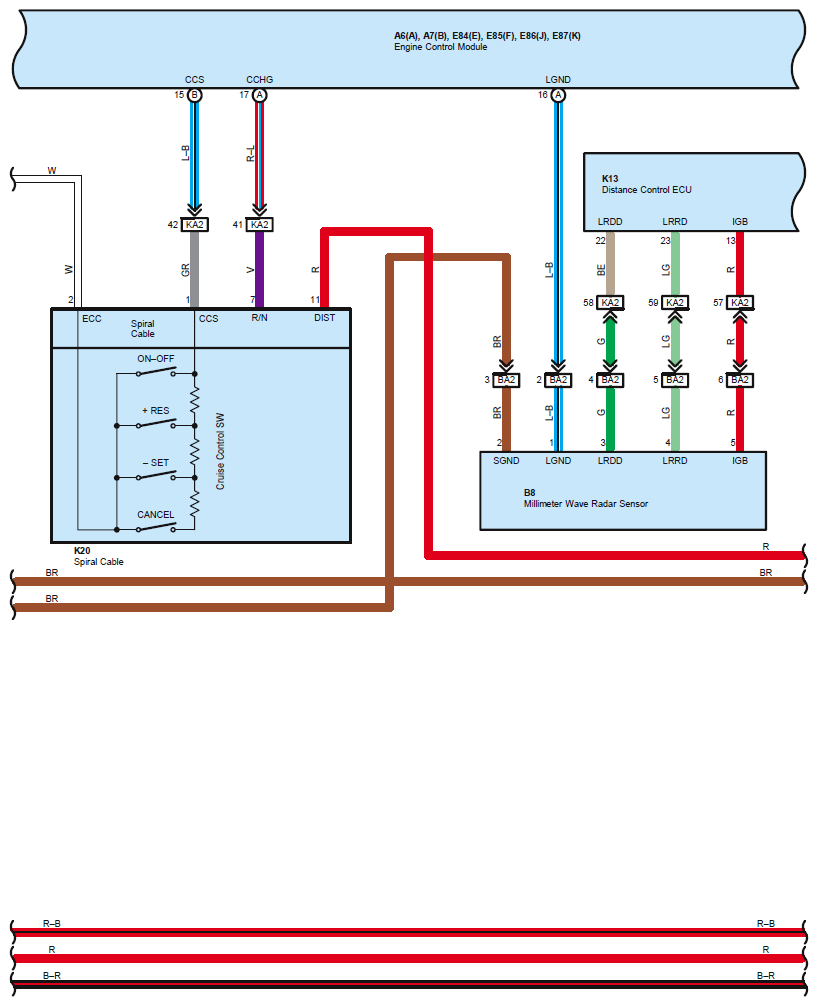

Fig 5: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (5 Of 24)

G07578999

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

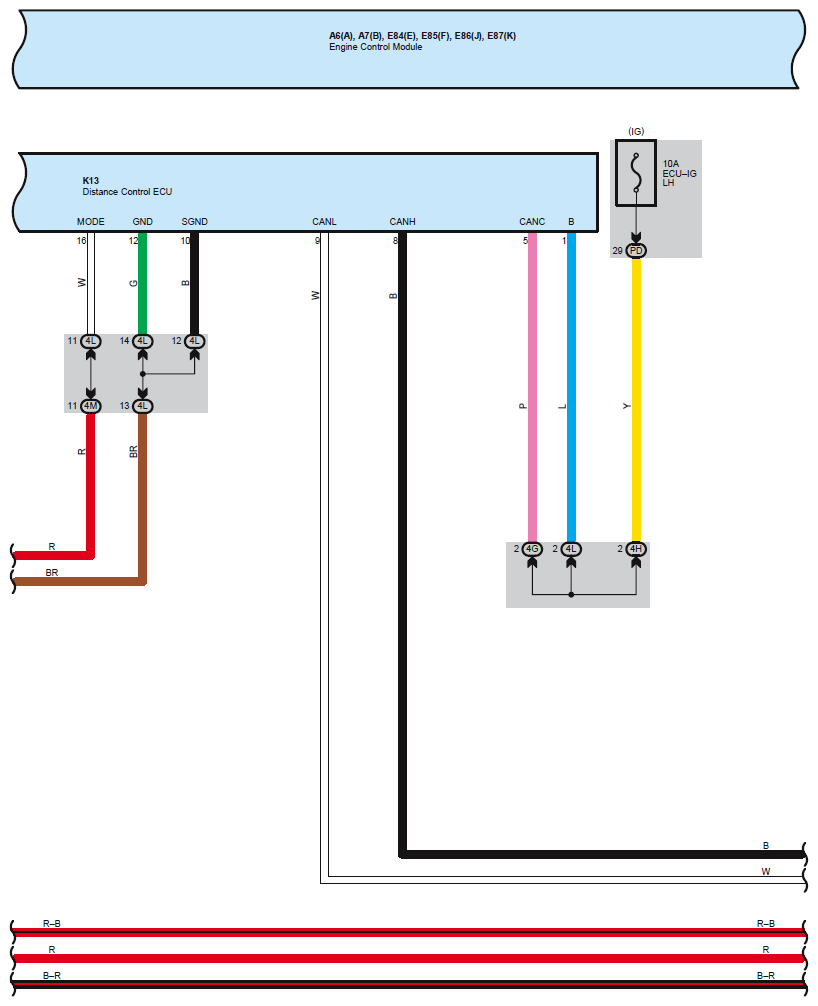

Fig 6: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (6 Of 24)

G07579000

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

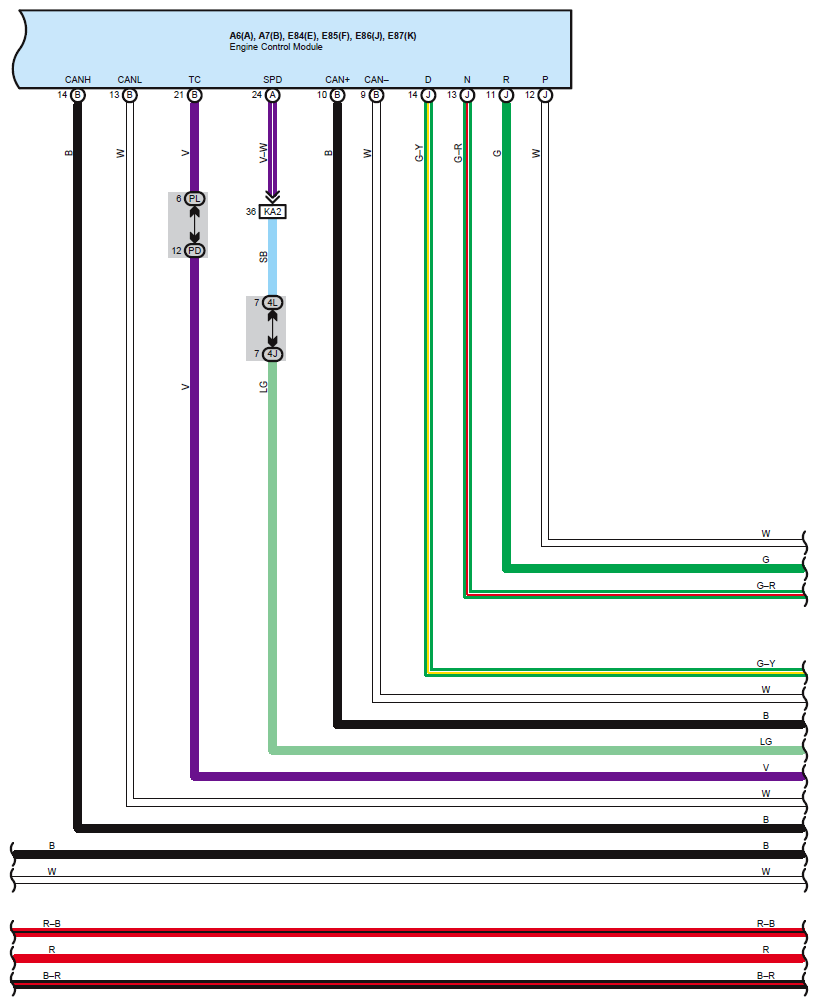

Fig 7: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (7 Of 24)

G07579001

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

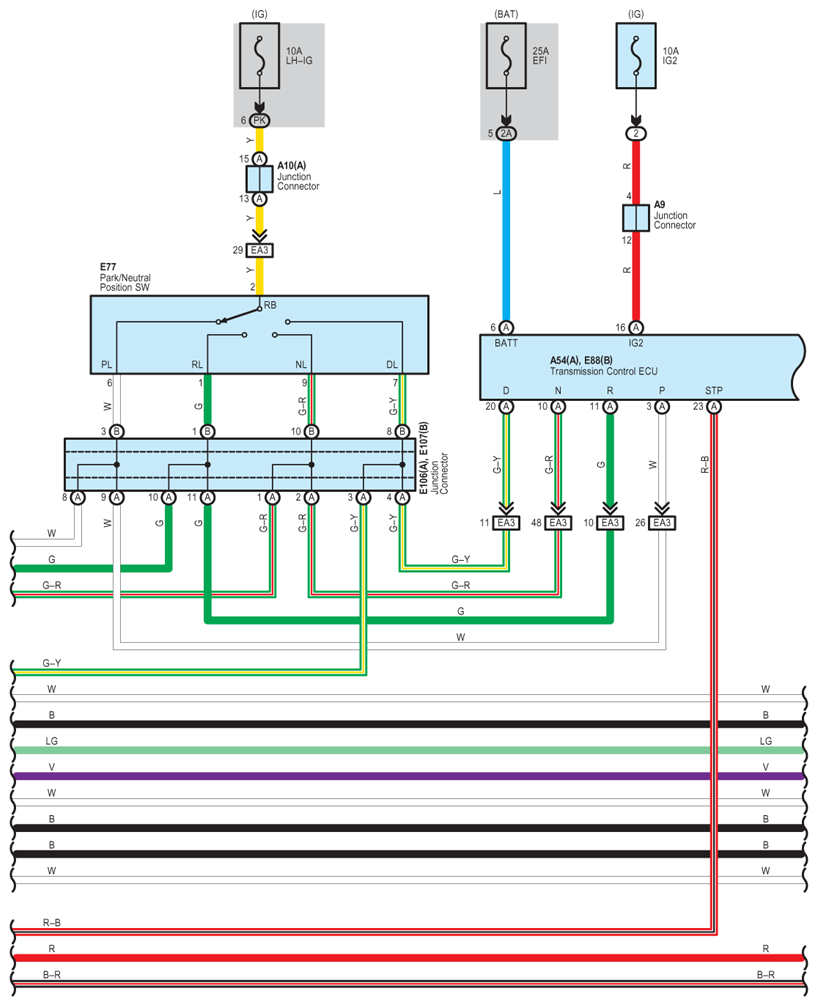

Fig 8: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (8 Of 24)

G07626927

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

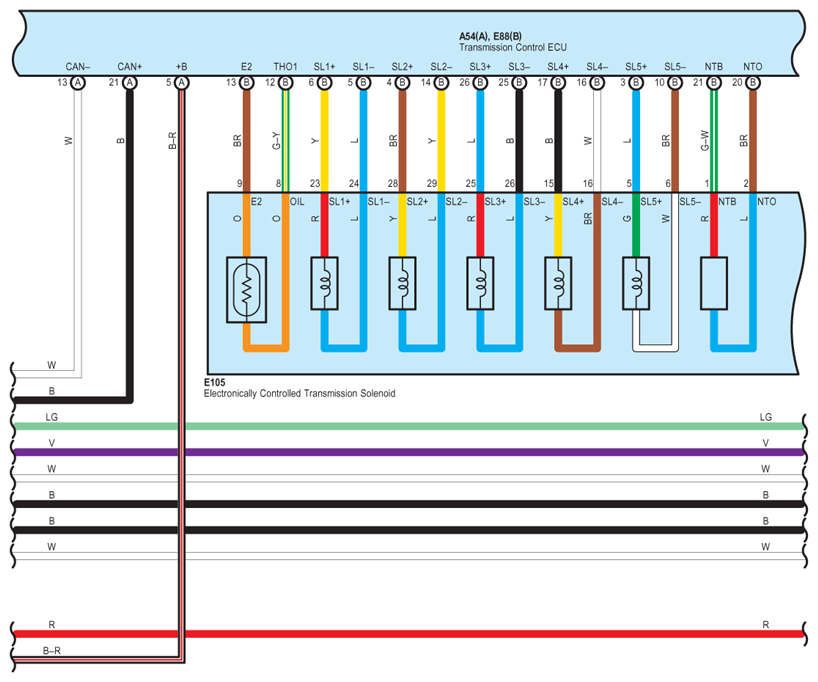

Fig 9: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (9 Of 24)

G07626928

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

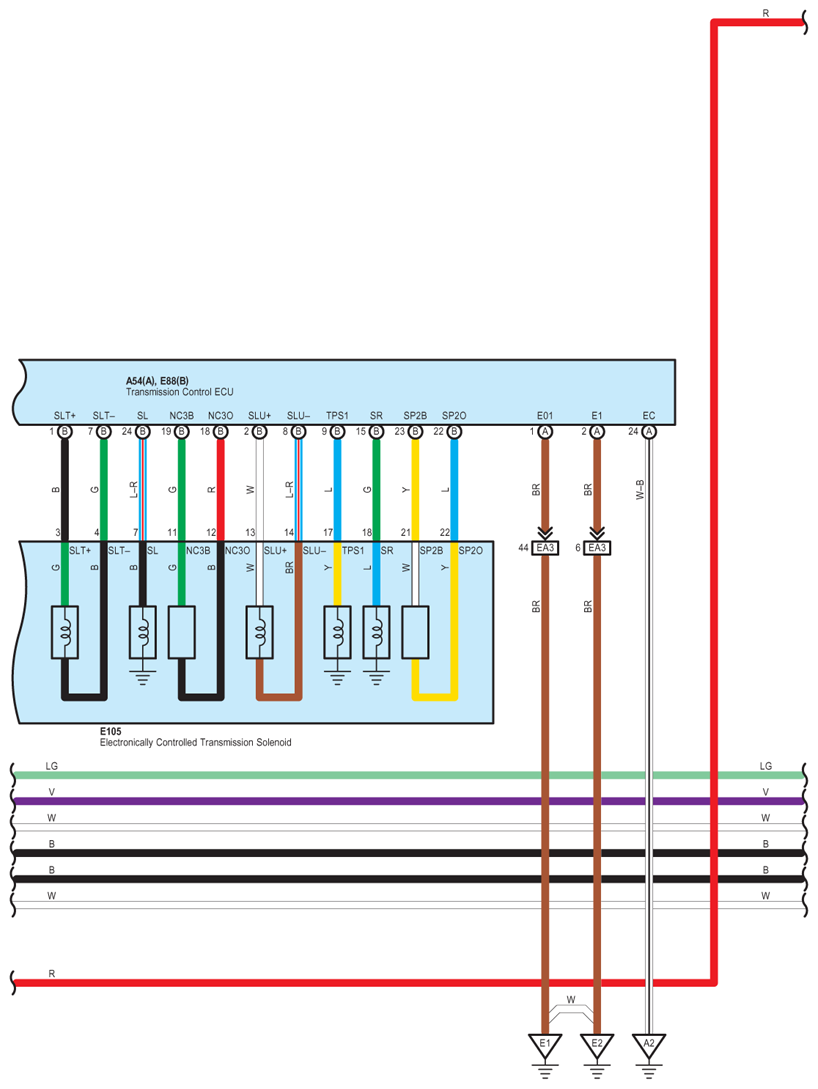

Fig 10: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (10 Of 24)

G07626929

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

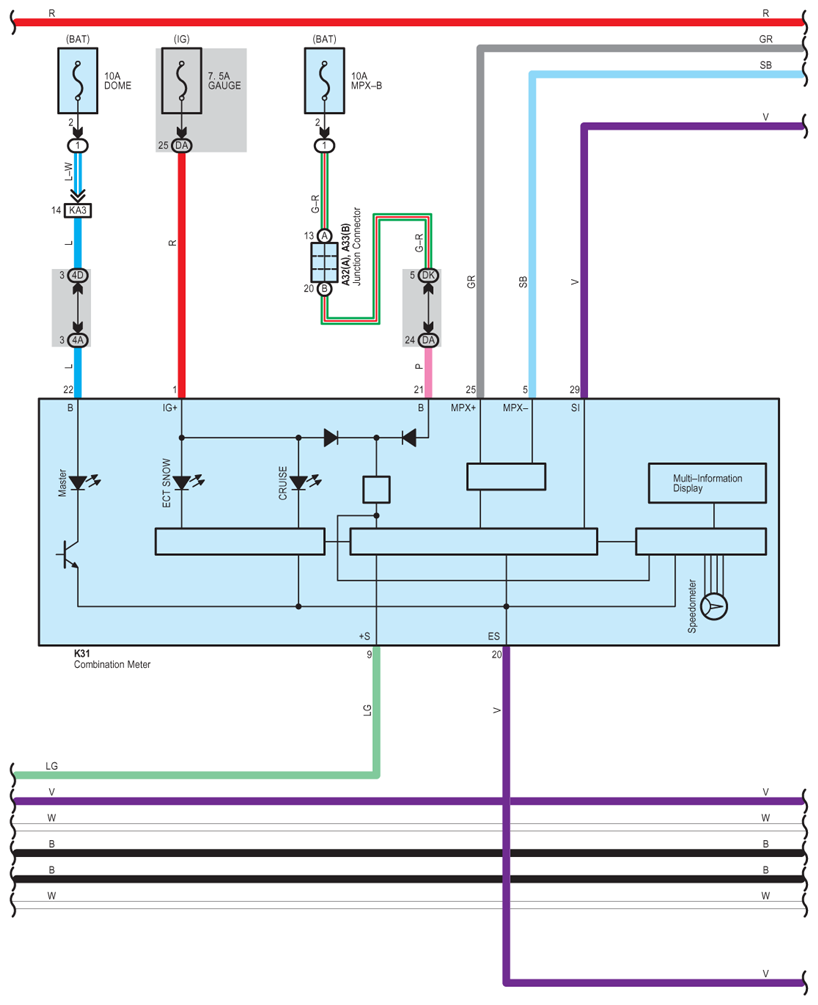

Fig 11: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (11 Of 24)

G07626930

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

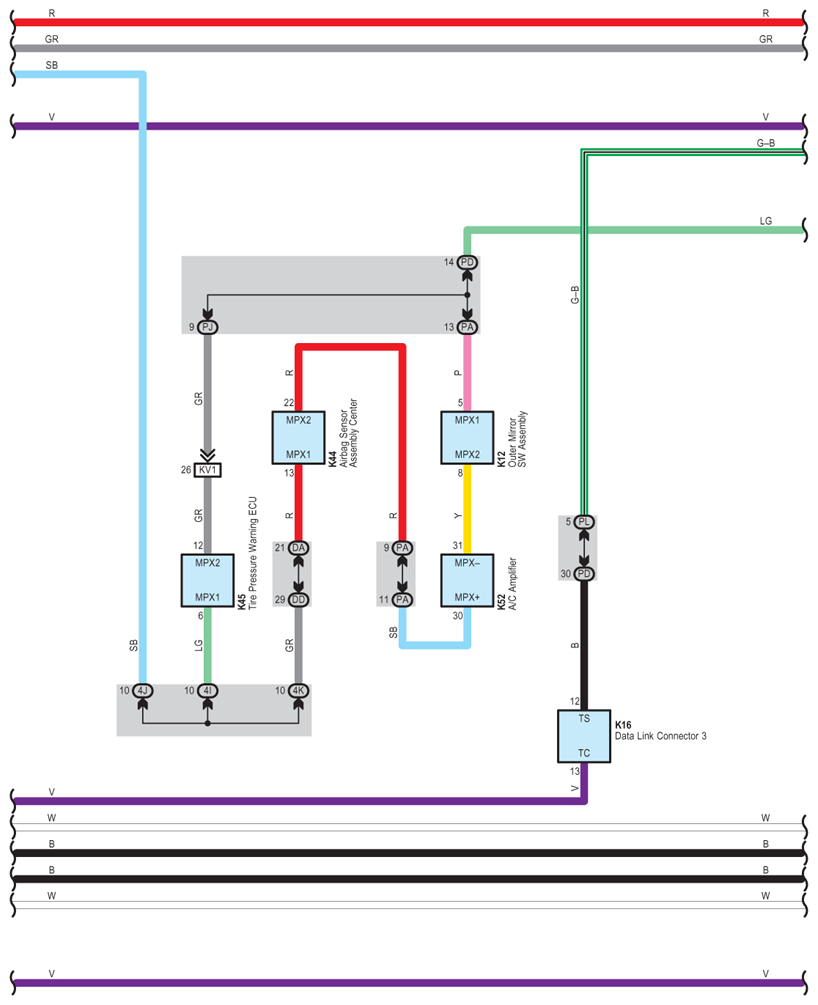

Fig 12: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (12 Of 24)

G07626931

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

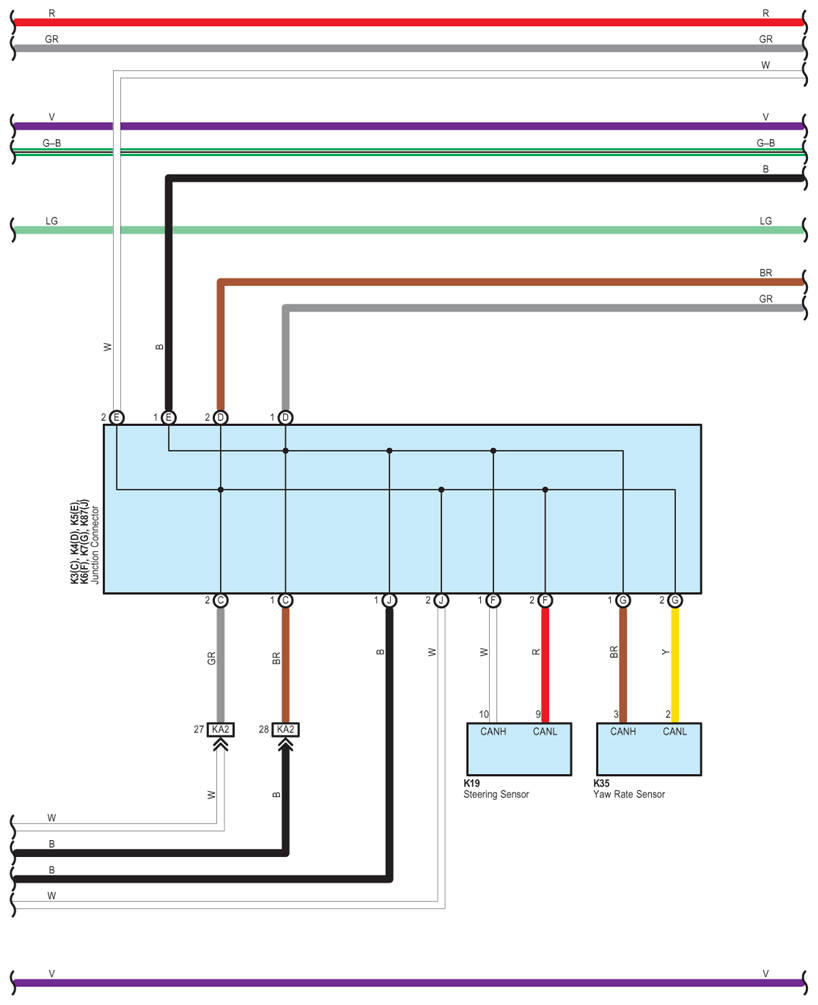

Fig 13: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (13 Of 24)

G07626932

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

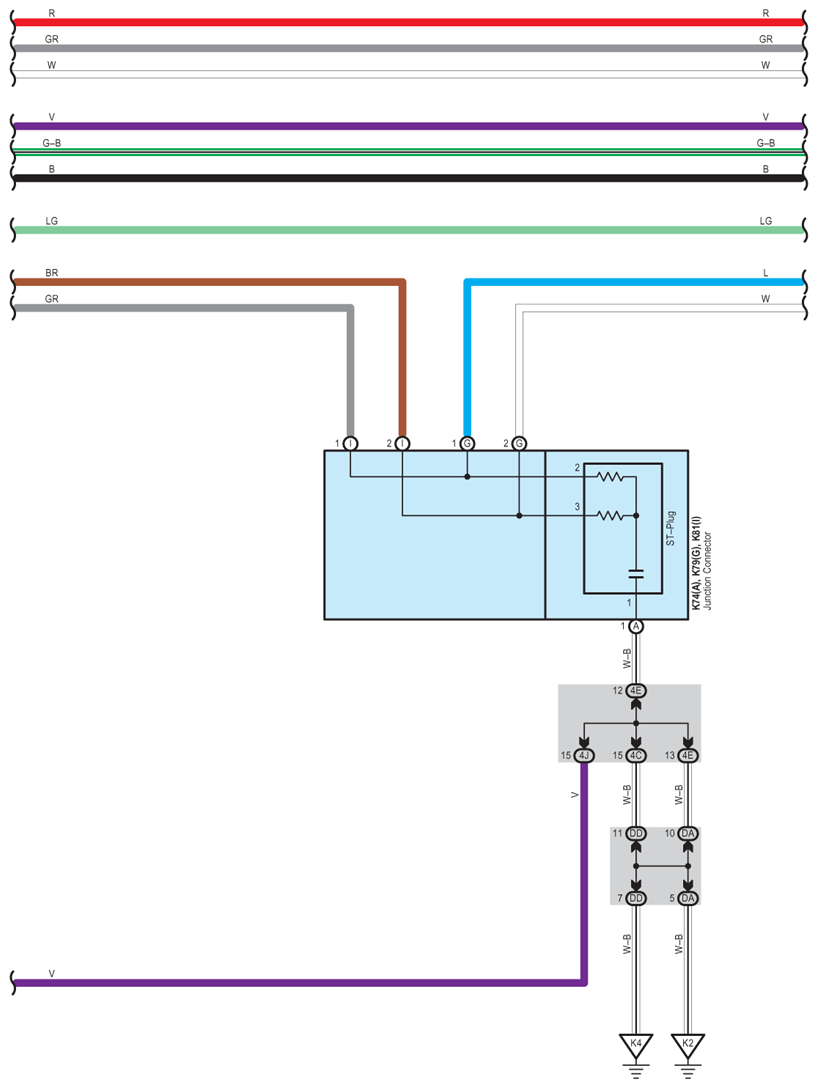

Fig 14: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (14 Of 24)

G07626933

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

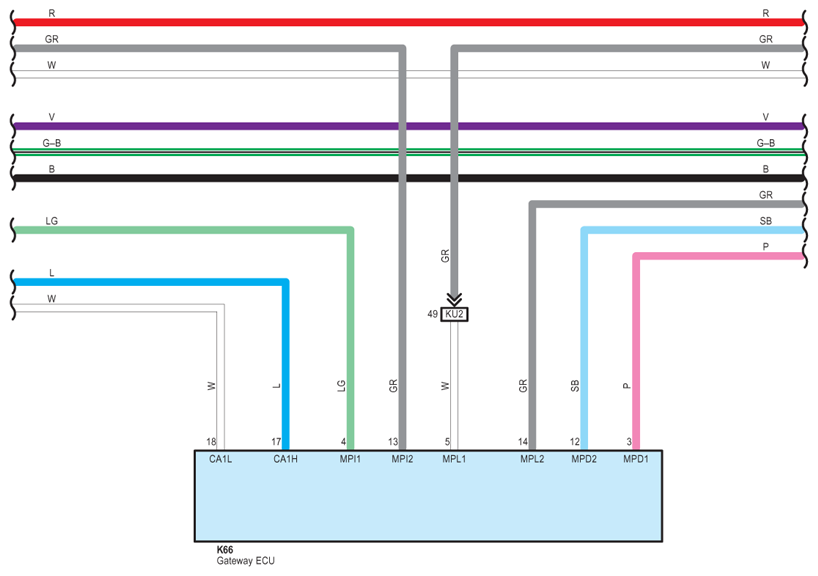

Fig 15: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (15 Of 24)

G07626934

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

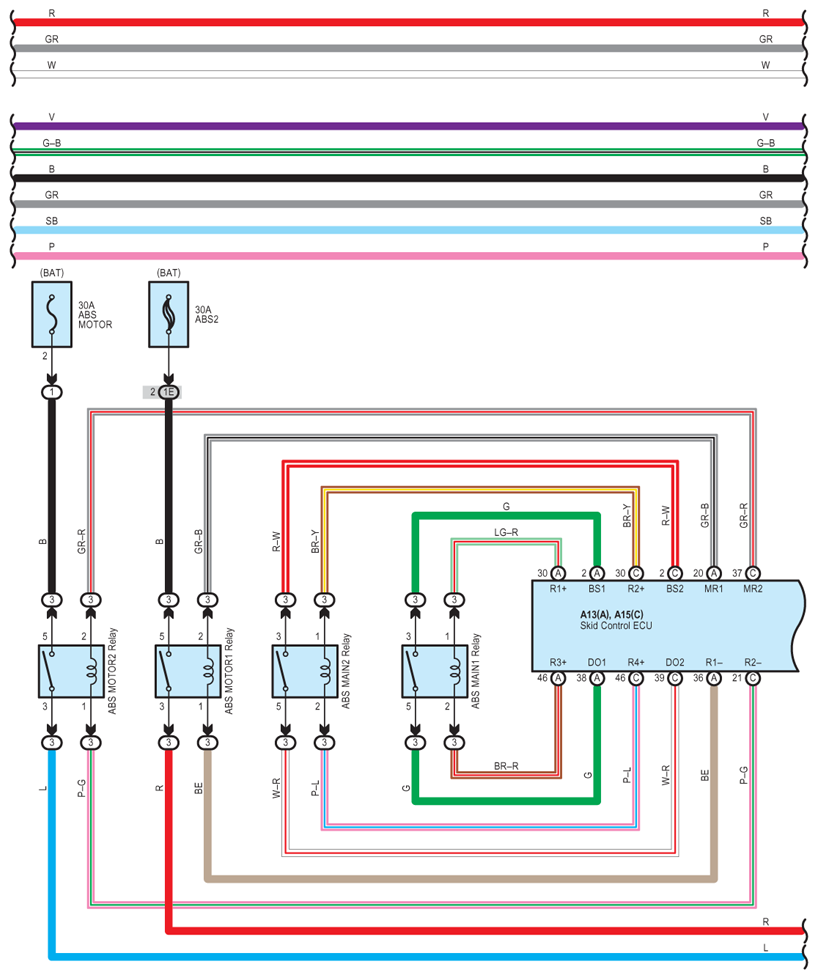

Fig 16: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (16 Of 24)

G07626935

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

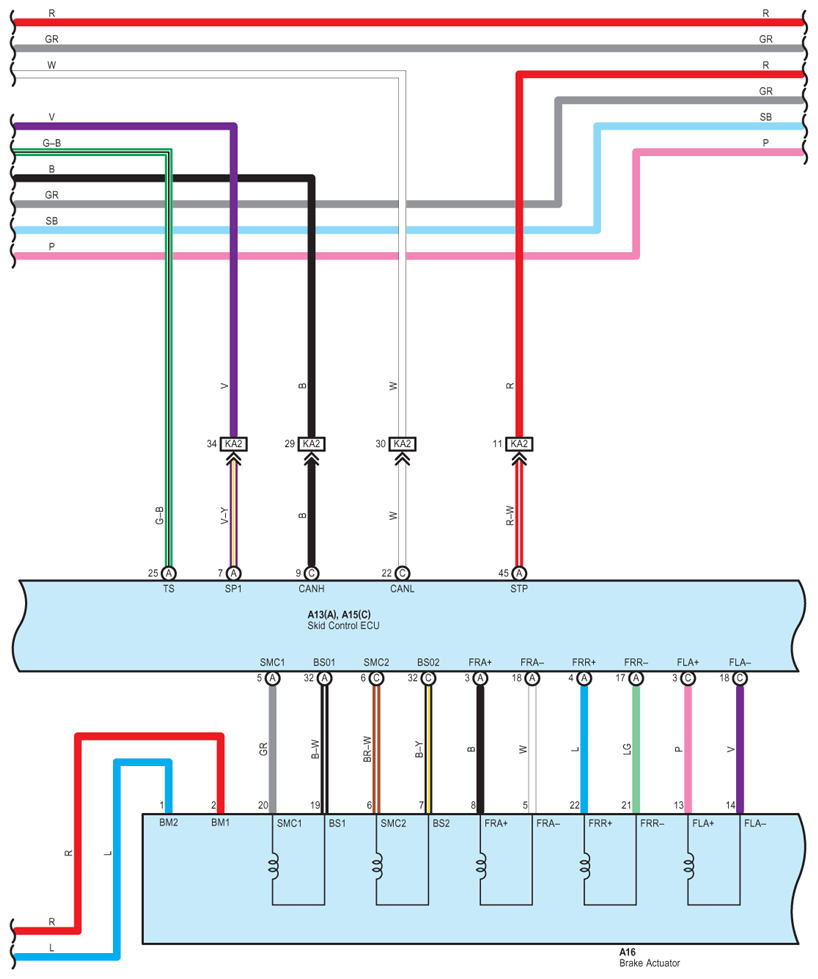

Fig 17: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (17 Of 24)

G07626936

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

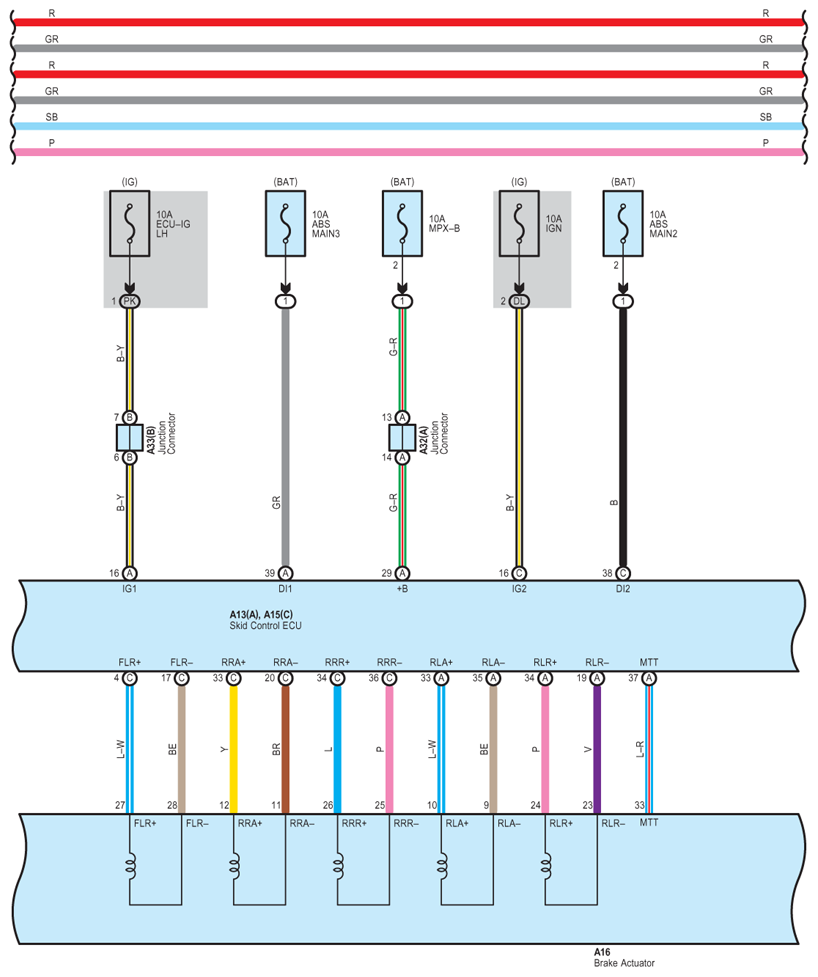

Fig 18: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (18 Of 24)

G07626937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

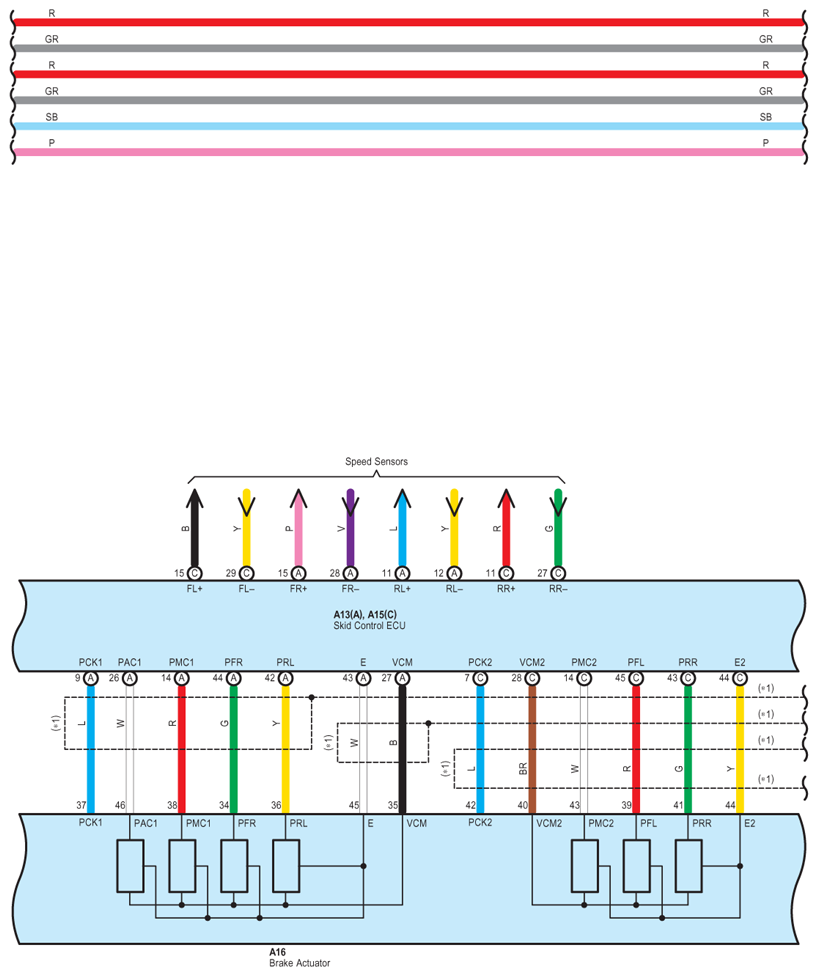

Fig 19: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (19 Of 24)

G07626938

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

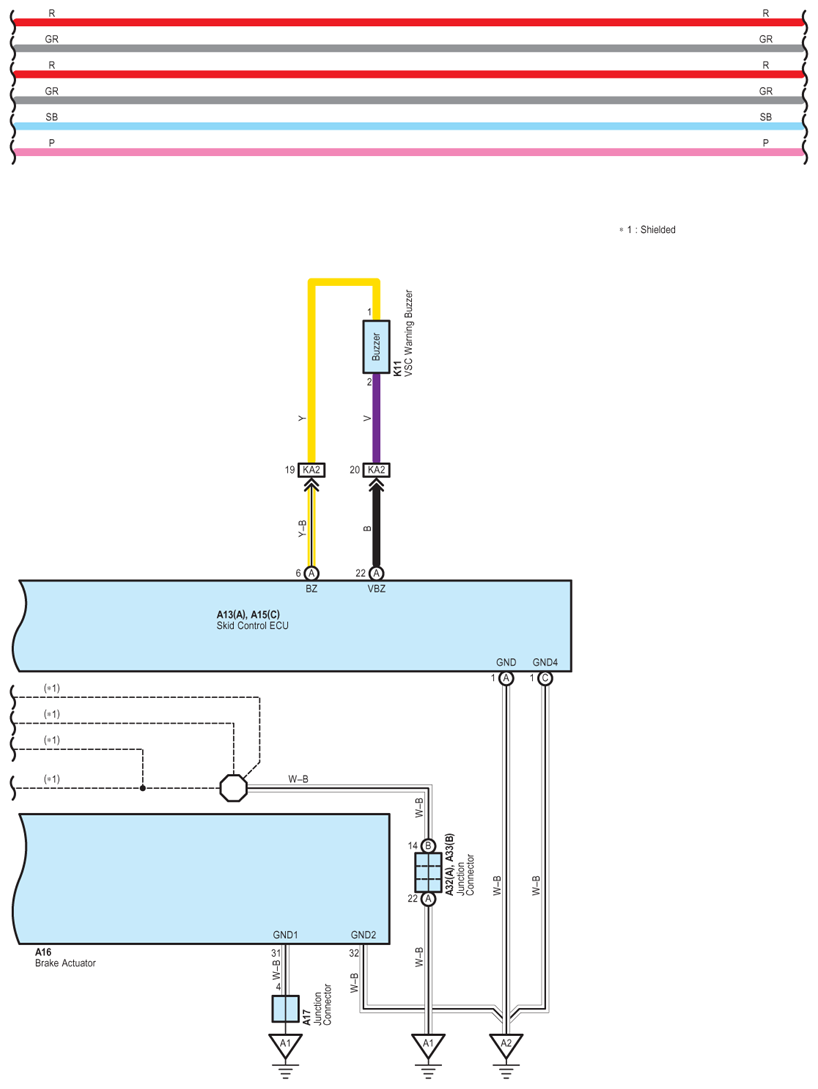

Fig 20: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (20 Of 24)

G07626939

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

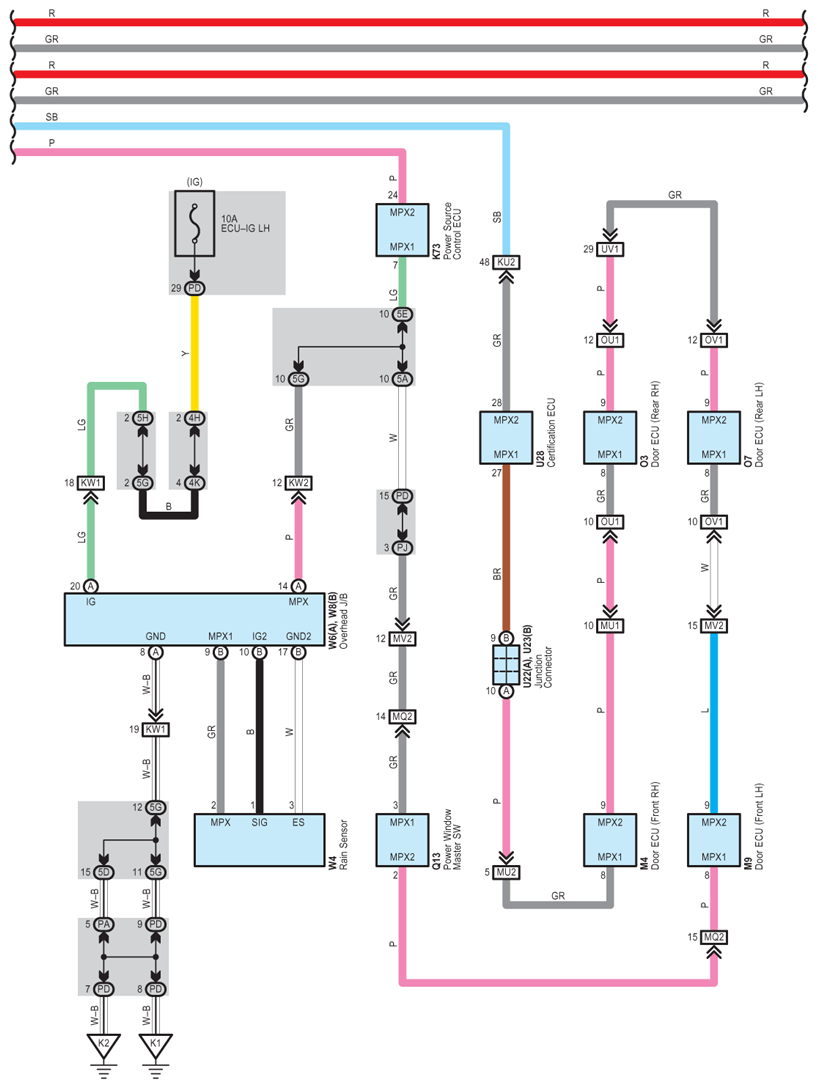

Fig 21: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (21 Of 24)

G07626940

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

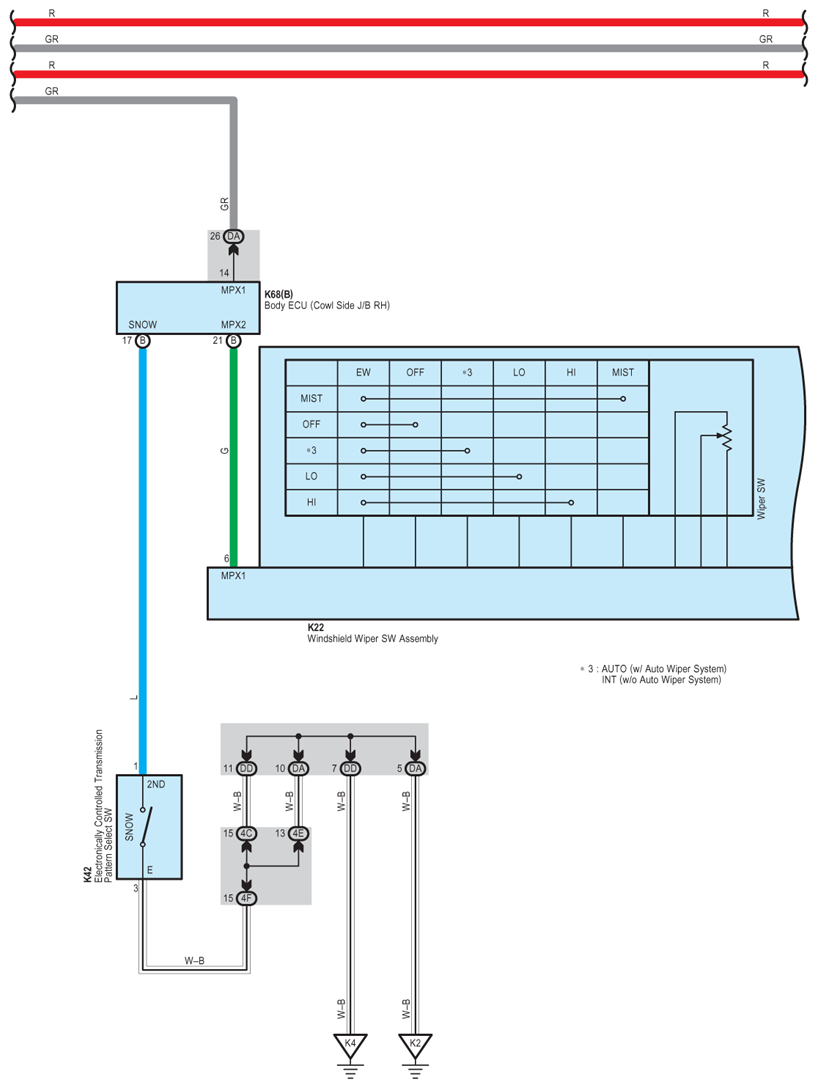

Fig 22: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (22 Of 24)

G07626941

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

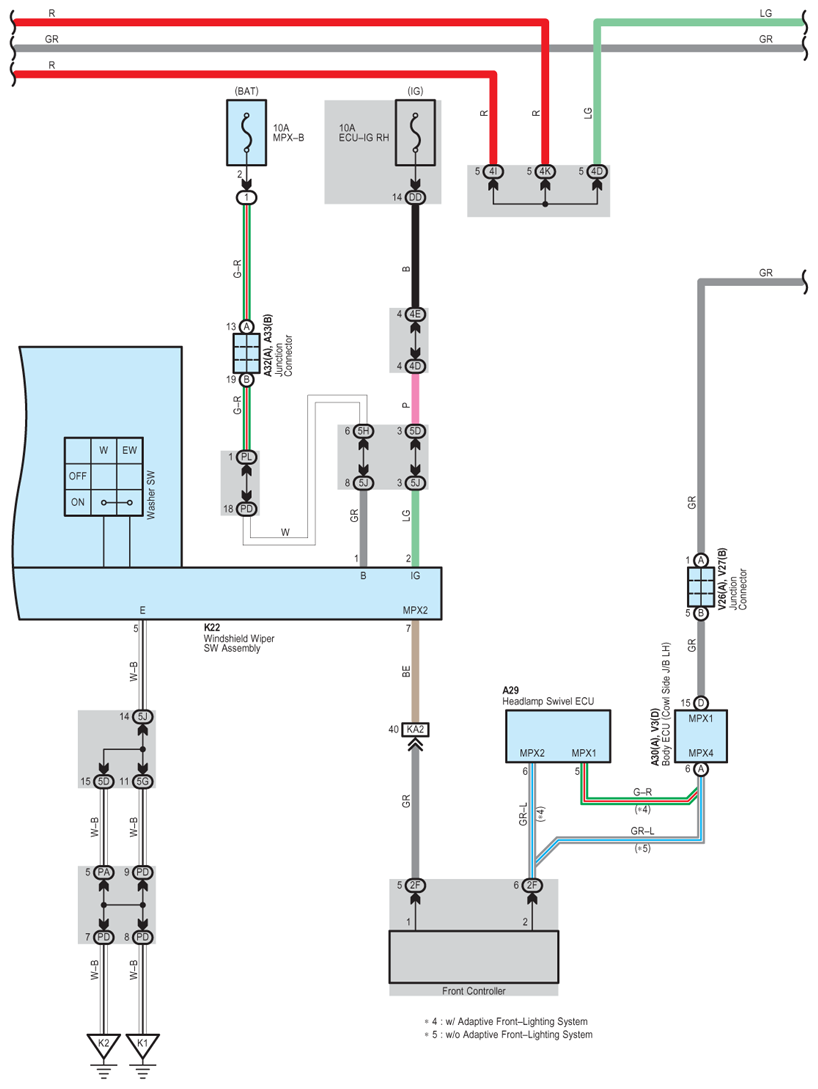

Fig 23: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (23 Of 24)

G07626942

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

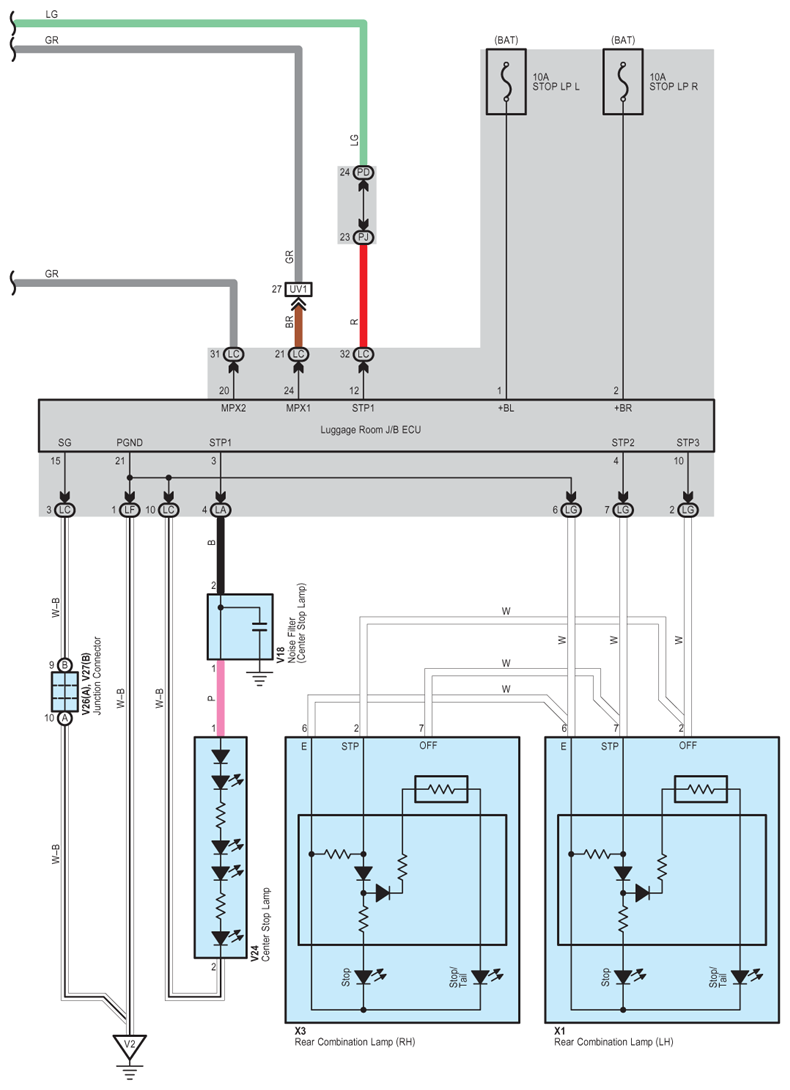

Fig 24: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (24 Of 24)

G07626943

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
