Fuse Block

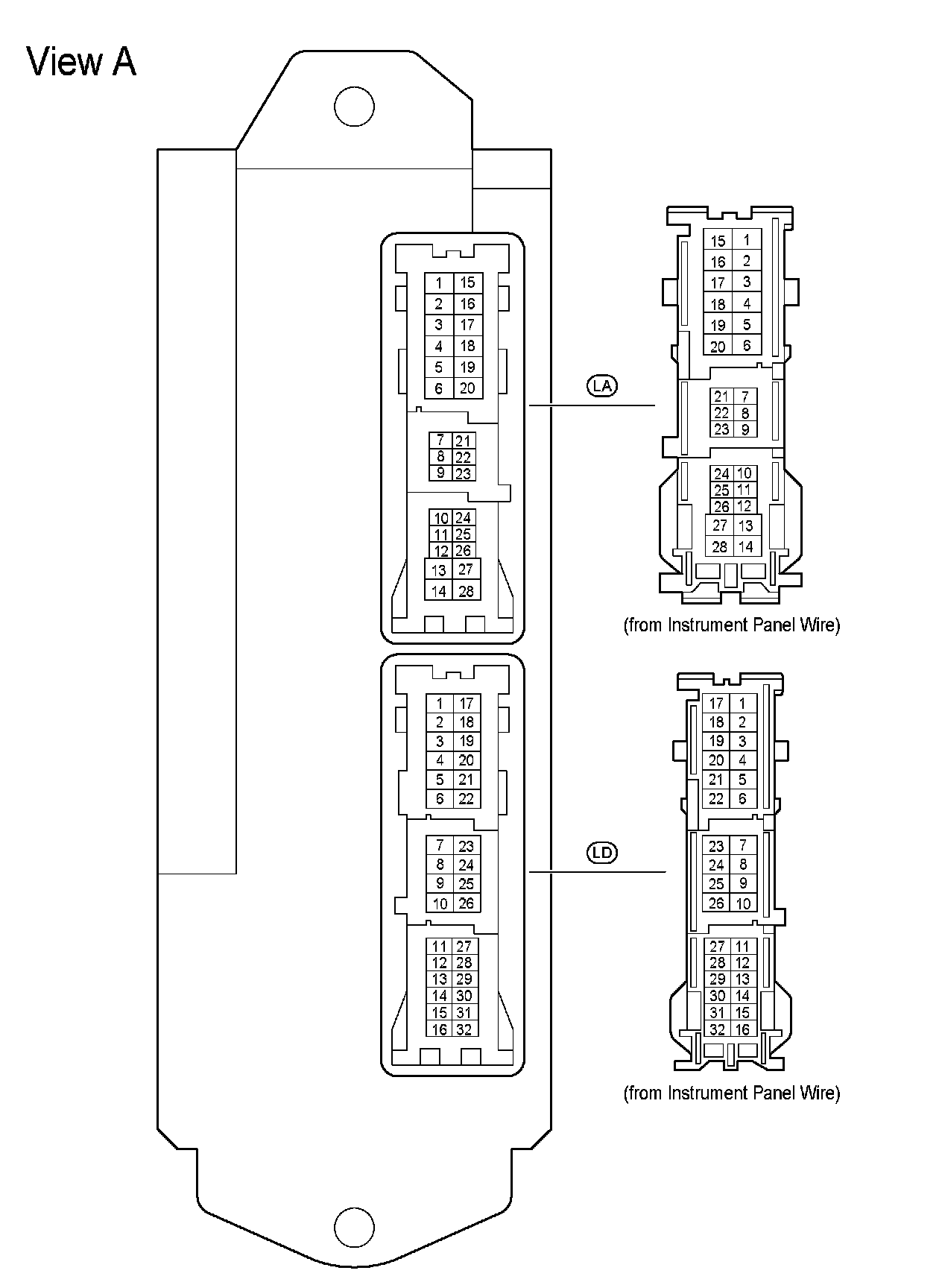

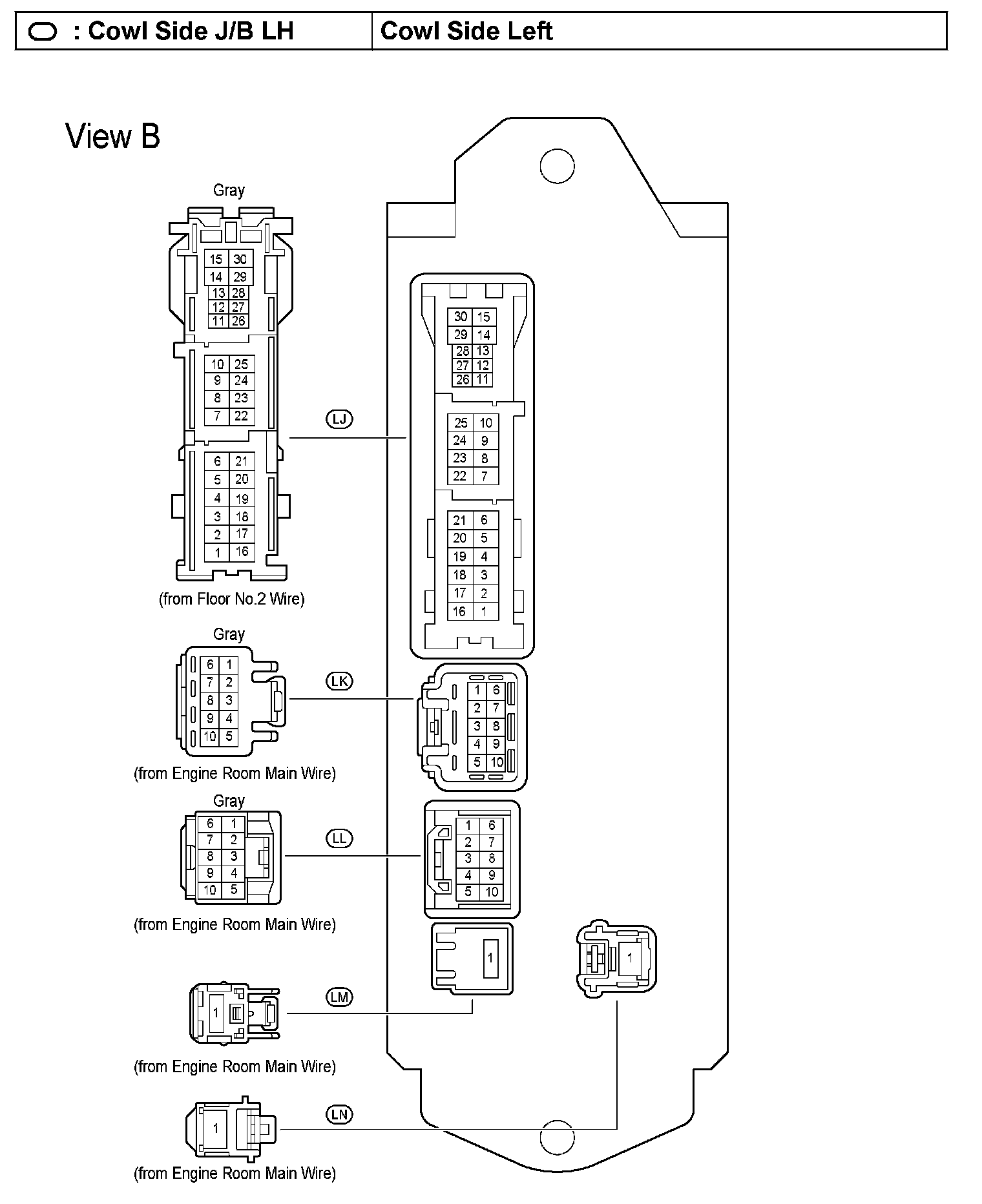

Cowl Side J/B LH - Cowl Side Left:






Cowl Side J/B LH - Cowl Side Left:






Cowl Side J/B LH - Cowl Side Left:

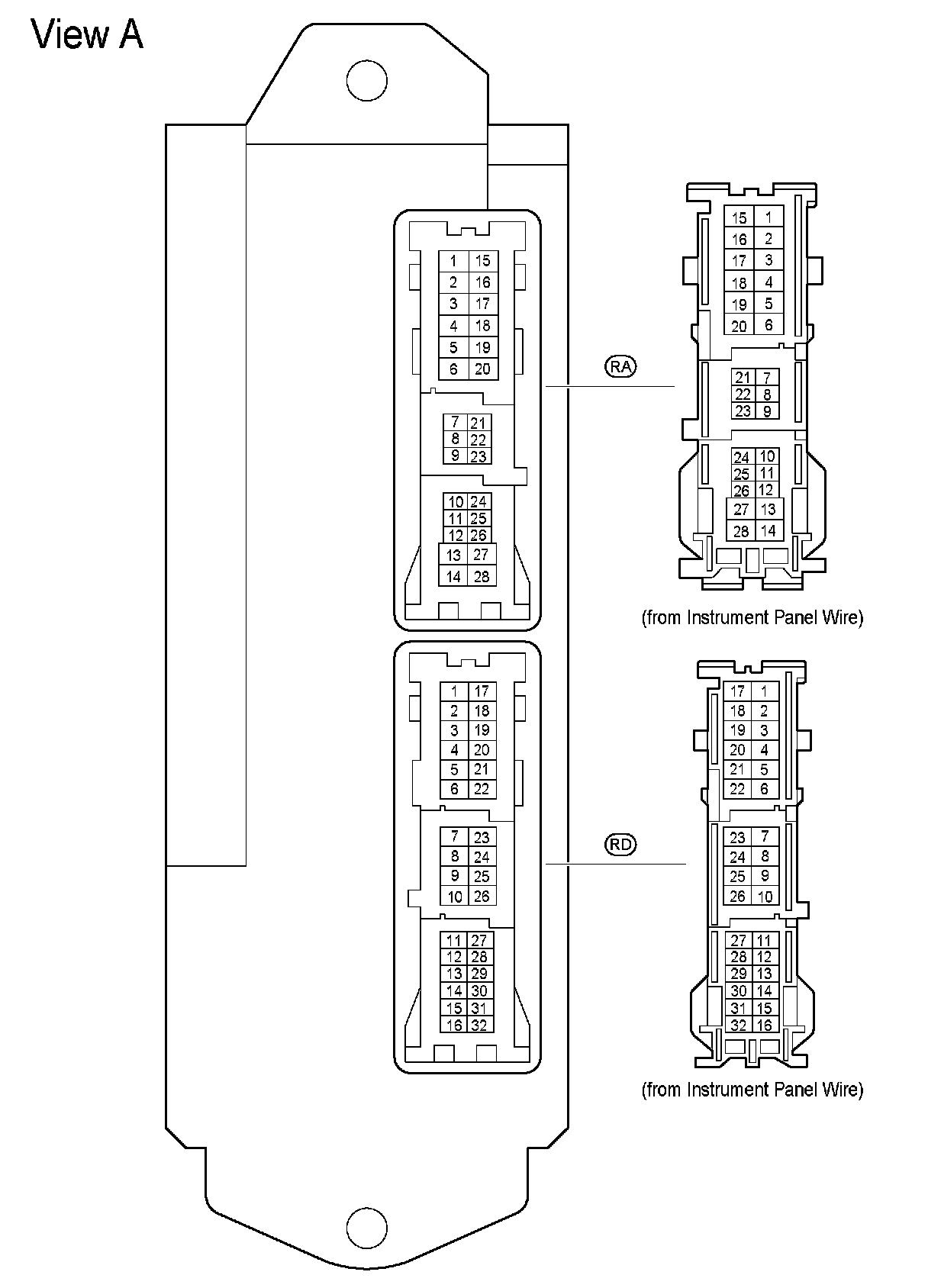

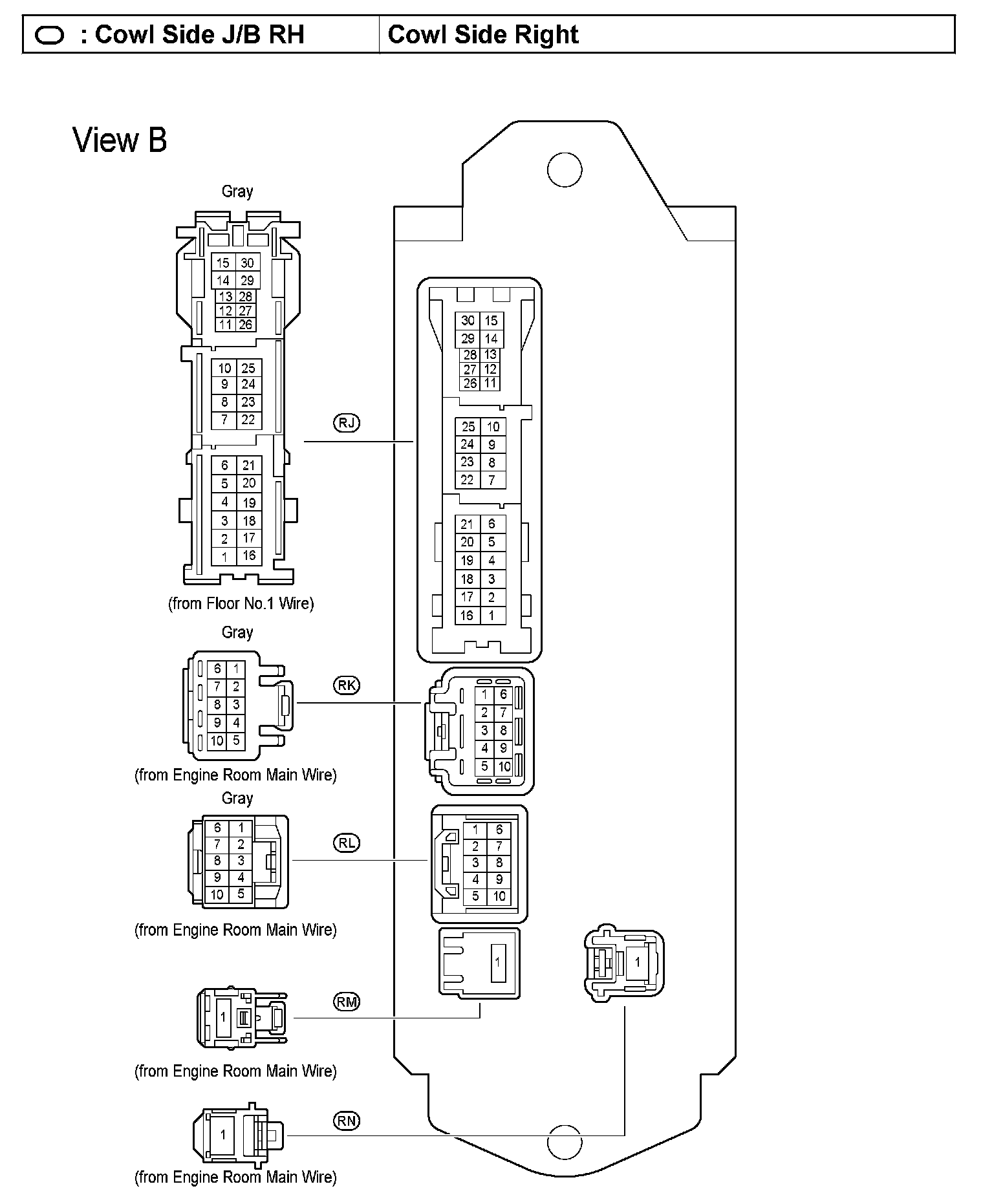

Cowl Side J/B RH - Cowl Side Right:






Cowl Side J/B RH - Cowl Side Right:






Cowl Side J/B RH - Cowl Side Right:

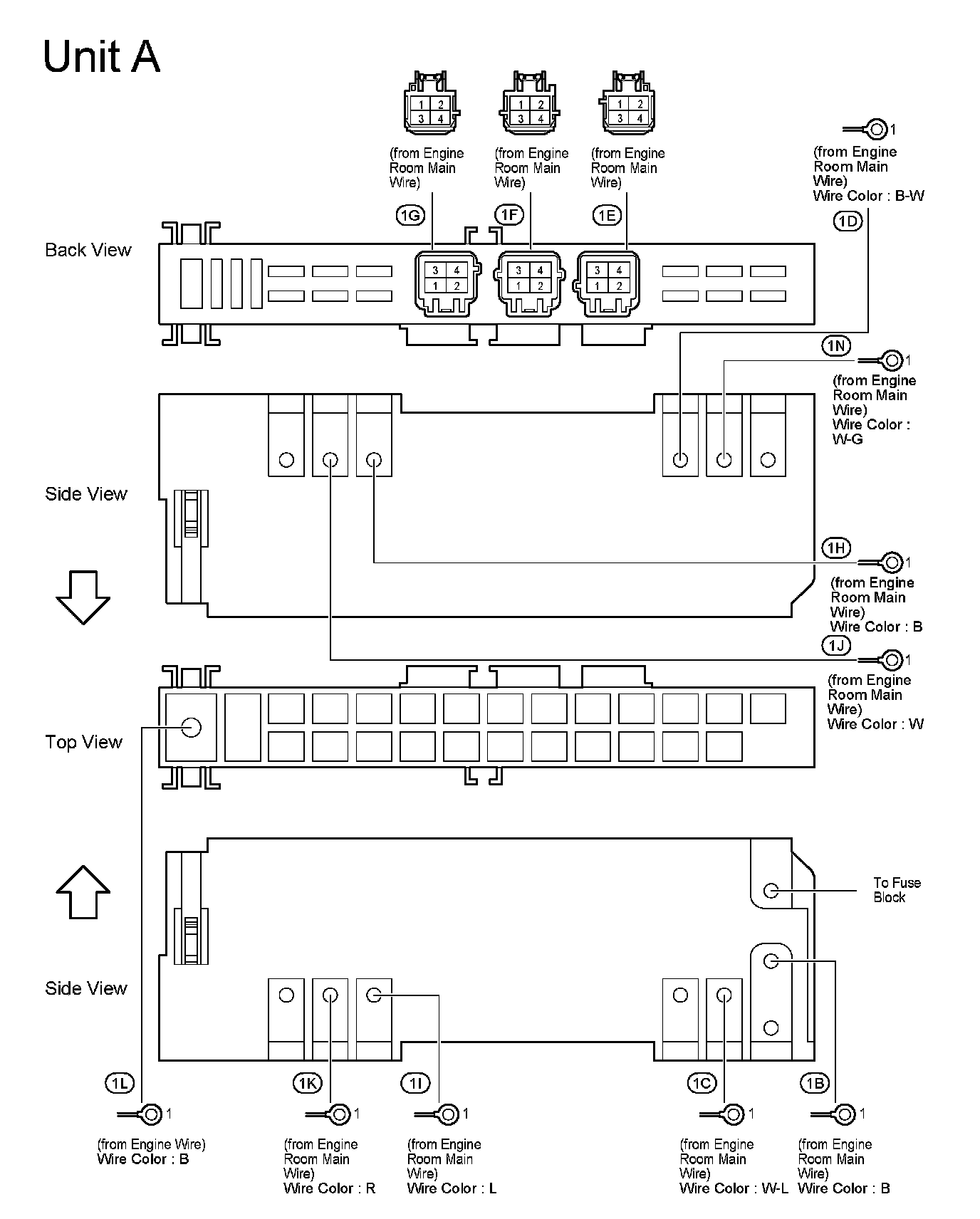

Engine Room R/B, J/B No.1 - Near the Battery:

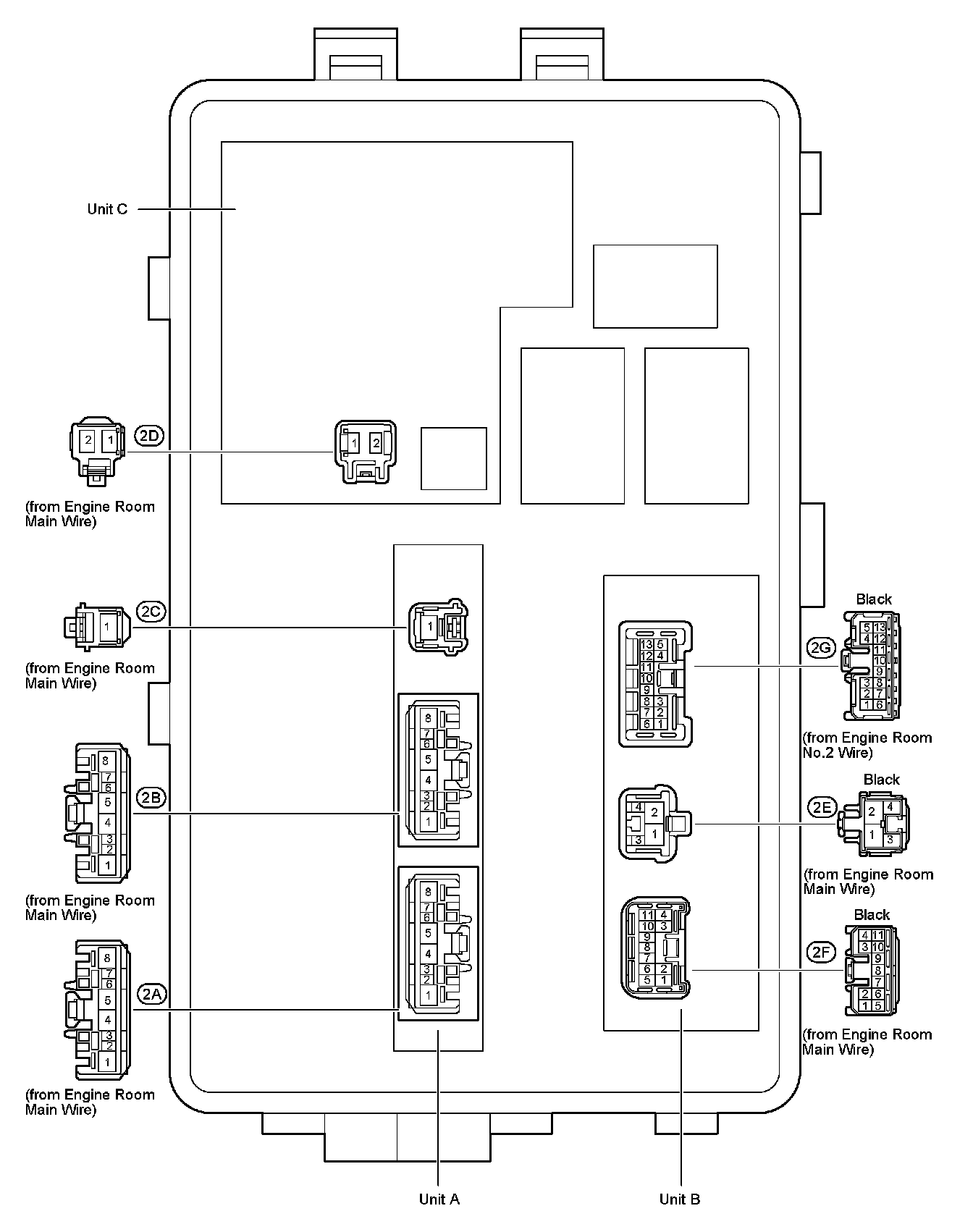

Engine Room R/B, J/B No.2 - Engine Compartment Left:






Junction Connector (CAN LH) - Left Kick Panel:






Junction Connector (CAN RH) - Right Kick Panel:
