A760H AUTOMATIC TRANSMISSION: SHIFT PADDLE SWITCH: INSTALLATION

1. INSTALL SHIFT PADDLE SWITCH

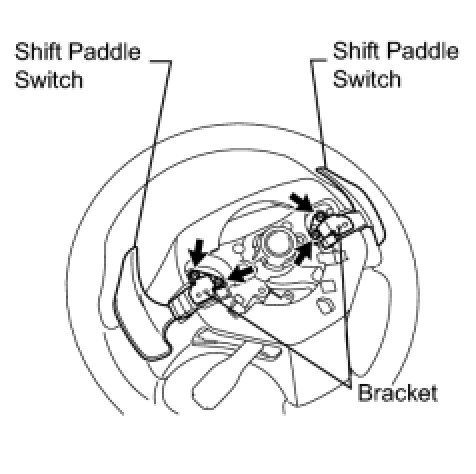

(a) Install the 2 shift paddle switches and 2 brackets with the 4 screws.

Torque : 1.7 Nm (17 kgf-cm, 15 in-lbf)

NOTICE:
Make sure that the brackets are securely installed.

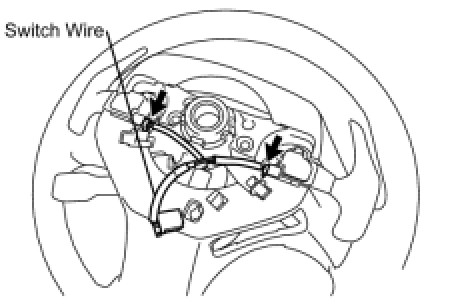

(b) Connect the 2 switch wire connectors to the shift paddle switches.

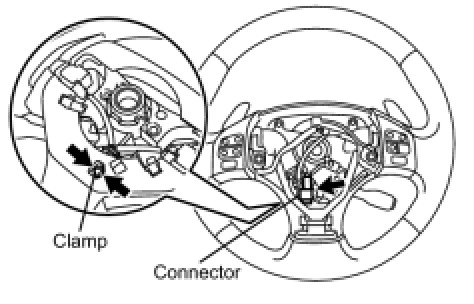

(d) Install the clamp to the steering wheel assembly.

2. ADJUST SPIRAL CABLE SUB-ASSEMBLY Installation

3. INSTALL STEERING WHEEL ASSEMBLY Installation

4. INSTALL STEERING PAD Installation

5. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation

6. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation

7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

8. INSPECT STEERING PAD Steering Pad

9. INSPECT SRS WARNING LIGHT
