Charging (Service Information): Generator: Components: Illustration

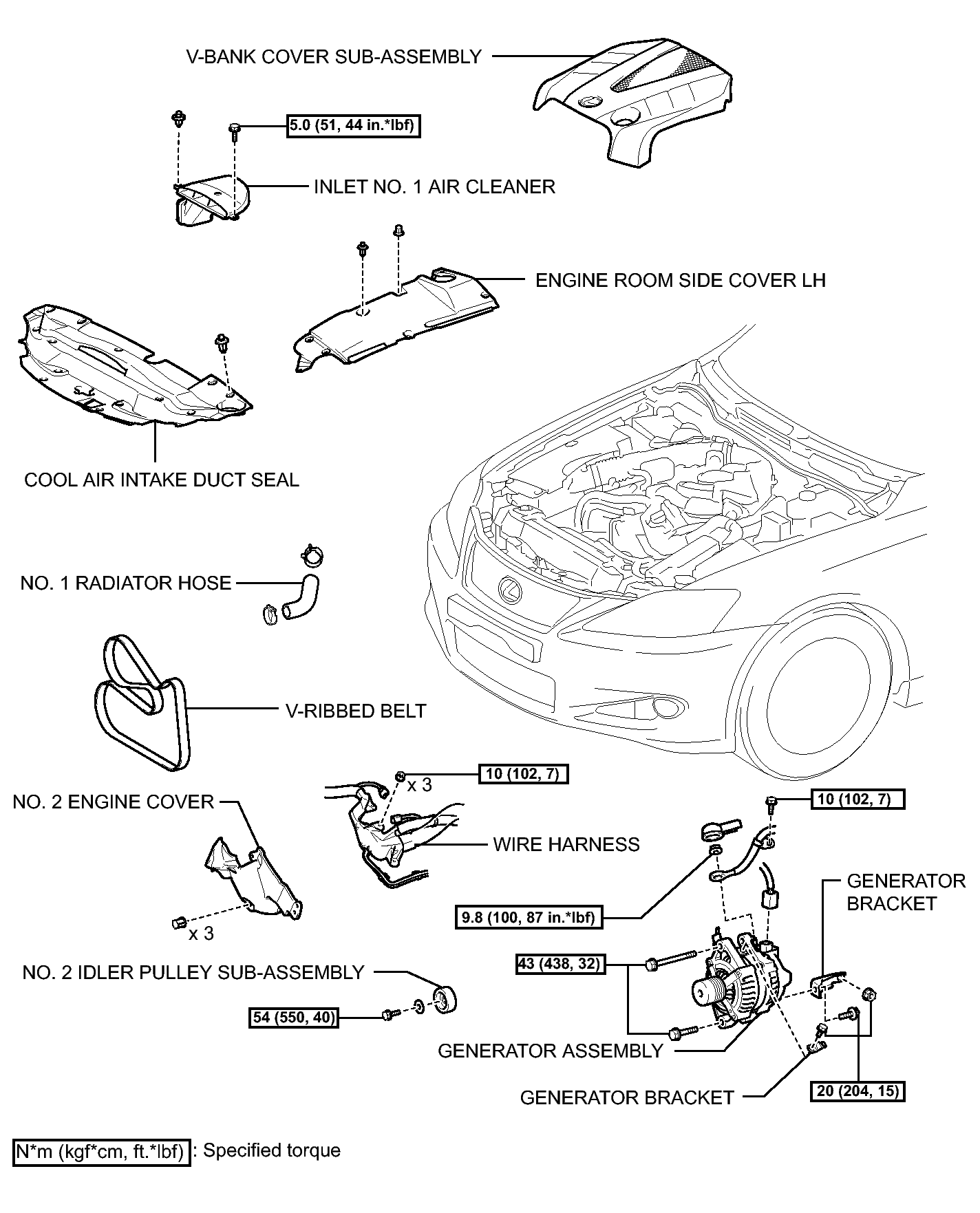

Fig 1: Identifying Generator Replacement Components With Torque Specifications (1 Of 2)
GTY276034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

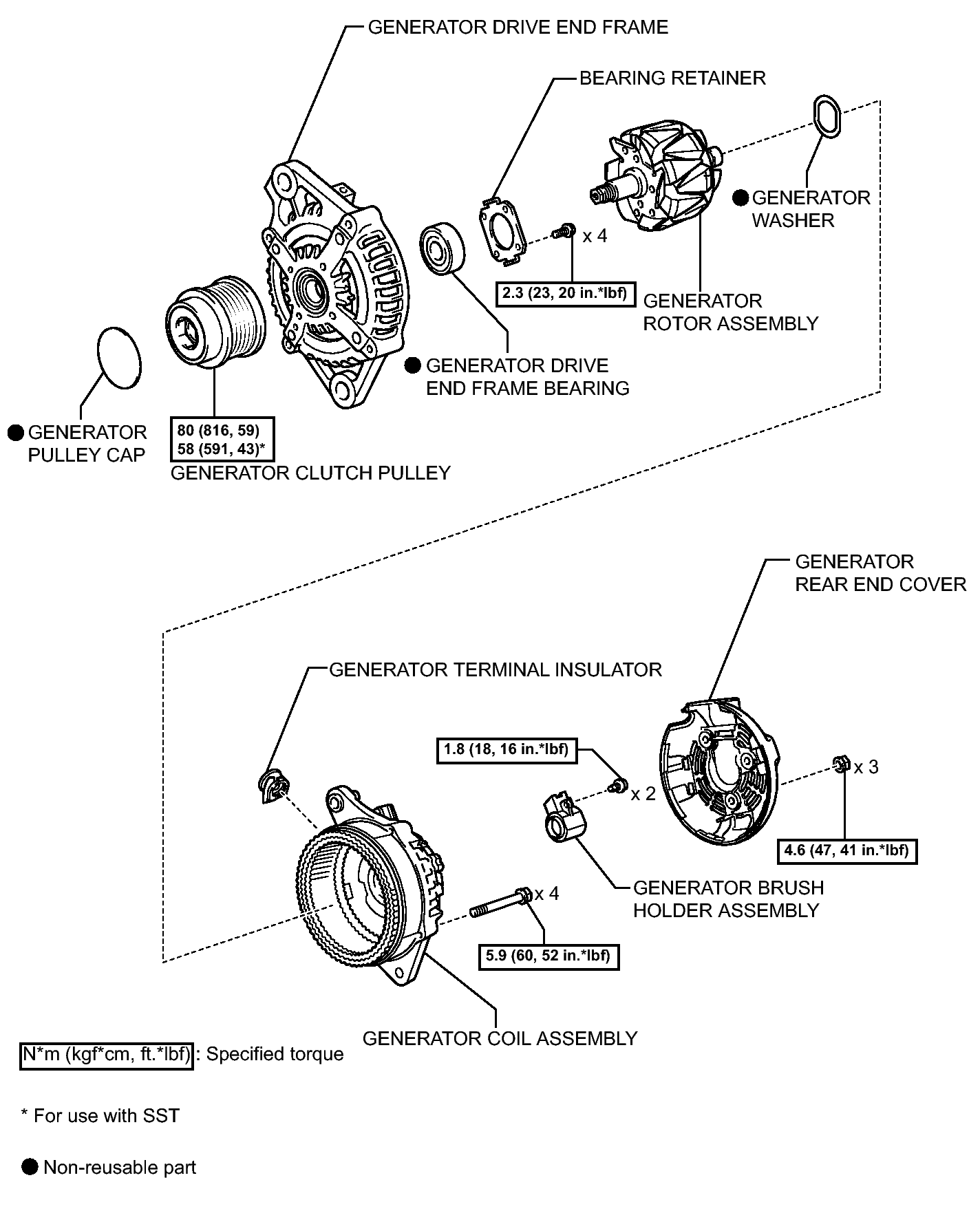

Fig 1: Identifying Generator Replacement Components With Torque Specifications (2 Of 2)
GTY268976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
