Driver Side Door Entry Lock Function does not Operate: Procedure

1. When the master switch's door control switch is operated, check that the locked doors unlock. Refer to OPERATION CHECK .

   OK

   Locked doors unlock.

NG → See step   10

OK: Go to next step

1. Using the Techstream, read the Data List. Refer to DATA LIST / ACTIVE TEST .
   DRIVER DOOR



   Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
   Lock Position SW	Driver side door lock position switch signal / ON or OFF	ON: Driver side door lock is unlocked OFF: Driver side door lock is locked	-

   OK

   On the Techstream screen, item changes between ON and OFF according to above chart.

NG → See step   13

OK: Go to next step

1. Using the Techstream, read the Data List. Refer to DATA LIST / ACTIVE TEST .
   DRIVER DOOR



   Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
   Outside Handle Trigger SW	Driver side door outside handle lock switch / ON or OFF	ON: Driver side door outside handle lock switch is pushed OFF: Driver side door outside handle lock switch is not pushed	-

   OK

   On the Techstream screen, item changes between ON and OFF according to above chart.

NG → See step   5

OK: Go to next step

1. Replace the front door ECU LH with a new one or normally functioning one. Refer to COMPONENTS .
2. Check that the entry function operates normally. Refer to REMOVAL .

   OK

   Operates normally

NG → See step   12

OK → END (FRONT DOOR ECU LH IS DEFECTIVE)

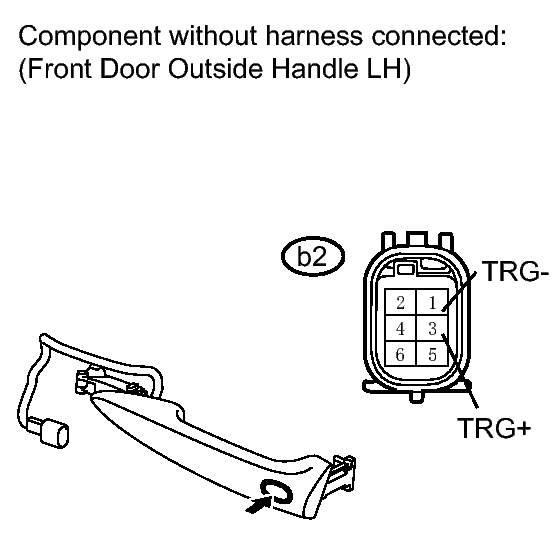

Fig 1: Inspecting Front Door Outside Handle Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   b2-3 (TRG+) - b2-1 (TRG-)	ON	Below 1 Ω
   b2-3 (TRG+) - b2-1 (TRG-)	OFF	10 kΩ or higher

NG → See step   11

OK: Go to next step

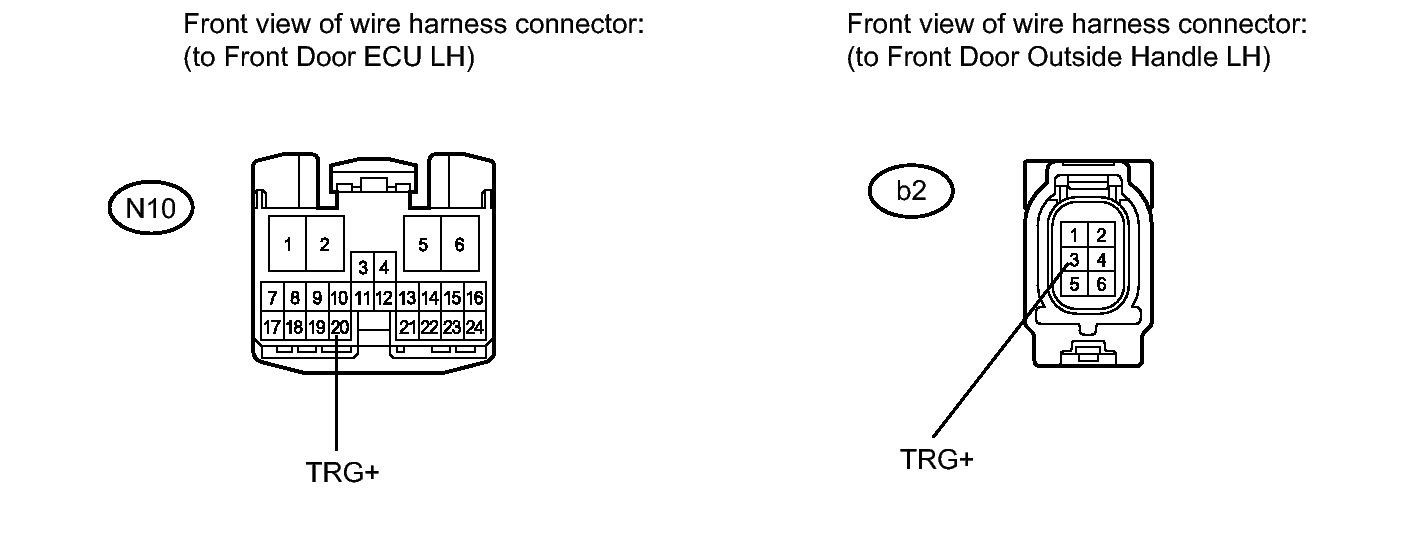

Fig 2: Identifying N10 ECU Connector Terminals And B2 Handle Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the N10 ECU connector.
2. Disconnect the b2 handle connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   N10-20 (TRG+) - b2-3 (TRG+)	Always	Below 1 Ω
   b2-3 (TRG+) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

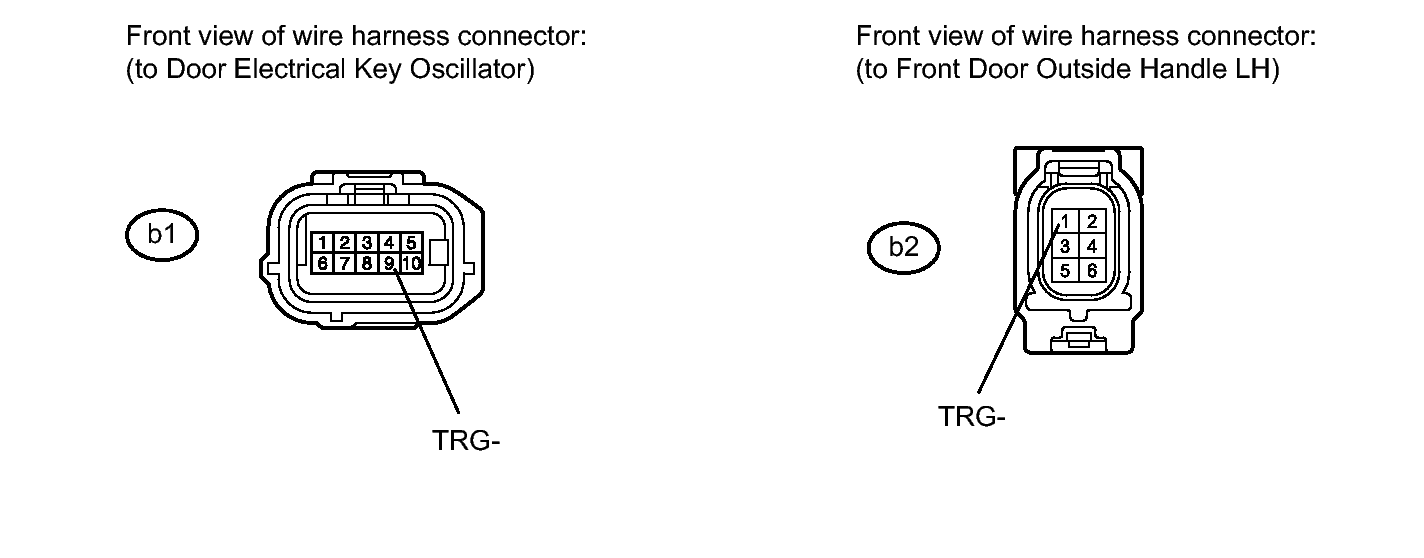

Fig 3: Identifying B1 Oscillator Connector Terminals And B2 Handle Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the b1 oscillator connector.
2. Disconnect the b2 handle connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   b1-9 (TRG-) - b2-1 (TRG-)	Always	Below 1 Ω
   b2-1 (TRG-) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the door electrical key oscillator with a new one or normally functioning one. Refer to COMPONENTS .
2. Check that the entry function operates normally. Refer to OPERATION CHECK .

   OK

   Operates normally

NG → See step   9

OK → END (DOOR ELECTRICAL OSCILLATOR IS DEFECTIVE)

1. Replace the front door ECU LH with a new one or normally functioning one. Refer to COMPONENTS .
2. Check that the entry function operates normally. Refer to OPERATION CHECK .

   OK

   Operates normally

NG → See step   12

OK → END (FRONT DOOR ECU LH IS DEFECTIVE)
